Four Point Contact Ball Bearings

What is a four-point contact ball bearing?

A four-point contact ball bearing is a single-row angular contact ball bearing with specially shaped raceways that allow it to carry axial loads in both directions. In a standard angular contact ball bearing, each ball touches the inner and outer rings at two points, so the bearing can only support thrust from one side. In a four-point contact ball bearing, the raceways are ground in a “gothic arch” profile, made up of two curves that meet at the centre. This gives each ball up to four possible contact points with the rings, two on the inner ring and two on the outer ring, so the bearing can take thrust from either direction using just one row of balls.

To make room for as many balls as possible, the inner ring is normally split into two halves. This allows the bearing to be assembled with a full complement of balls and a strong cage, giving high load capacity in a compact width.

A four-point contact ball bearing is made up of four main parts:

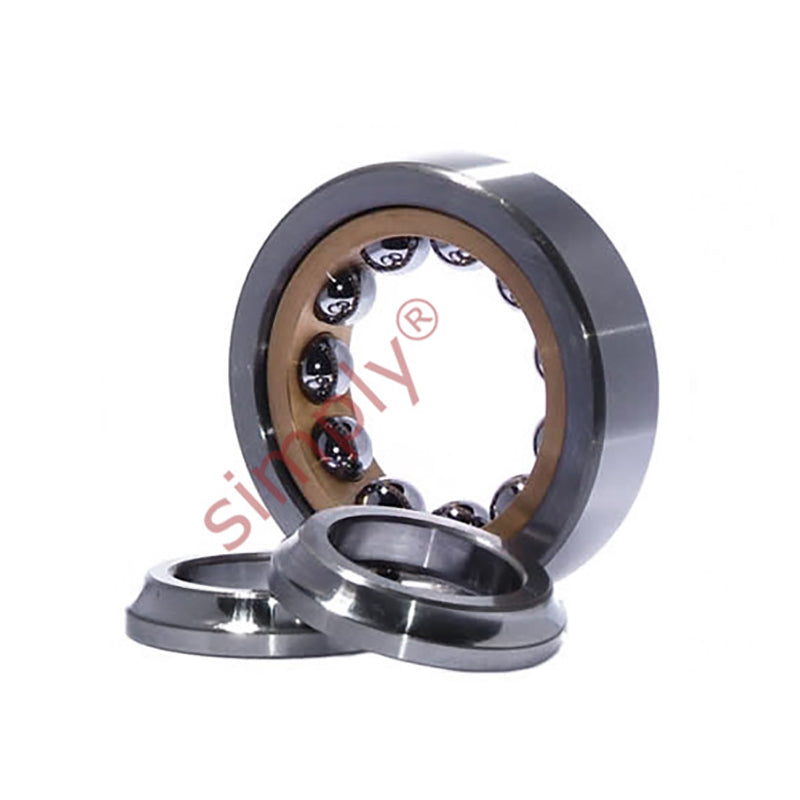

  • Outer ring - a one-piece ring with a gothic arch raceway, often with locating slots to stop it turning in the housing
  • Two-piece inner ring - two inner ring halves that together form the inner gothic arch raceway
  • Balls - in a single row of balls that carry the load in either axial direction
  • Cage - keeps the balls evenly spaced and guides them, often made from machined brass, polyamide, or high-performance polymer

Key features:

  • Axial loads in both directions - one bearing can take thrust from either side, replacing a pair of single-row angular contact ball bearings
  • Combined loads - can carry radial loads as well, but works best where the axial load is the main load
  • Contact angle - usually 35 degrees, giving high axial load capacity
  • Compact design - supports two-direction thrust in the width of a single row bearing, saving space and weight
  • Separable design - the outer ring with the ball and cage assembly can be mounted separately from the two inner ring halves, making installation easier
  • High speed capability - suitable for relatively high speeds when properly loaded and lubricated
  • Wide size range - from small industrial sizes up to large bearings, with very large four-point contact designs also used as slewing bearings

In simple terms, a four-point contact ball bearing is a space-saving bearing that holds a shaft firmly in place along its length, resisting thrust from either side while also allowing smooth rotation.

Why are four-point contact ball bearings essential?

Four-point contact ball bearings are essential wherever a shaft needs to be located axially in both directions, but space is limited. Many machines, such as gearboxes, pumps, and compressors, produce axial forces that can change direction during operation. Traditionally, this would require two angular contact ball bearings mounted as a pair, or a combination of thrust and radial bearings. A four-point contact ball bearing can often do the same job with a single, narrower bearing.

Their main benefits are:

  • Two-direction axial support - one bearing locates the shaft against thrust from either side
  • Space-saving - they take up less axial space than a pair of angular contact bearings, allowing shorter, lighter shafts and housings
  • High axial load capacity - the 35-degree contact angle and large number of balls allow them to carry heavy thrust loads
  • Precise axial positioning - they keep the shaft accurately located, which is important for gears, impellers, and rotors
  • Fewer components - a single bearing replaces two, which simplifies design, assembly, and stock holding
  • Good speed performance - suitable for relatively high speeds, especially when used as a dedicated thrust bearing
  • Easy mounting - the separable design lets the parts be fitted separately, which is helpful in tight spaces
  • Works well with radial bearings - they are often paired with a cylindrical roller bearing, which carries the radial load while the four-point contact ball bearing handles the thrust

These qualities make four-point contact ball bearings important in many demanding applications, including:

  • Industrial gearboxes - where helical gears create axial forces that can change direction
  • Pumps and compressors - locating impellers and rotors against changing thrust loads
  • Aerospace - main shafts of gas turbines and jet engines, as well as helicopter transmissions
  • Marine propulsion - propeller shafts and thrusters
  • Automotive and heavy vehicles - transmissions, differentials, and steering systems
  • Electric motors and generators - locating bearings on high-speed shafts
  • Machine tools - spindles and drives where axial positioning is critical
  • Large rotating equipment - in very large sizes, four-point contact designs are used as slewing bearings in cranes, excavators, wind turbines, and turntables

The main types of four-point contact ball bearings

Four-point contact ball bearings are usually grouped by series, ring design, case material, and special features.

By dimension series:

  • QJ 2xx series - light series, sharing the same boundary dimensions as 62xx deep groove ball bearings and 72xx angular contact ball bearings, for example, QJ 205.
  • QJ 3xx series - medium series, sharing the same boundary dimensions as 63xx deep groove ball bearings and 73xx angular contact ball bearings, for higher load capacity, for example, QJ 305
  • Larger and special series - larger sizes and special dimension series are available for heavy machinery, aerospace, and large gearboxes

By ring design:

  • Split inner ring - the most common design, with two inner ring halves to allow more balls and higher load capacity
  • Split outer ring - less common design where the outer ring is split instead, used in some special applications
  • Outer ring with locating slots - many bearings have two slots in the outer ring, usually marked N2, so a pin in the housing can stop the outer ring from turning. This is important when the bearing is fitted with radial clearance in the housing to act as a pure thrust bearing

By cage design:

  • Machined brass cages - strong and robust, suited to high speeds, high temperatures, and demanding conditions, often marked MA or similar
  • Polyamide cages - lightweight and low friction, suitable for many general applications within their temperature limits
  • High-performance polymer cages - used for high speeds and high temperatures in demanding applications
  • Steel cages - used in some designs for strength and temperature resistance

Special designs and options:

  • High-precision bearings - made to tighter tolerances for aerospace, machine tools, and high-speed equipment
  • Bearings with special clearance - greater or reduced internal axial clearance to suit operating conditions
  • Coated or special steel bearings - for high temperatures, poor lubrication, or corrosive environments
  • Four-point contact slewing bearings - very large diameter bearings, often with gear teeth on one ring, used to support heavy rotating structures

How to choose the right four-point contact ball bearing?

Choosing the right four-point contact ball bearing means matching it carefully to the loads, speed, mounting arrangement, and operating conditions. These bearings perform best under the right load conditions, so understanding the balance of axial and radial loads is especially important. Work through these points in order:

  • Dimensions - match the bore to the shaft diameter and check the outside diameter and width against the housing and available space
  • Load balance - four-point contact ball bearings work best when the axial load is the main load. If the radial load is too high compared with the axial load, the balls can touch the rings at three or four points at once, increasing friction, heat, and wear. As a general guide, many manufacturers recommend that the axial load should be significantly greater than the radial load, so check the catalogue limits
  • Pure thrust arrangement - where radial loads are significant, it is common to use the four-point contact ball bearing purely as a thrust bearing, with a cylindrical roller bearing or other radial bearing taking the radial load. In this case, the outer ring is mounted with radial clearance in the housing and held by a locating pin through the N2 slots
  • Load size - check the static and dynamic load ratings and choose the 3xx series or larger designs if loads are high
  • Minimum load - make sure there is always enough axial load on the bearing, especially at higher speeds, to prevent the balls from skidding and damaging the raceways
  • Speed - check the speed ratings for the chosen size and cage type, and choose brass or high-performance polymer cages for very high speeds
  • Cage material - choose polyamide for general use within its temperature limits, machined brass for tough conditions and high speeds, or high-performance polymers for extreme temperatures and speeds
  • Internal clearance - check whether standard axial clearance is suitable or whether a greater or smaller clearance is needed for the fits, speed, and operating temperature
  • Lubrication - choose grease for simpler applications and moderate speeds, or oil for higher speeds, higher temperatures, and better heat removal
  • Precision - for aerospace, machine tools, and high-speed equipment, choose higher precision classes
  • Environment - consider special steels, coatings, or seals in the surrounding design for high temperatures, contamination, or corrosive conditions
  • Standards and brand - stay with the same series and a reputable manufacturer to ensure correct dimensions, quality, and interchangeability

FAQ - All you need to know about four-point contact ball bearings

What is the difference between a four-point contact ball bearing and an angular contact ball bearing?

A standard single-row angular contact ball bearing supports axial loads in one direction only, while a four-point contact ball bearing supports axial loads in both directions with a single row of balls.

Can I mix inner ring halves from different bearings?

No, the two halves are matched during manufacture and must always be kept together and mounted the right way round.

Why do they need a minimum load?

Without enough axial load, the balls can skid instead of rolling, especially at higher speeds, which damages the raceways.

Do they need lubrication?

Yes, they need grease or oil. Grease suits moderate speeds and simpler designs, while oil is better for higher speeds and heat removal.

Please click here to view our lubricants range

What causes them to fail?

Common causes include excessive radial load, too little axial load, poor lubrication, contamination, incorrect mounting, mixing inner ring halves, and outer rings turning in the housing.

How do I know when to replace one?

Signs include noise, vibration, overheating, excessive axial play, rough rotation, or visible wear, pitting, or discoloration on the rings and balls.

How do I find the right reference?

Check the marking on the rings, the machine documentation, or the manufacturer’s catalogue. If the marking is worn, measure the bore, outside diameter, and width, note any slots in the outer ring, and ask our sales team to identify it.
