Tapered Roller Bearing Cones
What is a tapered roller bearing cone?

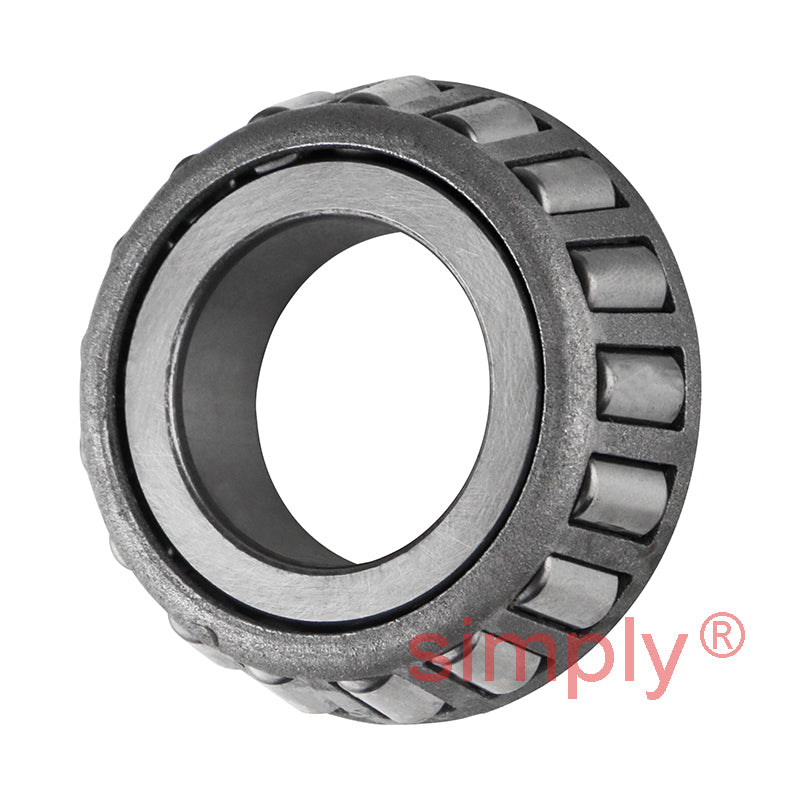

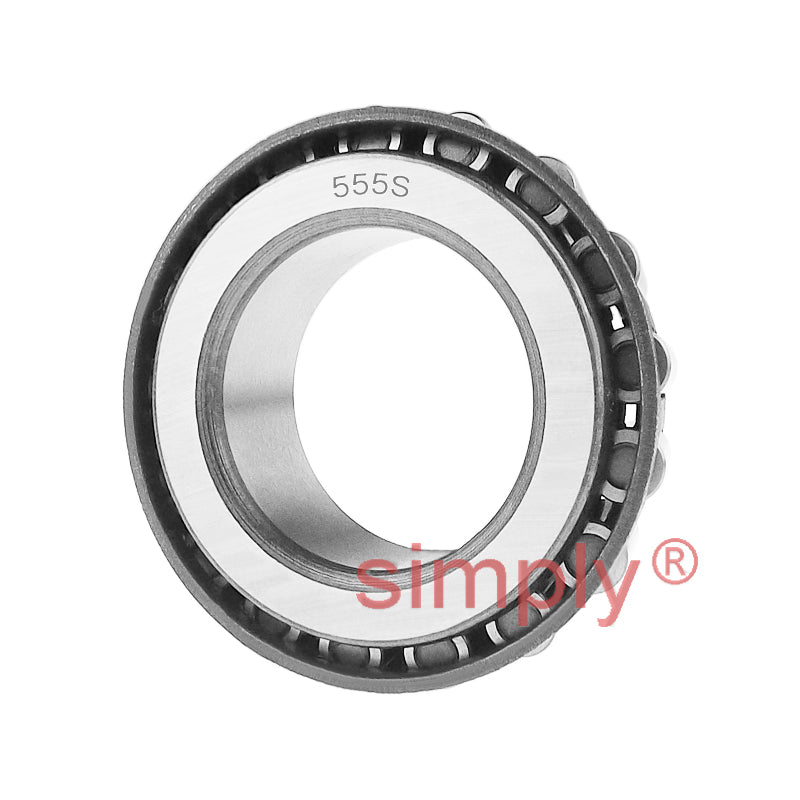

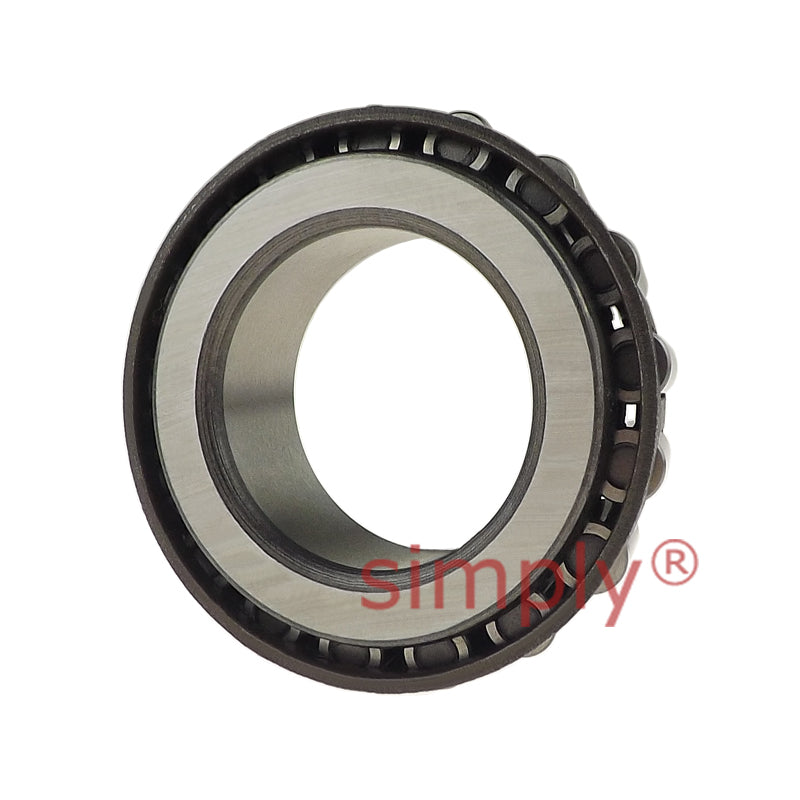

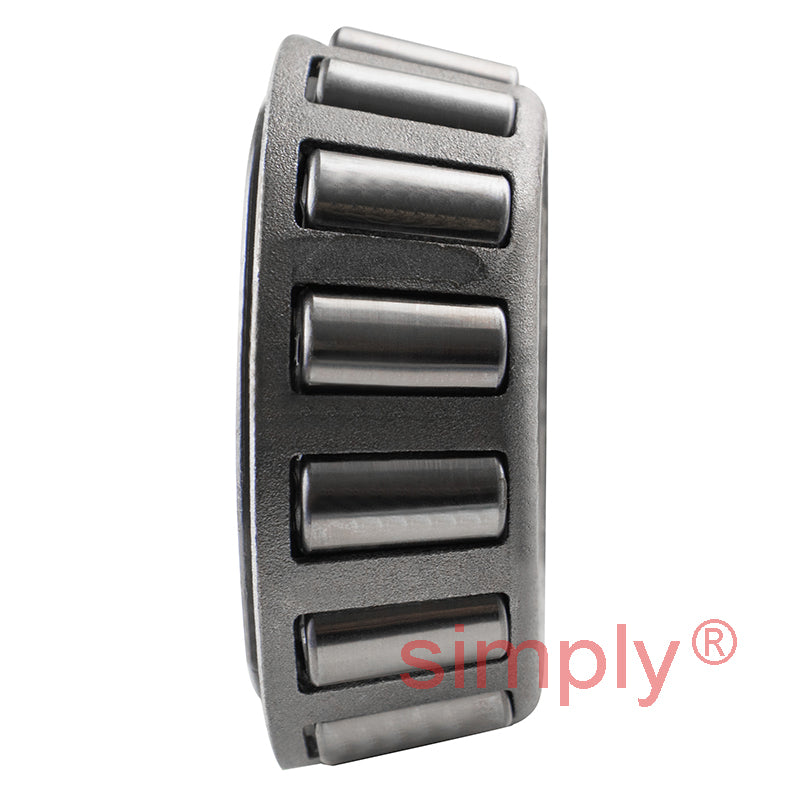

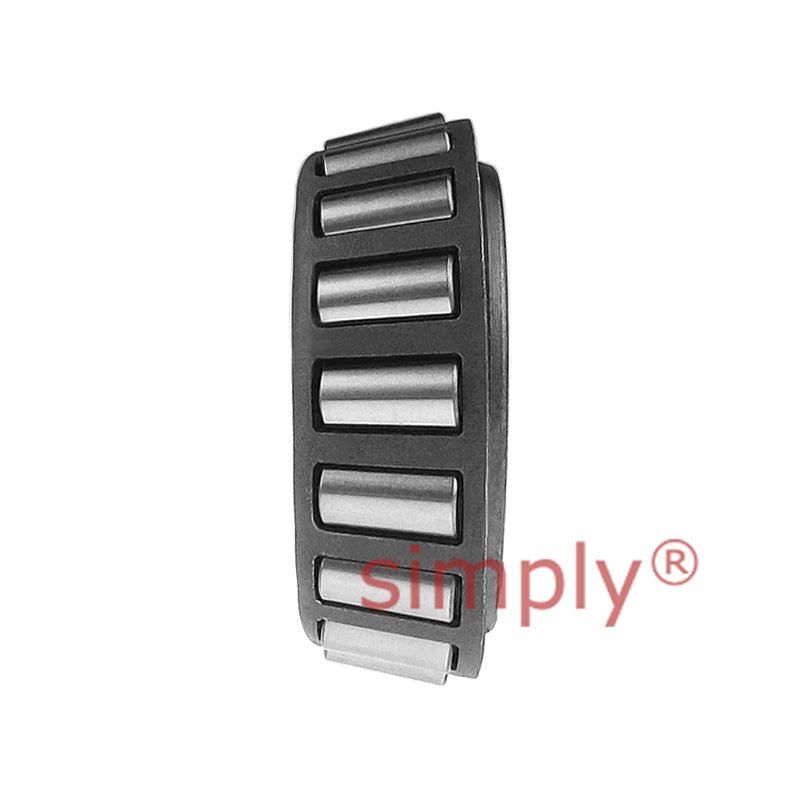

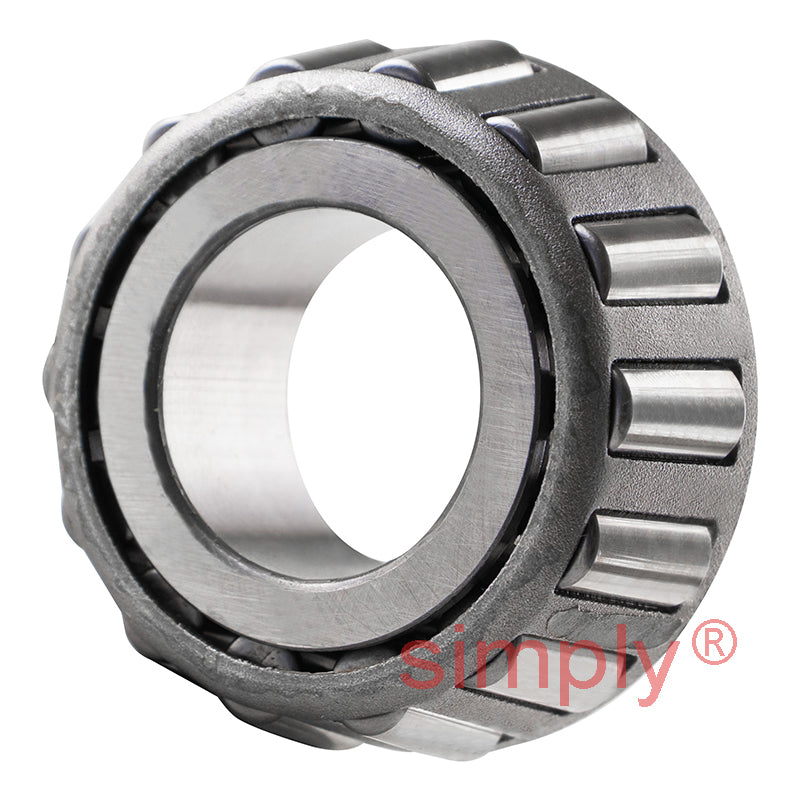

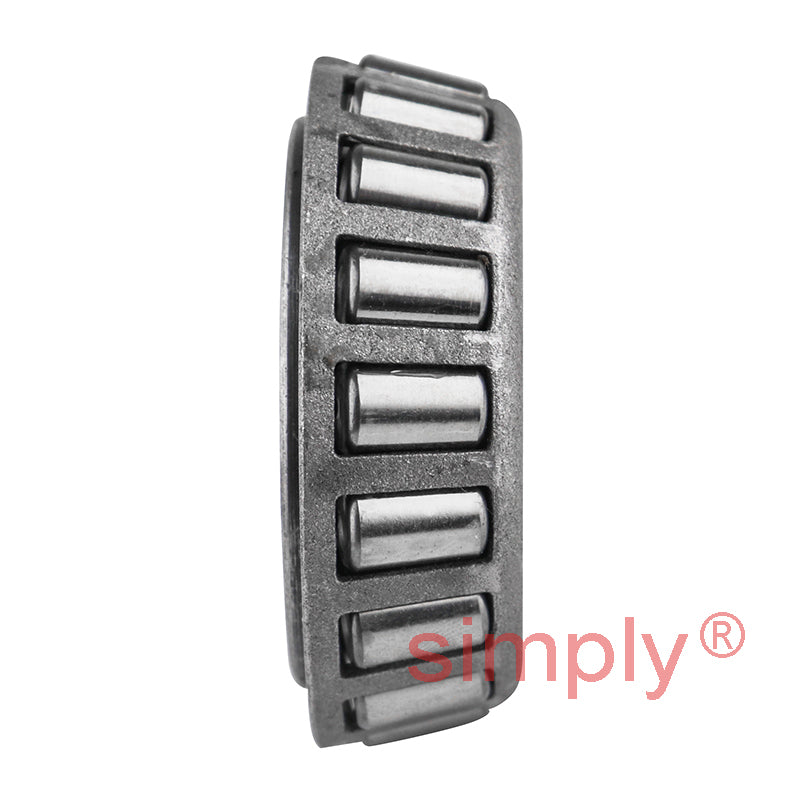

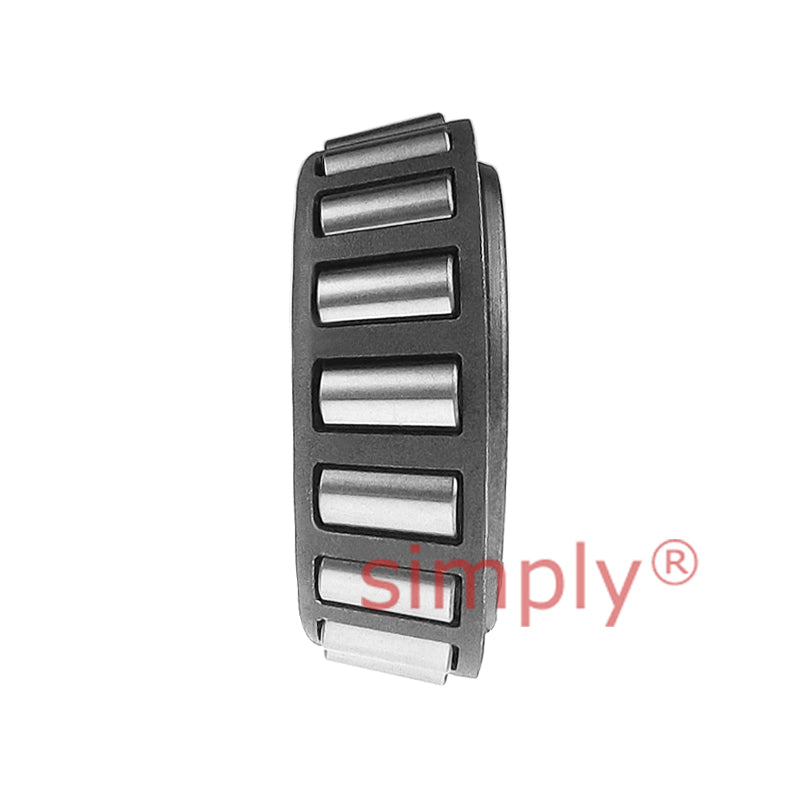

A tapered roller bearing cone is the inner part of a tapered roller bearing. It is made up of the inner ring, the tapered rollers, and the cage, all held together as one assembly. The cone fits onto the shaft or axle, and the rollers run against the raceway of the matching cup, which is fitted into the housing. Together, the cone and cup make a complete tapered roller bearing.
A standard cone assembly has three main parts:
- The inner ring, which has a tapered raceway and fits onto the shaft
- The tapered rollers, which run between the inner ring and the cup
- The cage, which keeps the rollers evenly spaced and holds them on the inner ring.
The inner ring has a large rib at its wider end.
- The large ends of the rollers press against this rib, which guides them and carries the axial load.
- A smaller rib at the narrow end, together with the cage, stops the rollers falling out, so the cone stays together as one unit when it is handled and fitted.
Inner rings and rollers are made from hardened chrome steel (grade 52100) or case-hardened steel, and cages are most commonly pressed steel. On inch bearings, cones and cups are sold under their own part numbers, so a cone must always be matched to the correct cup.
Why are tapered roller bearing cones essential?
The cone carries the rollers and transfers the load from the shaft into the bearing, so it does most of the work in a tapered roller bearing. Because the cone and cup are separate, the cone can be bought on its own and fitted onto the shaft or axle, while the cup is fitted into the housing. This makes servicing wheel hubs and gearboxes much simpler.
Cones for standard bearings are made to internationally standardised dimensions. So a cone of a given part number has the same bore, width, and raceway angle, regardless of which reputable manufacturer makes it, and will match a cup of the same series from another maker.
Typical applications include:
- Car, van, and trailer wheel hubs
- Truck and agricultural axles
- Gearboxes and differentials
- Industrial gear drives
- Pumps and compressors
- Construction and mining equipment
- Machine tool spindles
- Rail axleboxes
The main types of tapered roller bearing cones
- Single cones - These are the standard design and by far the most common. They have one row of rollers and match a single cup.
- Double cones - These have two rows of rollers on one inner ring and are used with two cups to make a double-row bearing. They carry axial loads in both directions.
- Cones with a modified bore or face - Some cones are made with a different bore size, bore tolerance, or backface radius to suit a particular shaft or vehicle, while still matching a standard cup. These usually have a letter added to the part number.
- Inch cones - These are sold under their own part numbers, separate from the cup. They are the most common type bought on their own, especially for wheel and axle bearings.
- Metric cones - Most metric tapered roller bearings are sold as a complete bearing, but metric cones and cups made to ISO dimensions are also available separately in some ranges.
How to choose the right tapered roller bearing cone?
- Matching cup - The cone must match the cup it runs in. On inch bearings, check the cone and cup part numbers are a matched pair, as cones with the same bore can have different raceway angles.
- Size and dimensions - The bore must suit the shaft or axle, and the width must suit the space available. Measure the old cone, or check the shaft size, before ordering.
- Exact part number - Cones that look the same can differ in bore, bore tolerance, or backface radius. Match the full part number, including any letters at the end, to make sure the cone sits correctly against the shaft shoulder.
- Load and application - Use a cone from the same series as the original, so the load capacity, contact angle, and fit stay the same. For heavier loads, a heavier series bearing may be needed, which means changing both the cone and the cup.
- Quality - Choose a reputable brand. The precision of the raceway, rollers, and rib has a direct effect on bearing life, noise, and how well the bearing can be adjusted.
Essential references and specialised ranges
How the numbering works:
Inch tapered roller bearings use separate part numbers for the cone and the cup. The letters at the start show the load class, from light to heavy:
EL, LL, L = extra light to light
LM, M = light medium to medium
HM, H = heavy medium to heavy
HH, EH = extra heavy
On many standard inch bearings, cones usually end in 30 to 49, and cups end in 10 to 19. For example:
LM11949 = cone, LM11910 = matching cup
L44649 = cone, L44610 = matching cup
LM67048 = cone, LM67010 = matching cup
A cone and cup are often sold together as a set, using the cone and cup numbers together, such as LM11949/LM11910.
Metric versions made to ISO dimensions use a similar system with a J prefix, such as JLM104948 (cone) and JLM104910 (cup).
Suffixes:
A, B, and other letters after the number = a variation of the standard cone, such as a different bore or backface radius
TD = double cone
Suffix codes vary between manufacturers, so check the supplier’s catalogue for the exact meaning.
FAQ - All you need to know about tapered roller bearing cones
What is the difference between a cone and a cup?
The cone is the inner ring, which comes with the rollers and cage fitted as one assembly, and sits on the shaft. The cup is the outer ring, which sits in the housing or hub. Both are needed to make a complete bearing.
Can I replace just the cone and keep the old cup?
It is not recommended. The rollers wear a running track into the cup, and a new cone in a worn cup will run rough, wear quickly, and fail early. Always replace the cone and cup together as a matched pair.
Are cones from different brands interchangeable?
Yes, a cone of a standard part number has the same dimensions and raceway angle from any reputable manufacturer, so it will match a cup of the same part series. It is still good practice to fit a cone and cup from the same brand.
Do tapered roller bearing cones need lubrication?
Yes. Wheel hub cones should be packed with grease before fitting, working the grease right through the rollers and cage. Gearbox cones are usually oil lubricated. Lubrication protects the rollers, raceways, and rib from wear and corrosion.
How do I fit a tapered roller bearing cone?
On wheel hubs, the cone is usually a sliding fit on a fixed axle and can be pushed on by hand. On rotating shafts, the cone is usually an interference fit and needs to be pressed on, or heated with an induction heater so it expands onto the shaft. Always press on the inner ring face, never on the rollers or cage. Once fitted, adjust the bearing clearance or preload to the manufacturer’s or vehicle maker’s specification.
How do I identify a cone I need to replace?

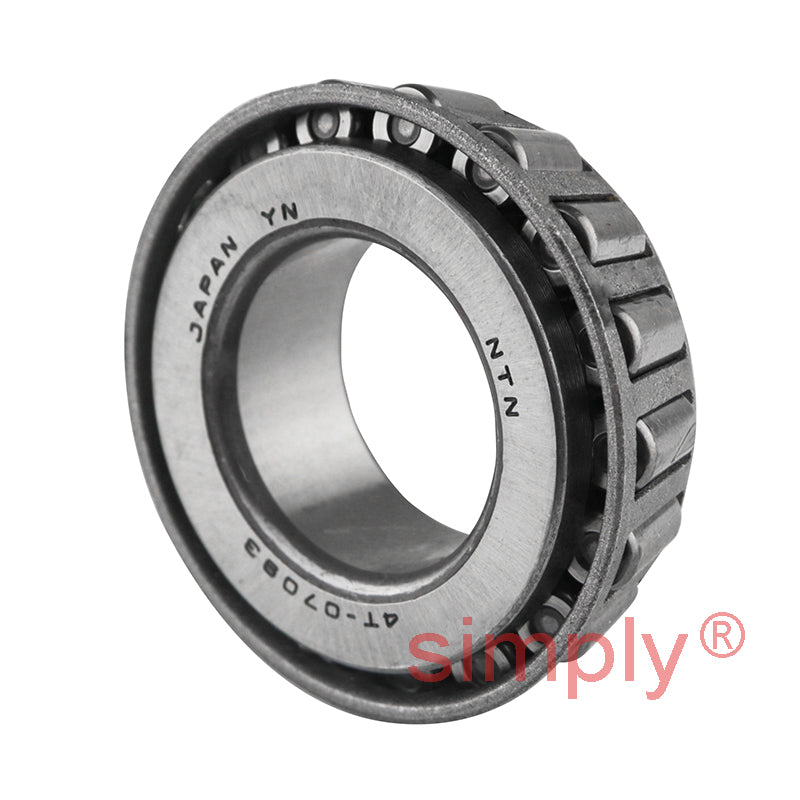

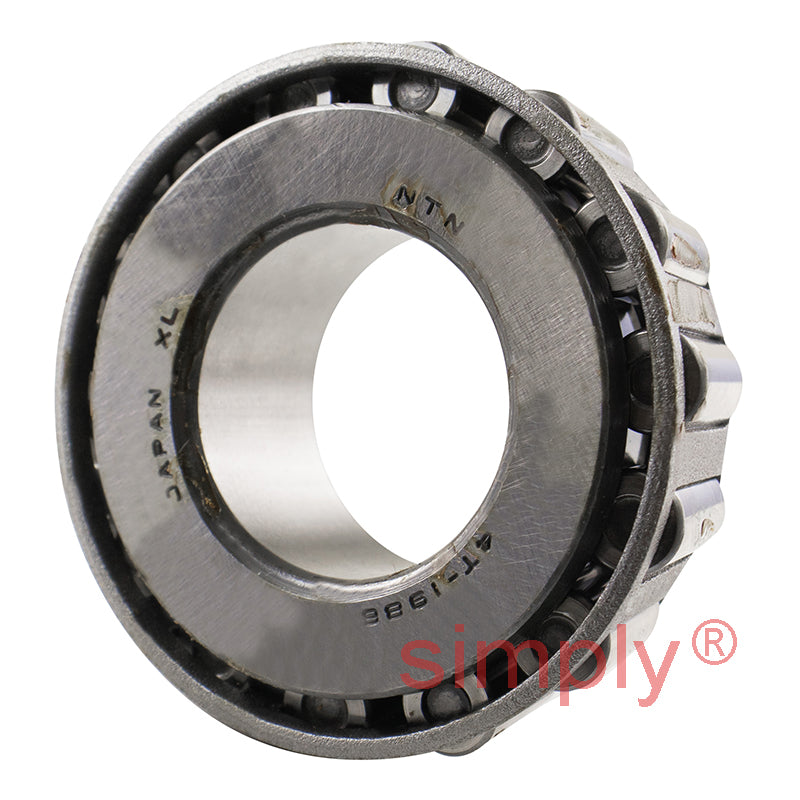

The part number is usually marked on the large face of the inner ring or on the cage. If the markings are worn away, measure the bore and overall width with callipers. It also helps to check the part number on the matching cup, as this identifies the correct cone series.
How can I tell if a cone is worn or damaged?
Warning signs include:
- Rough or uneven rotation when the cone is turned in its cup
- Pitting, flaking, or spalling on the rollers or inner ring raceway
- Blue, brown, or straw-coloured marks from overheating
- Scoring on the large rib or the ends of the rollers
- A bent, cracked, or worn cage, or loose rollers
- Rust or corrosion on the rollers or raceway
