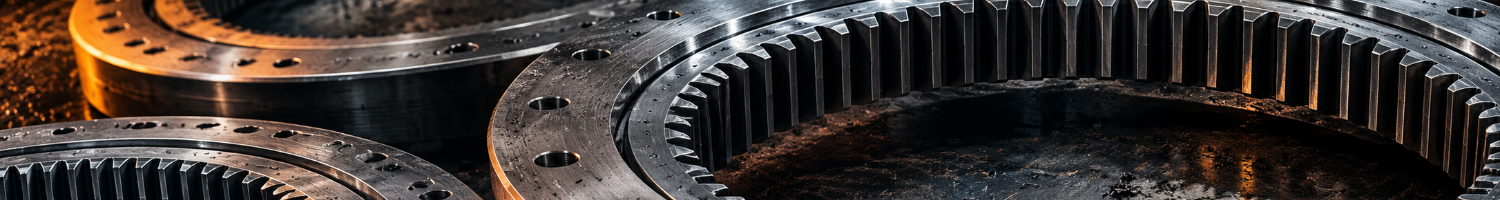

Slewing Ring Bearings

These slewing ring bearings are commonly used in cranes, excavators and wind turbines, to support heavy radial, axial and moment loads.

344 products

Loading filters…

Slewing Ring Bearings

What is a slewing ring?

A slewing ring, also called a slewing bearing or turntable bearing, is a large-diameter rolling bearing designed to carry heavy loads on slowly rotating or oscillating structures. Unlike most bearings, which carry load in one or two directions, a single slewing ring supports axial loads, radial loads and tilting moments all at the same time. That is what lets one bearing hold up the whole upper structure of a crane or excavator while it turns.

A standard slewing ring has five main parts:

  • An inner ring and an outer ring, each with a ring of drilled or tapped holes so they can be bolted directly to the machine structure
  • One or more rows of rolling elements, either balls or rollers, running between the raceways
  • Spacers or cage segments that keep the rolling elements evenly spaced
  • Seals on both sides to keep grease in and dirt and water out
  • Grease nipples for relubricating the raceways.

Most slewing rings also have gear teeth cut directly into one of the rings.

  • The gear can be external (on the outside of the outer ring) or internal (on the inside of the inner ring). A pinion driven by a hydraulic or electric motor meshes with it to turn the structure.
  • Building the gear into the bearing removes the need for a separate gear ring, which saves space and keeps the drive compact.

Instead of being press-fitted onto a shaft and into a housing, a slewing ring is bolted between two flat mounting surfaces, so the bearing and its bolts become part of the machine’s structure. Rings are usually made from quenched and tempered steel such as 42CrMo4 or 50Mn, with the raceways induction-hardened for wear resistance. Sizes range from around 100mm outer diameter to several metres.

Why are slewing rings essential?

They replace what would otherwise be a combination of radial bearings, thrust bearings and a separate gear with a single, compact unit. Because one bearing handles axial, radial and moment loads together, machines can be lighter, lower and simpler to build. The large diameter also gives a wide, stable base for the rotating structure, which is why they are used wherever something heavy has to turn on top of something else.

They are designed for low speeds and intermittent or oscillating movement rather than continuous high-speed rotation. With correct mounting and regular lubrication, a good-quality slewing ring will often last as long as the machine it is fitted to.

Typical applications include:

  • Excavators and other construction machinery
  • Mobile, tower, crawler and marine cranes
  • Wind turbines (yaw and blade pitch bearings)
  • Aerial work platforms and cherry pickers
  • Truck-mounted loader cranes
  • Solar trackers
  • Rotary tables, indexing tables and turntables
  • Packaging and bottling machines
  • Industrial robots and positioners
  • Radar and antenna mounts
  • Medical scanners
  • Tunnel boring machines

The main types of slewing rings

  • Single-row four-point contact ball slewing rings - These are the most common design. Each ball touches the raceways at four points, which lets a single
    row of balls carry axial loads in both directions, radial loads and tilting moments. They are compact, cost-effective and suit most cranes, excavators, platforms and turntables.
  • Double-row ball slewing rings - These have two rows of balls, often of different diameters. They carry higher axial loads than single-row designs and are common where the main load is axial, such as tower cranes and some handling equipment.
  • Single-row crossed roller slewing rings - These have cylindrical rollers arranged at 90° to each other, alternately. Line contact gives them higher stiffness and load capacity than a ball design of the same size, and they can be made to tighter running tolerances, making them well suited to precision applications such as rotary tables and robotics.
  • Three-row roller slewing rings - These have three separate rows of rollers: two carry axial loads in each direction and the third carries radial load. Because each row handles one type of load, they offer the highest load capacity for a given diameter and are used in the heaviest applications, such as large cranes, port equipment and tunnel boring machines.
  • Ball and roller combination slewing rings - These combine a row of rollers for the main axial load with a row of balls for the reverse and radial loads. They are used in some heavy-duty machinery.

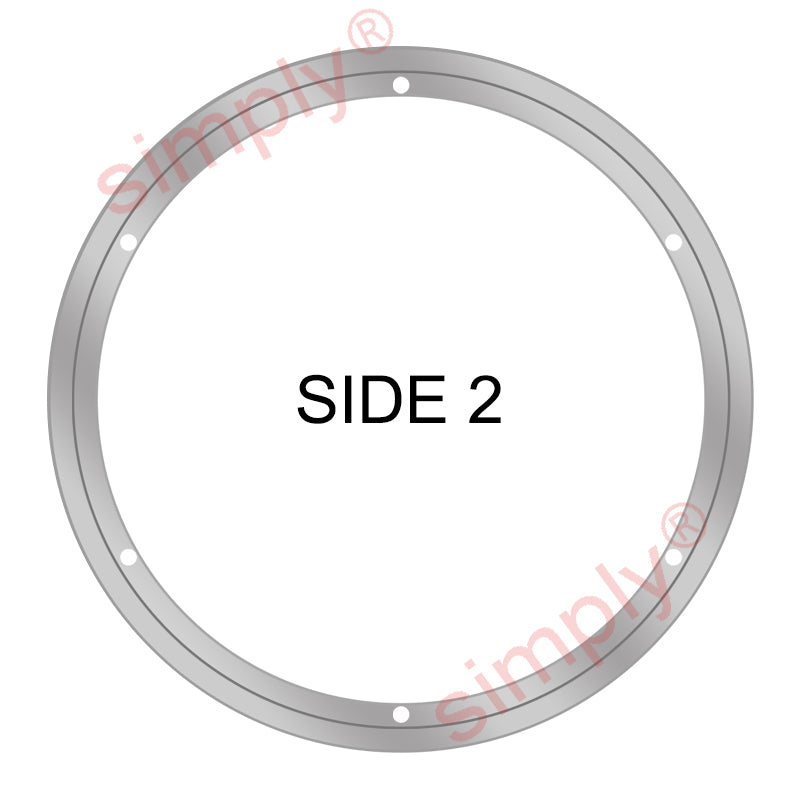

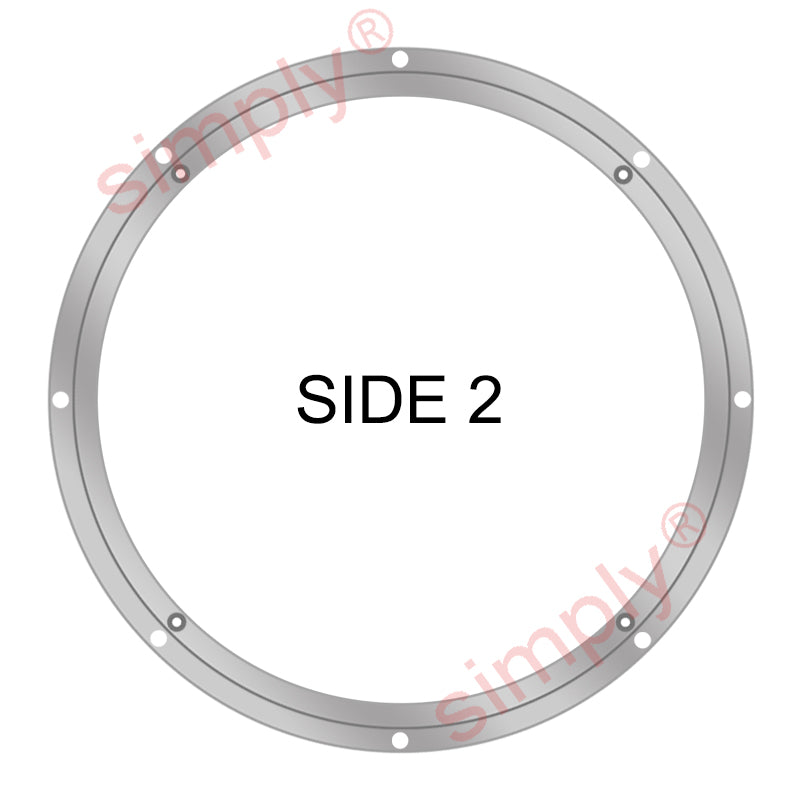

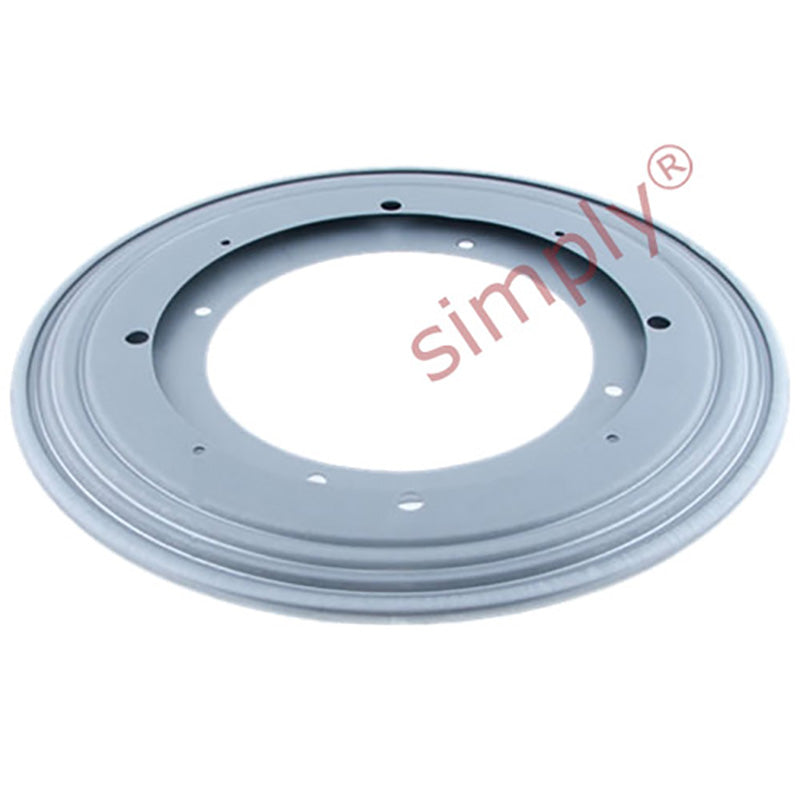

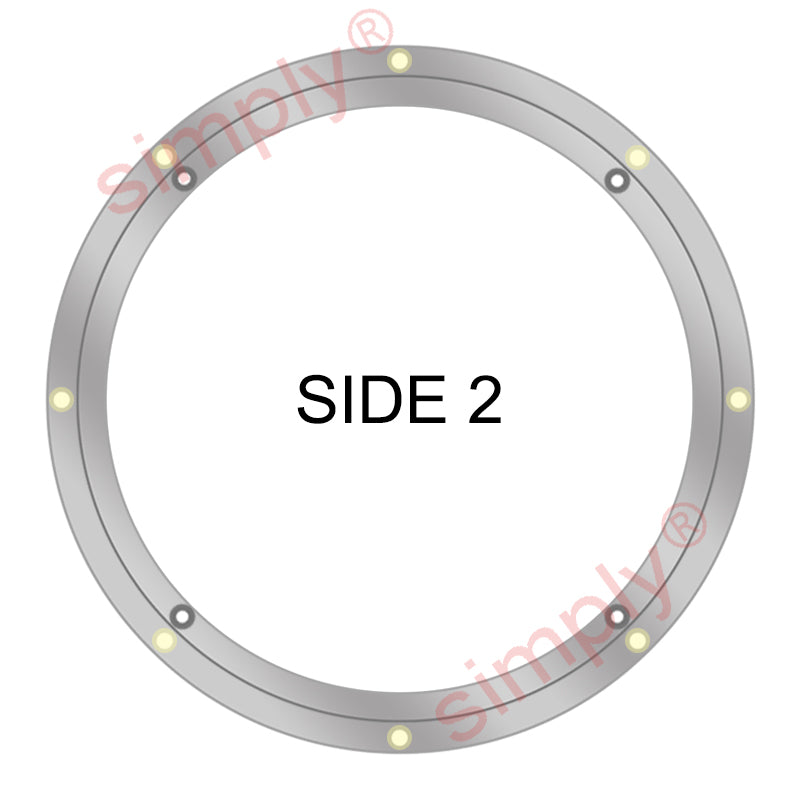

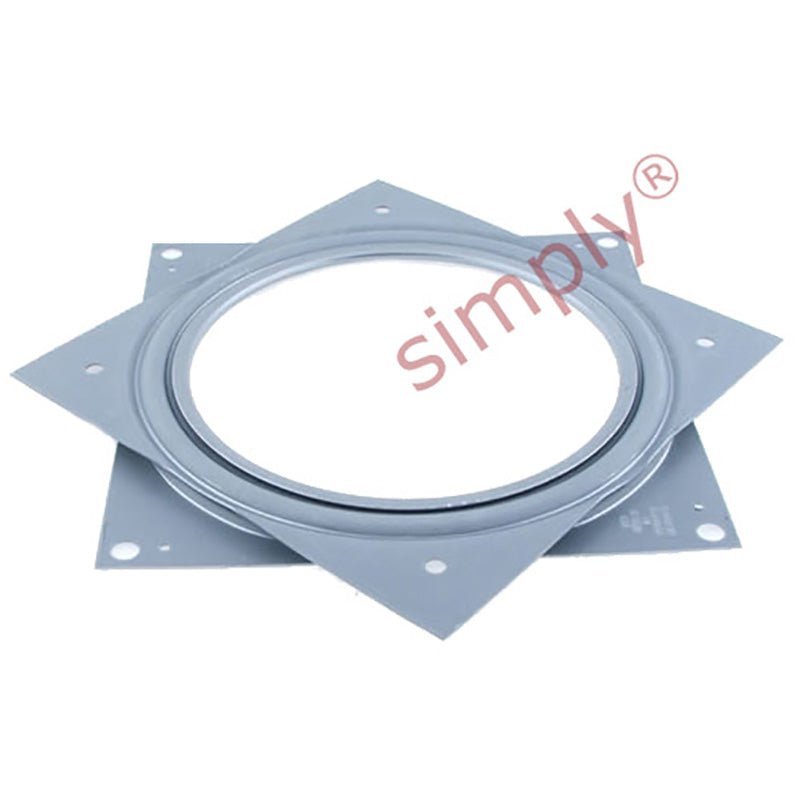

  • Light series slewing rings - These are slimmer, lighter designs for lower loads, such as small turntables, display stands and light handling equipment.

Gear options include:

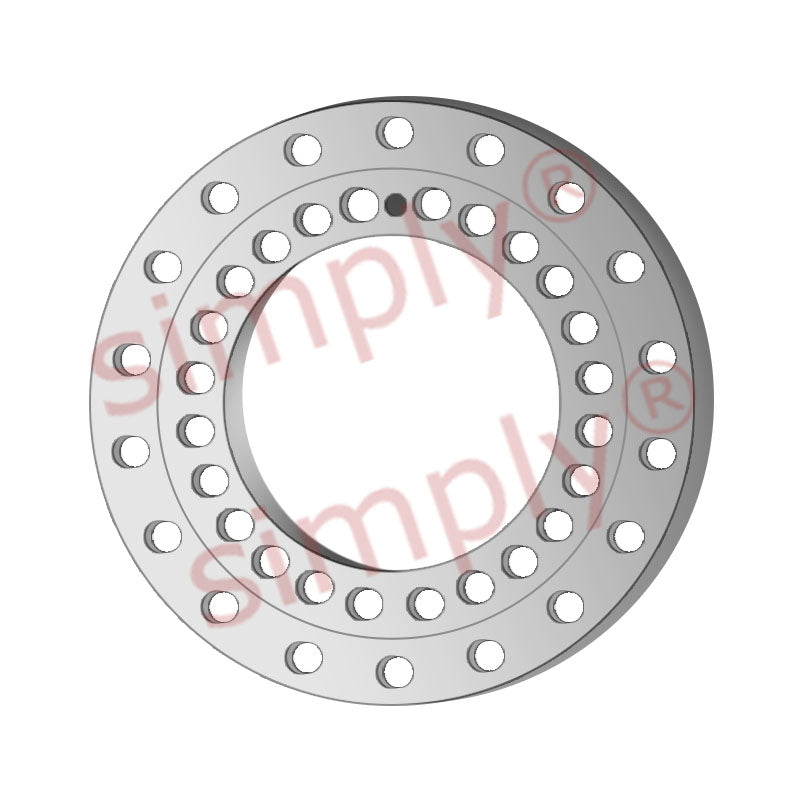

  • Gearless - No gear teeth. The structure is driven by another method or turned by hand.
  • External gear - Teeth on the outer ring. This is the most common arrangement and is easiest to inspect and lubricate.
  • Internal gear - Teeth on the inner ring. The gear and pinion are protected inside the structure, which keeps them cleaner and is often used where space around the outside is limited.

Related products include:

  • Slewing drives - A slewing ring supplied with a worm gear and housing as a complete, ready-to-mount rotating unit. Common on solar trackers, small
    cranes and truck equipment.

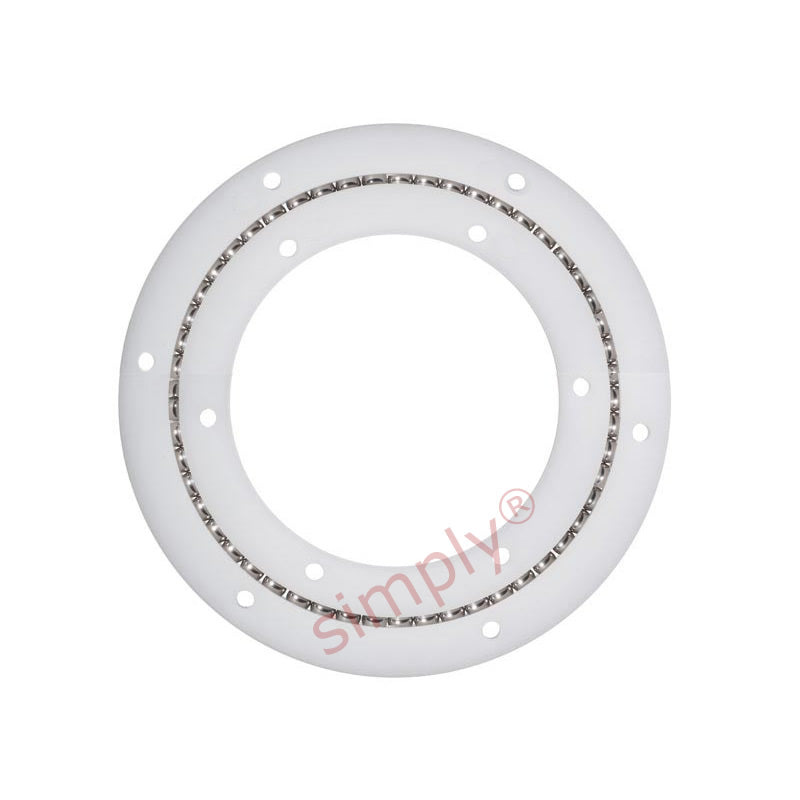

  • Polymer slewing rings - Lightweight, corrosion-resistant and maintenance-free, used for low loads in food, packaging and outdoor applications.

How to choose the right slewing ring?

  • Loads - Work out the axial load, radial load and tilting moment, including the worst case (for example, a crane at full reach). Slewing ring catalogues show capacity as static limiting load curves rather than a single rating, so the load points, multiplied by the service factor for your application, must fall below the curve for the bearing. Bolt capacity is checked the same way.
  • Size and mounting - Check the outer diameter, inner diameter and overall height, along with the bolt hole pitch circle diameters, number of holes and bolt size. The mounting surfaces must be flat, rigid and machined. A structure that flexes or is out of flat will overload parts of the raceway and shorten bearing life.
  • Gear - Decide whether you need no gear, an external gear or an internal gear. The gear module, number of teeth and tooth strength must suit the pinion and the drive torque. Hardened teeth are available for heavier duty.
  • Speed and duty - Slewing rings are designed for slow rotation. Check the operating speed and how often the bearing turns, especially for continuous rotation, which may need a different design or lubrication.
  • Clearance and precision - Standard slewing rings have a small internal clearance. Precision applications such as robotics or machine tools may need reduced clearance or preload, usually from a crossed roller design.
  • Environment - Consider seal type, corrosion protection (such as zinc spraying or painting) and operating temperature for outdoor, marine, dusty or wet conditions.

Essential references and specialised ranges

How the numbering works:

There is no single international numbering system for slewing rings, and many manufacturers use their own references. A widely used format, based on the Chinese JB/T 2300 standard, looks like this: 011.25.500

The first two digits identify the structure type: 01 is single-row four-point contact ball, 02 is double-row ball, 11 is single-row crossed roller, and 13 is three-row roller.

The third digit identifies the gear: 0 = no gear, 1 = external gear (small module), 2 = external gear (large module), 3 = internal gear (small module), 4 = internal gear (large module).

The middle number is the ball or roller diameter in mm, so 25 = 25mm.

The last number is the raceway centre diameter in mm, so 500 = 500mm.

Because references vary between manufacturers, always confirm the full dimensions before ordering a replacement.

Key dimensions:

OD = outer diameter

ID = inner diameter

H = overall height

Bolt holes = number, diameter and pitch circle diameter, for both the inner and outer rings

Gear = internal or external, module and number of teeth

FAQ - All you need to know about slewing rings

Why are they called “slewing” rings?

To “slew” means to turn or swing around a fixed point. The term comes from cranes, where slewing describes the upper structure rotating on its base. A slewing ring is the bearing that makes that movement possible.

What is the difference between a slewing ring and a standard bearing?

A standard bearing usually sits on a shaft and in a housing and runs at higher speeds, carrying mainly radial or mainly axial load. A slewing ring has no shaft. It is bolted directly between two parts of a structure, runs slowly, and carries axial, radial and tilting moment loads together. It often has a gear built in as well.

Do slewing rings need lubrication?

Yes. The raceways should be regreased through the grease nipples at regular intervals, while slowly turning the bearing so the grease spreads evenly around the full circumference. The gear teeth also need their own lubrication. Intervals depend on the application. Many manufacturers suggest roughly every 100 operating hours, with more frequent greasing in dusty, wet, or hot conditions.

Can I replace a slewing ring myself?

It is possible, but slewing rings are heavy and the job usually needs lifting equipment, so take appropriate safety precautions. Always fit new bolts of the specified grade, tighten them to the correct torque in a crosswise pattern, and check the mounting surfaces are clean and flat. Most rings have a marked hardness gap (“soft spot”, often stamped “S” or plugged), which should be positioned away from the main load zone. On geared rings, the tooth with the maximum runout is usually marked, often in green, and this is where gear backlash with the pinion should be set.

How do I identify a slewing ring I need to replace?

The reference and serial number are usually stamped on the side or face of one of the rings, or on a nameplate. If the markings are not readable, measure the outer diameter, inner diameter, overall height, bolt hole positions and gear details. Also note the number of teeth and whether the gear is internal or external.

How can I tell if a slewing ring is worn or failing?

Warning signs include:

  • Grinding, knocking or cracking noises when rotating
  • Jerky or uneven rotation, or extra force needed to turn the structure
  • Increased rocking or tilting play in the structure
  • Metal particles or discoloured grease coming out of the seals
  • Damaged or leaking seals
  • Loose or broken mounting bolts

A useful check is to measure the tilting clearance when the bearing is new and repeat it at regular intervals. A steady increase shows raceway wear, and the manufacturer will give a maximum value at which the bearing should be replaced.
