SKU: 050SPZ1-MB

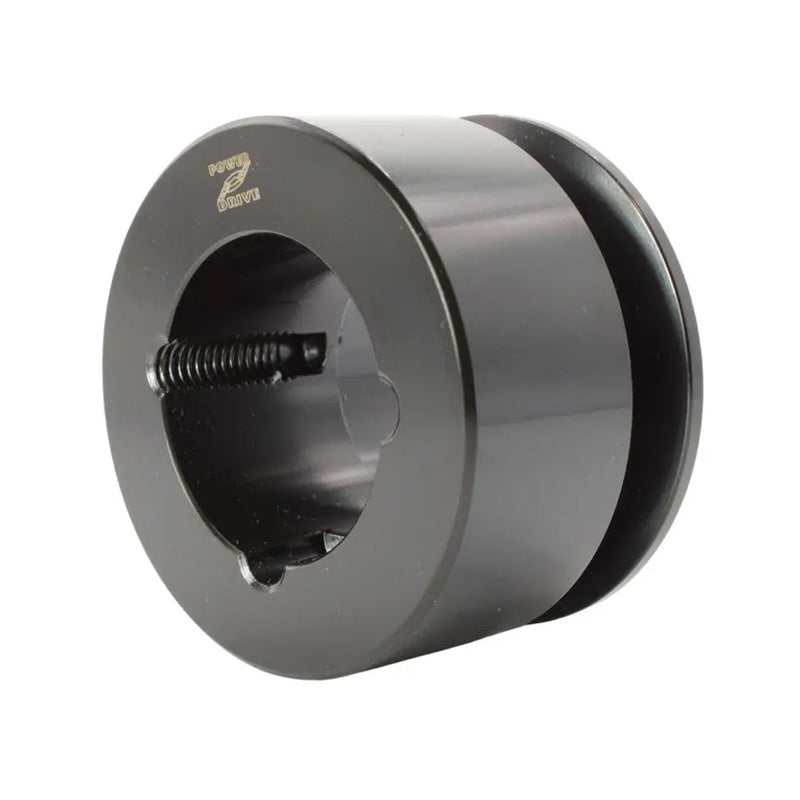

50X1SPZ 50mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
50X1SPZ 50mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
Regular price
€20,68
ex VAT
Regular price
Sale price
€20,68
ex VAT
In stock
Price Break
3+
€15,75
5+
€14,87
9+
€14,69
19+
€14,51
49+
€14,34
74+
€14,16
99+
€13,28
199+
€13,10
249+
€12,92
499+
€12,74
999+
€12,39
Description
Description
|
SPZ Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with Z section and SPZ, XPZ and 3V section V-Belts Benefits: Cost effective replacement |
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 1
- Outside Diameter:
- 54mm
- Pitch Diameter:
- 50mm
- Max Bore:
- 25mm
Technical
Technical

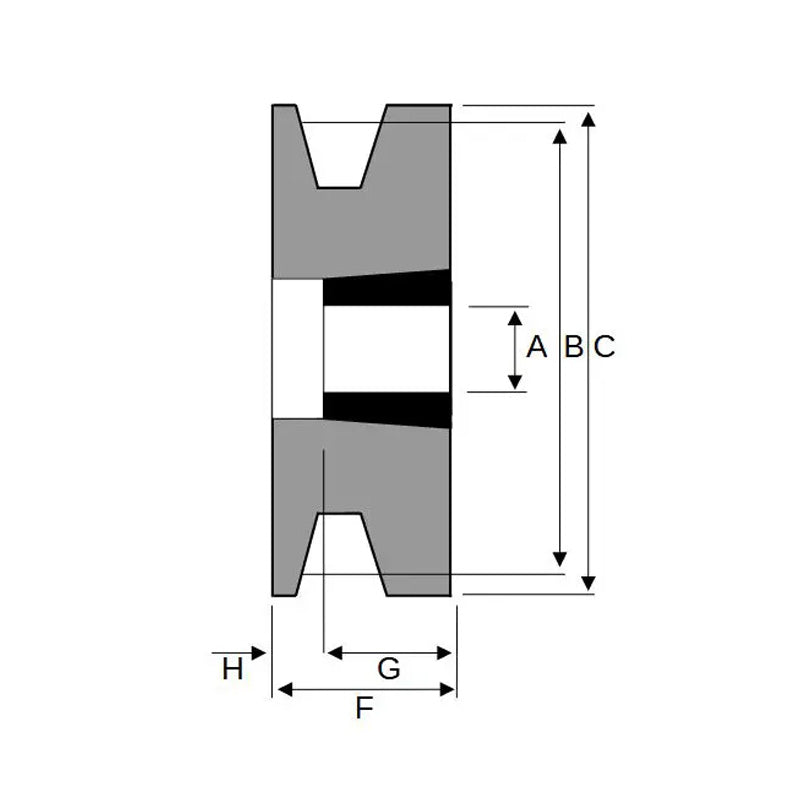

| Number of Grooves | 1 |
|---|---|
| Bush | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=1008+tapered+locking+bush">1008 Click Here</a> |
| Pitch Diameter B | 50mm |
| Overall Outer Diameter C | 54mm |
| Max Bore A | 25mm |
| Overall Sheave Depth F | 10mm |
| Bush Seat Length G | 37mm |
| Weight | 0.356kg |
