SKU: 06B-1-ALPHA-25FT-SEDIS
Sedis Alpha 06B-1 BS Simplex Roller Chain 25FT Length 3/8 inch Pitch - Allow 2-3 Days
Sedis Alpha 06B-1 BS Simplex Roller Chain 25FT Length 3/8 inch Pitch - Allow 2-3 Days
Regular price
€129,45
ex VAT
Regular price
Sale price
€129,45
ex VAT
In stock
Price Break
2+
€109,66
5+
€105,23
10+
€103,02
29+
€99,69
49+
€97,48
75+
€91,94
100+
€77,54
200+
€0,00
250+
€0,00
500+
€0,00
1000+
€0,00
Share this product
Description
Description
|
Sedis Alpha Premium Chains - Resistance to Wear, Fatigue and Tensile Breaking: British and American standard chains with high resistance to wear. Chains are pre-tensioned at 30-45% of the breaking load. Chains 08B-16B/40 to 80 are lubricated with a new high performance wax offering an enhanced anti-wear protection which can work at temperatures from -30 Degrees Celsius to 130 Degrees Celsius. Other chains are pre-lubricated with initial plant lubrication. |
- Brand / Quality:
- Sedis - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical

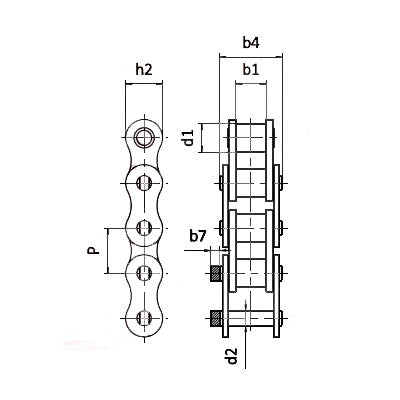

| Pitch P | 9.525mm |
|---|---|
| d1 max | 6.35mm |
| b1 min | 5.77mm |
| b4 max | 13.5mm |
| d2 max | 3.27mm |
| h2 max | 8.23mm |
| b7 min | 2.1mm |
| Ultimate Tensile Strength OSI 606 min | 8.9 kN |
| Ultimate Tensile Strength ALPHA Premium min | 9 kN |
| Ultimate Tensile Strength ALPHA Premium nom | 10.3 kN |
| Mass per meter | 0.4 kg |
