Major Brand 06B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Major Brand 06B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
Regular price
€3,86
ex VAT
Regular price
Sale price
€3,86
ex VAT
Equivalent to: 06B-1-CL
In stock
Price Break
2+
€2,93
5+
€2,77
10+
€2,73
29+
€2,70
49+
€2,67
75+
€2,64
100+
€2,47
200+
€2,44
250+
€2,41
500+
€2,37
1000+
€2,31
Description
Description

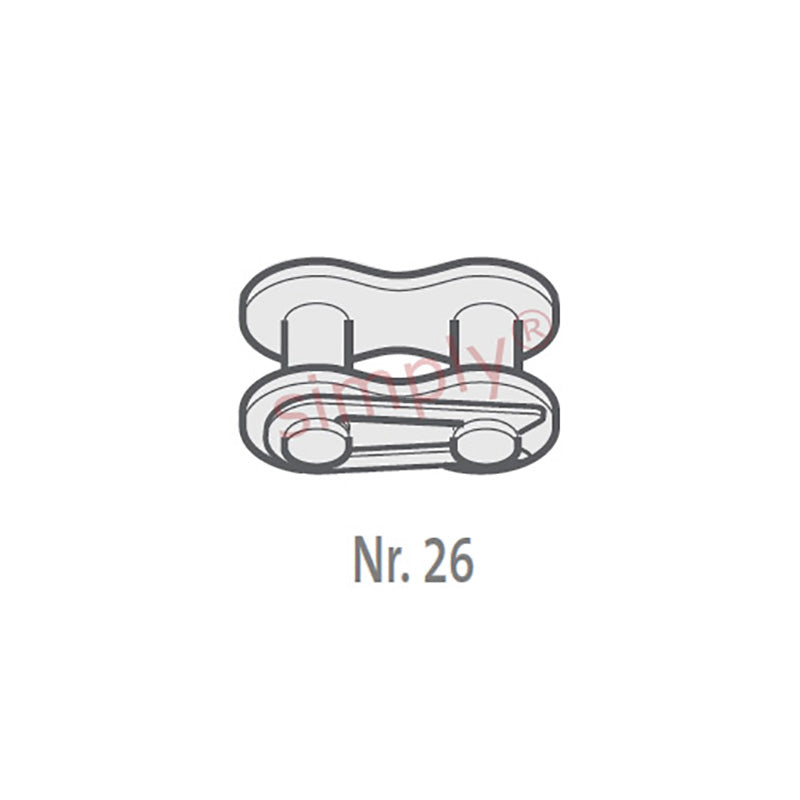

Branded CL / No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 06B-1-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 13.2mm |
| Connecting Link Extension max (J) | 1mm |
| ISO606 Tensile Strength min | 8900 N |
| Weight | 0.001kg/m |
