SKU: 1020-3/4GHLT.RHP

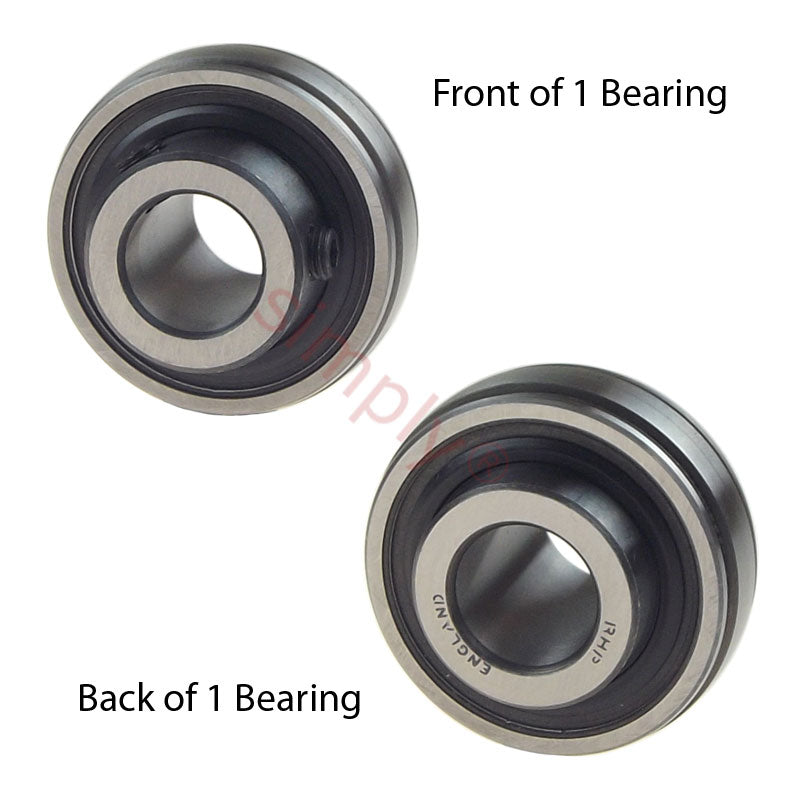

RHP 1020-3/4GHLT Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter High to Low Temperature
RHP 1020-3/4GHLT Spherical Outer Full Width Bearing Insert 3/4 inch Bore 47mm Outside Diameter High to Low Temperature
Regular price
€31,74
ex VAT
Regular price
Sale price
€31,74
ex VAT
In stock
Price Break
10+
€28,25
19+
€26,66
29+
€26,34
39+
€26,03
49+
€25,71
74+
€25,39
99+
€23,81
199+
€23,49
249+
€23,17
499+
€22,85
999+
€22,22
Couldn't load pickup availability
Description
Description
|
RHP 1000 GHLT Series: Full width bearing insert with relubrication facility and a high/low temperature bearing insert. The Bearing has a spherical outer race and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. The GHLT series has a wide operating temperature range from -40 deg to +180 deg C. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, High/Low Temperature, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 47mm
- Style:
- 1020
- Type:
- Spherical Outer
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| D | 1.8504 inch |
| C | 0.551 inch |
| B | 1.219 inch |
| s | 0.502 inch |
| d1 | 1.122 inch |
| M | 0.211 inch |
| r | 0.039 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.13 kg |
