SKU: 1060-60DECG-RHP

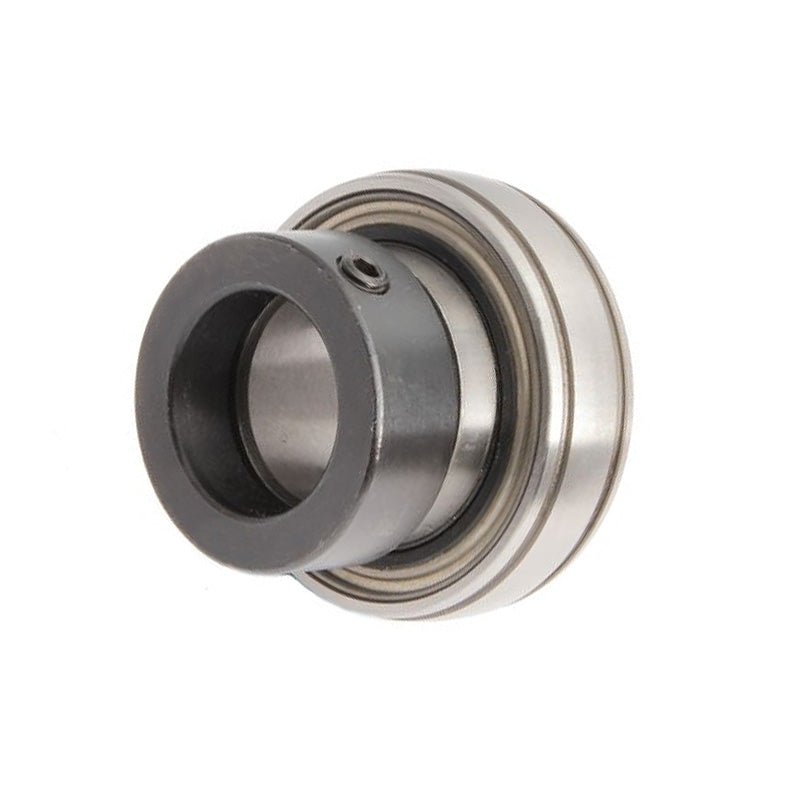

RHP 1060-60DECG Spherical Outer Full Width Bearing Insert 60mm Bore 110mm Outside Diameter
RHP 1060-60DECG Spherical Outer Full Width Bearing Insert 60mm Bore 110mm Outside Diameter
Regular price
€139,30
ex VAT
Regular price
Sale price
€139,30
ex VAT
In stock
Price Break
10+
€106,09
20+
€100,13
30+
€98,94
40+
€97,74
50+
€96,55
75+
€95,36
100+
€89,40
200+
€88,21
250+
€87,02
500+
€85,82
1000+
€83,44
Share this product
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- 1060
Technical
Technical
| Bore | 60mm |
|---|---|
| D | 110mm |
| C | 22mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| r | 1.5mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 1.72 kg |
