SKU: 1065-2.1/2DECG-RHP

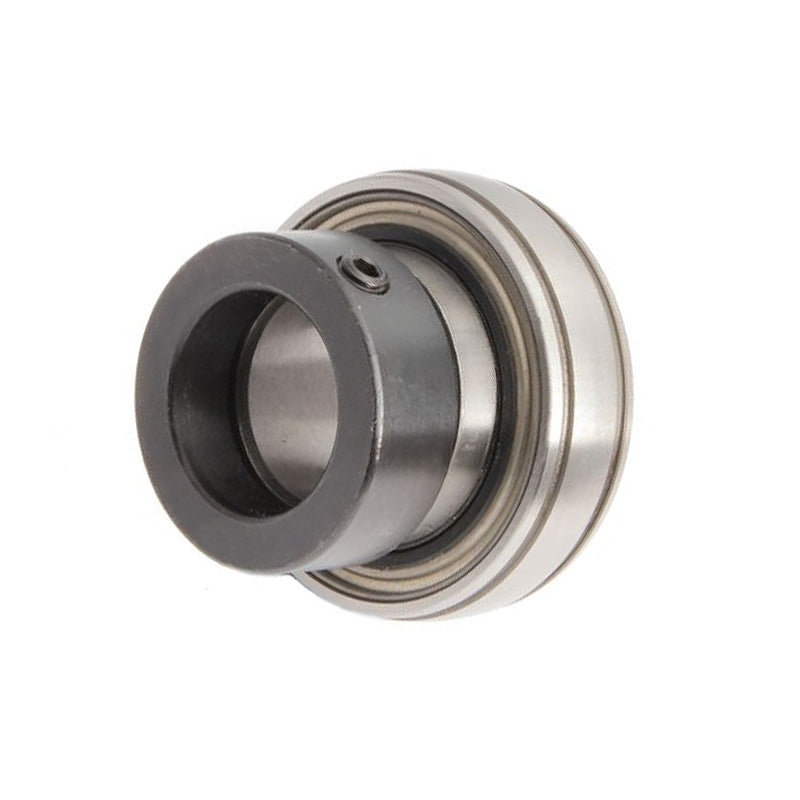

RHP 1065-2-1/2DECG Spherical Outer Full Width Bearing Insert 2-1/2 inch Bore 120mm Outside Diameter
RHP 1065-2-1/2DECG Spherical Outer Full Width Bearing Insert 2-1/2 inch Bore 120mm Outside Diameter
Regular price
€204,36
ex VAT
Regular price
Sale price
€204,36
ex VAT
In stock
Price Break
10+
€155,64
20+
€146,90
30+
€145,15
40+
€143,40
50+
€141,65
75+
€139,90
100+
€131,16
200+
€129,41
250+
€127,66
500+
€125,91
1000+
€122,41
Share this product
Description
Description
|
RHP 1000-DEC-G Series: Full width bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, eccentric collar fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 120mm
- Style:
- 1065
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| D | 4.7244 inch |
| C | 0.906 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.438 inch |
| r | 0.059 inch |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 2.21 kg |
