SKU: 1075-75G-RHP

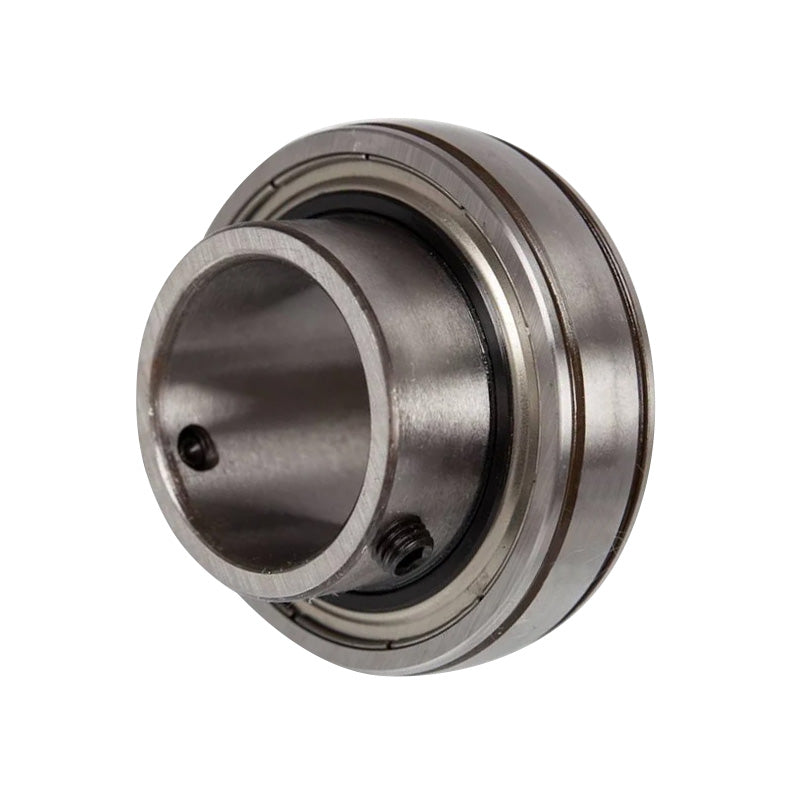

RHP 1075-75G Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter

Name: RHP 1075-75G Spherical Outer Full Width Bearing Insert 75mm Bore 130mm Outside Diameter
Brand: RHP
SKU: 1075-75G-RHP
Price: 179.02 EUR
Availability: InStock

€179,02 ex VAT

Sale Sold out

In stock

Price Break

10+ €136,34

20+ €128,68

30+ €127,15

40+ €125,62

50+ €124,09

75+ €122,55

100+ €114,90

200+ €113,36

250+ €111,83

500+ €110,30

1000+ €107,24

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 130mm
Style:: 1075

Technical

Bore	75mm
D	130mm
C	25mm
B	77.77mm
s	33.37mm
d1	92mm
M	12.75mm
r	1.5mm
Dynamic load Cr	66000 N
Static load Cor	49500 N
Rec max speed	2300 rpm
Weight	2.61 kg
