SKU: 1125-7/8CG-RHP

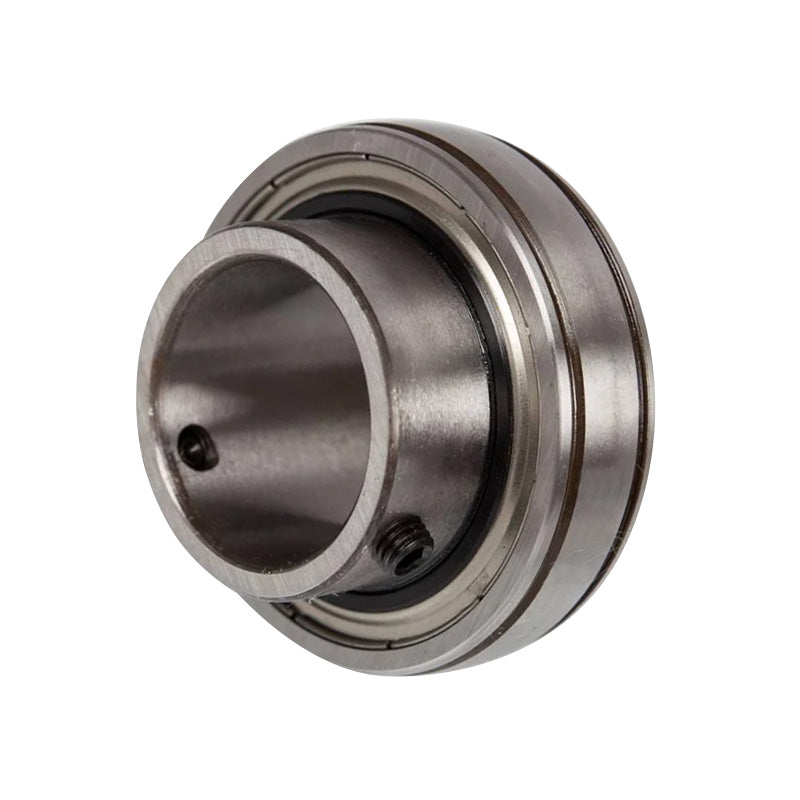

RHP 1125-7/8CG Full Width Snap Ring Grub Screw Bearing Insert 7/8 inch Bore 52mm Outside Diameter
RHP 1125-7/8CG Full Width Snap Ring Grub Screw Bearing Insert 7/8 inch Bore 52mm Outside Diameter
Regular price
€32,01
ex VAT
Regular price
Sale price
€32,01
ex VAT
In stock
Price Break
10+
€24,38
20+
€23,01
30+
€22,73
40+
€22,46
50+
€22,19
75+
€21,91
100+
€20,54
200+
€20,27
250+
€19,99
500+
€19,72
1000+
€19,17
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- 1125
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| D | 2.0472mm |
| D1 | 2.276mm |
| C | 0.75mm |
| C1 | 0.94mm |
| C2 | 0.173mm |
| B | 1.343mm |
| s | 0.564mm |
| d1 | 1.339mm |
| f | 0.44mm |
| M | 0.211mm |
| r | 0.039mm |
| r1 | 0.02mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.31 kg |
