SKU: 1140-40CG-RHP

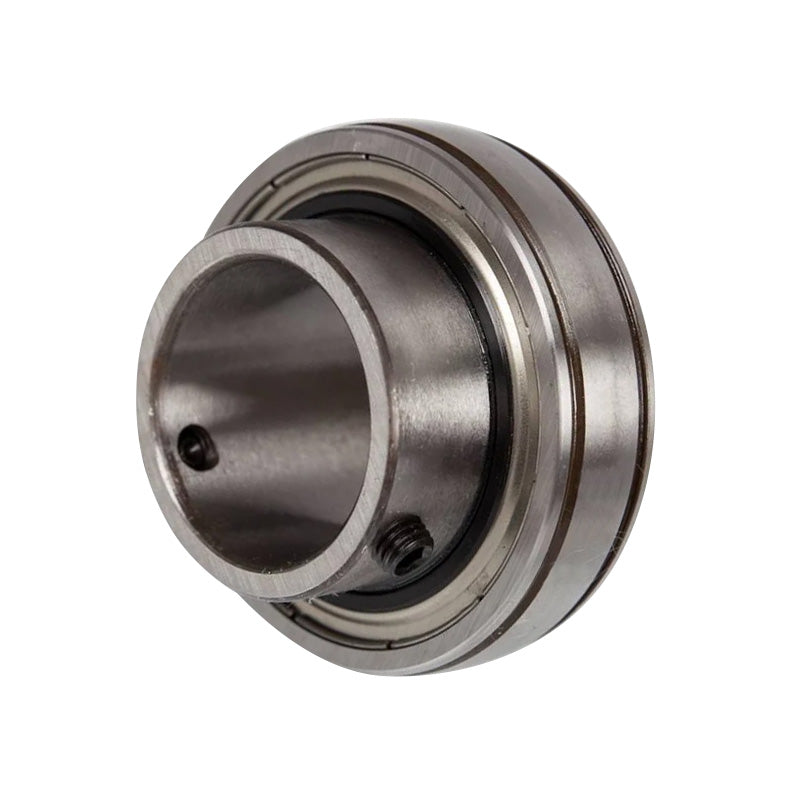

RHP 1140-40CG Full Width Snap Ring Grub Screw Bearing Insert 40mm Bore 80mm Outside Diameter
RHP 1140-40CG Full Width Snap Ring Grub Screw Bearing Insert 40mm Bore 80mm Outside Diameter
Regular price
€50,74
ex VAT
Regular price
Sale price
€50,74
ex VAT
In stock
Price Break
10+
€38,65
20+
€36,47
30+
€36,04
40+
€35,61
50+
€35,17
75+
€34,74
100+
€32,57
200+
€32,13
250+
€31,70
500+
€31,26
1000+
€30,40
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Style:
- 1140
Technical
Technical
| Bore | 40mm |
|---|---|
| D | 80mm |
| D1 | 86.51mm |
| C | 27.78mm |
| C1 | 3.18mm |
| C2 | 6.22mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| f | 1.7mm |
| M | 7.95mm |
| r | 1mm |
| r1 | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 0.91 kg |
