SKU: 1145-45CG-RHP

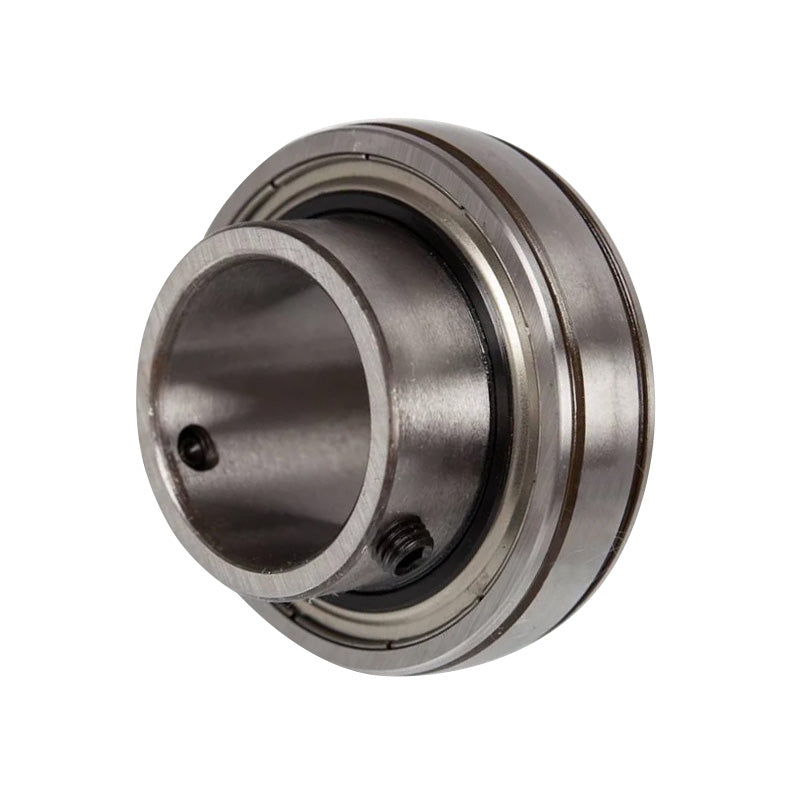

RHP 1145-45CG Full Width Snap Ring Grub Screw Bearing Insert 45mm Bore 85mm Outside Diameter
RHP 1145-45CG Full Width Snap Ring Grub Screw Bearing Insert 45mm Bore 85mm Outside Diameter
Regular price
€57,45
ex VAT
Regular price
Sale price
€57,45
ex VAT
In stock
Price Break
10+
€51,13
19+
€48,26
29+
€47,68
39+
€47,11
49+
€46,53
74+
€45,96
99+
€43,09
199+
€42,51
249+
€41,94
499+
€41,36
999+
€40,22
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- 1145
- Type:
- Parallel Outer
Technical
Technical
| Bore | 45mm |
|---|---|
| D | 85mm |
| D1 | 91.51mm |
| C | 27.78mm |
| C1 | 3.18mm |
| C2 | 6.52mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| f | 1.7mm |
| M | 7.95mm |
| r | 1mm |
| r1 | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 1.05 kg |
