SKU: 1230-1.1/4G-RHP

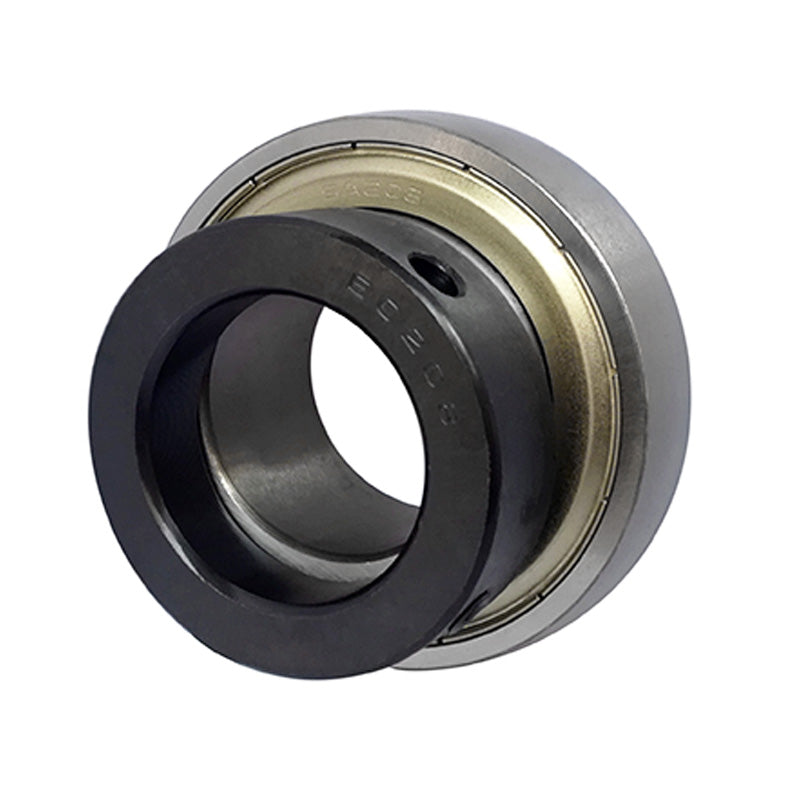

RHP 1230-1-1/4G Spherical Outer Dia Flat Back Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
RHP 1230-1-1/4G Spherical Outer Dia Flat Back Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
Regular price
€33,84
ex VAT
Regular price
Sale price
€33,84
ex VAT
In stock
Price Break
10+
€25,77
20+
€24,32
30+
€24,03
40+
€23,74
50+
€23,45
75+
€23,16
100+
€21,72
200+
€21,43
250+
€21,14
500+
€20,85
1000+
€20,27
Description
Description
|
RHP 1000 G Series: Flat back bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- 1230
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.63 inch |
| B1 | 1.229 inch |
| s1 | 0.356 inch |
| d1 | 1.575 inch |
| M | 0.23 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.32 kg |
