SKU: 1250-50ECG-RHP

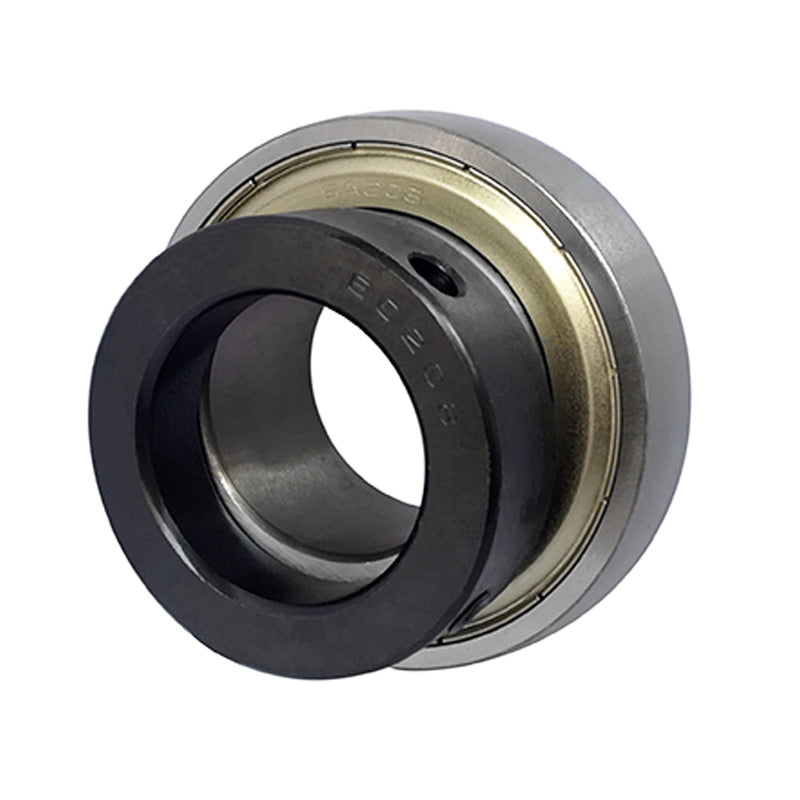

RHP 1250-50ECG Spherical Outside Flat Back Collar Bearing Insert 50mm Bore 90mm Outside Diameter
RHP 1250-50ECG Spherical Outside Flat Back Collar Bearing Insert 50mm Bore 90mm Outside Diameter
Regular price
€61,29
ex VAT
Regular price
Sale price
€61,29
ex VAT
In stock
Price Break
10+
€46,68
20+
€44,06
30+
€43,53
40+
€43,01
50+
€42,49
75+
€41,96
100+
€39,34
200+
€38,81
250+
€38,29
500+
€37,77
1000+
€36,72
Description
Description
|
RHP 1200 ECG Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, re-lubricatable |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Style:
- 1250

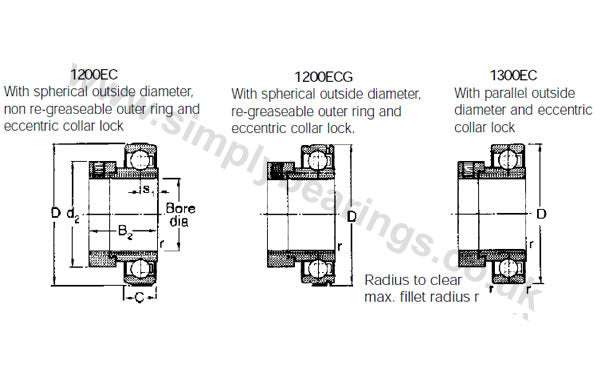

Technical
Technical
| Bore | 50mm |
|---|---|
| D | 90mm |
| C | 20mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 69.85mm |
| r | 1mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 0.98 kg |
