Branded 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Branded 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
€8,58
ex VAT
Regular price
Sale price
€8,58
ex VAT
Equivalent to: 12B-3-OL
In stock
Price Break
2+
€6,53
5+
€6,16
10+
€6,09
29+
€6,02
49+
€5,94
75+
€5,87
100+
€5,50
200+
€5,43
250+
€5,36
500+
€5,28
1000+
€5,14
Description
Description

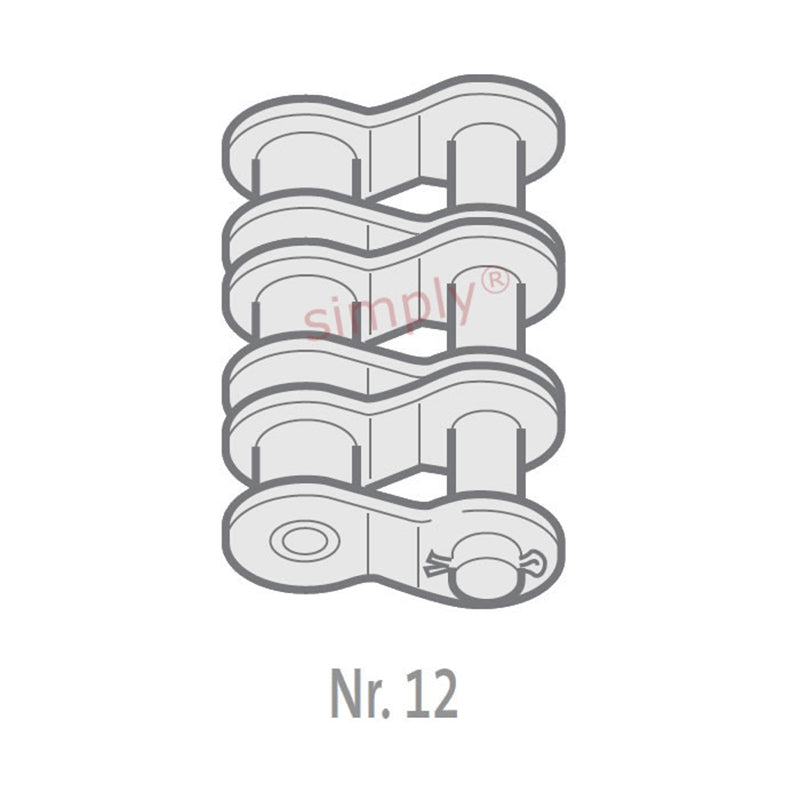

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 12B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H3) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
