SKU: 1726210-2RS1-SKF

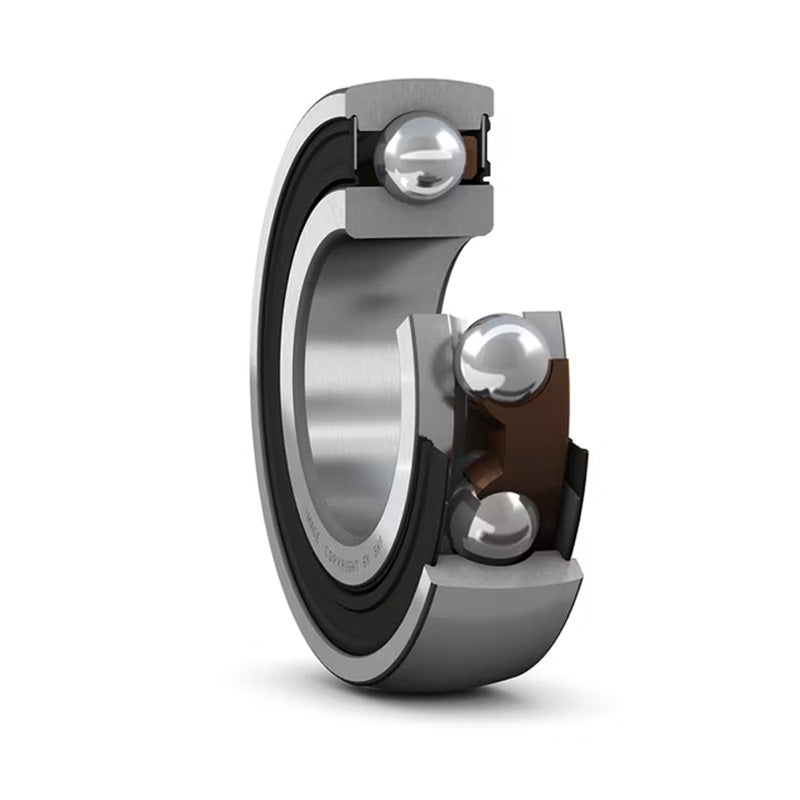

SKF 17262102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x90x20mm
SKF 17262102RS1 Spherical Outside Dia Deep Groove Ball Bearing 50x90x20mm
Regular price
€43,33
ex VAT
Regular price
Sale price
€43,33
ex VAT
In stock
Price Break
10+
€38,56
19+
€36,40
29+
€35,96
39+
€35,53
49+
€35,10
74+
€34,66
99+
€32,50
199+
€32,06
249+
€31,63
499+
€31,20
999+
€30,33
Couldn't load pickup availability
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| B | 20mm |
| d1 | 62.5mm |
| r1r2 min | 1.1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4800 rpm |
| Weight | 0.41 kg |
