SKU: 1726308-2RS-EU

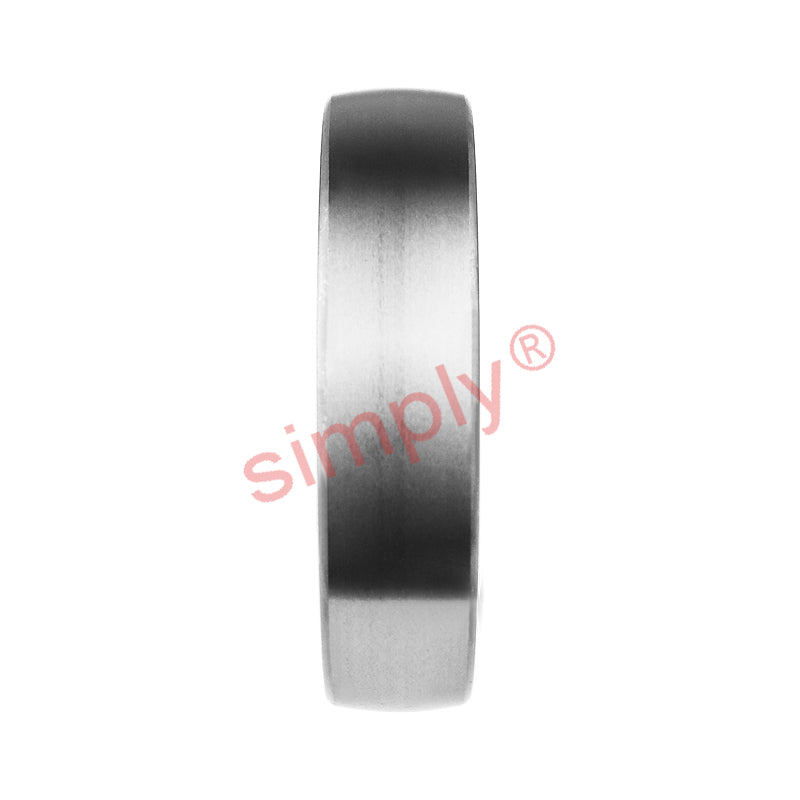

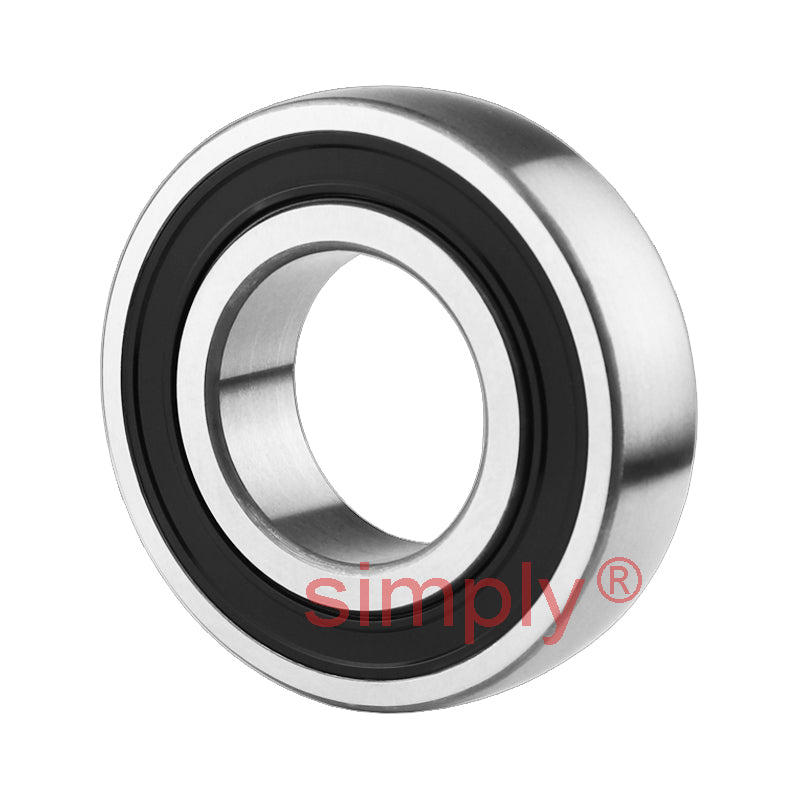

Budget 17263082RS Spherical Outside Dia Deep Groove Ball Bearing 40x90x23mm
Budget 17263082RS Spherical Outside Dia Deep Groove Ball Bearing 40x90x23mm
Regular price
€13,89
ex VAT
Regular price
Sale price
€13,89
ex VAT
Equivalent to: 308NPPB 308NPPU CS308 1726308-2RS1 CB308
In stock
Price Break
10+
€12,36
19+
€11,67
29+
€11,53
39+
€11,39
49+
€11,25
74+
€11,11
99+
€10,42
199+
€10,28
249+
€10,14
499+
€10,00
999+
€9,72
Couldn't load pickup availability
Description
Description
|
172 Series Rubber Sealed Deep Groove Ball Bearings with Spherical Outer Race: Commonly used in conjunction with pressed steel bearing housings or cast iron types these rubber sealed bearings are characterized by their spherical outside diameter. |
Equivalent: 308NPPB 308NPPU CS308 1726308-2RS1 CB308
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| d1 | 56.1mm |
| r1r2 | 1.5mm |
| Dynamic load Cr | 24 kN |
| Static load Cor | 41 kN |
| Fatigue load limit Pu | 1 kN |
| Max speed | 5000 rpm |
| Weight | 0.55 kg |
