SKU: 20207-TVP-C3-MB

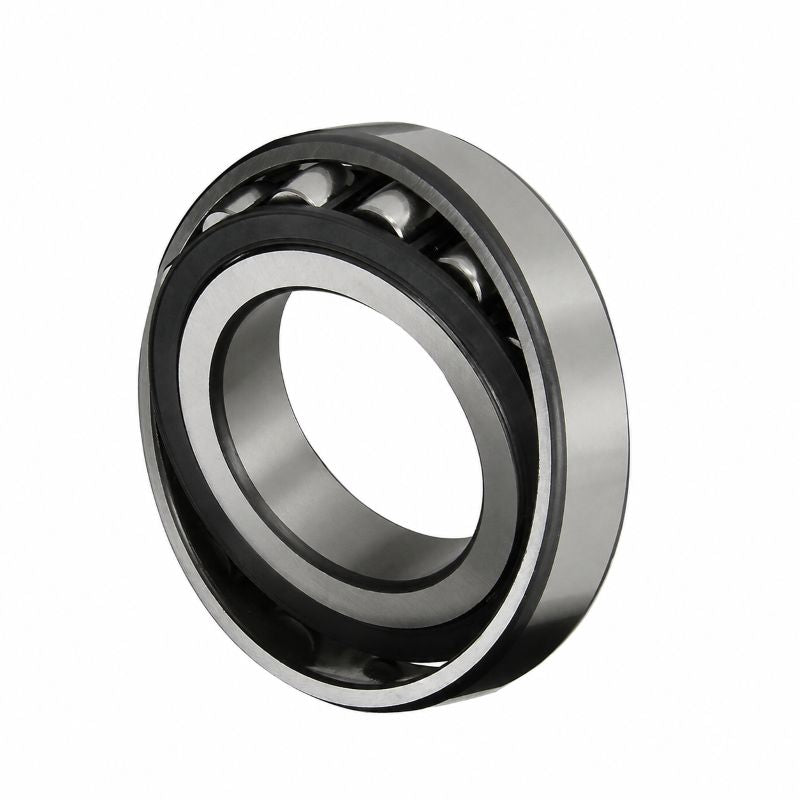

20207TVPC3 Barrel Roller Bearing with Cylindrical Bore 35x72x17mm - Allow 2-3 Days
20207TVPC3 Barrel Roller Bearing with Cylindrical Bore 35x72x17mm - Allow 2-3 Days
Regular price
€144,03
ex VAT
Regular price
Sale price
€144,03
ex VAT
In stock
Price Break
3+
€109,69
4+
€103,53
9+
€102,30
19+
€101,07
29+
€99,83
39+
€98,60
49+
€92,44
59+
€91,21
249+
€89,97
499+
€88,74
999+
€86,28
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Clearance:
- C3
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| r min | 1.1mm |
| D1 | 62.3mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| Dynamic Load Cr | 40500 N |
| Static Load C0r | 43000 N |
| Fatigue limit load Cur | 4900 N |
| Limiting speed nG | 4800 rpm |
| Weight | 0.301 kg |
