SKU: 20209-K-TVP-C3-MB

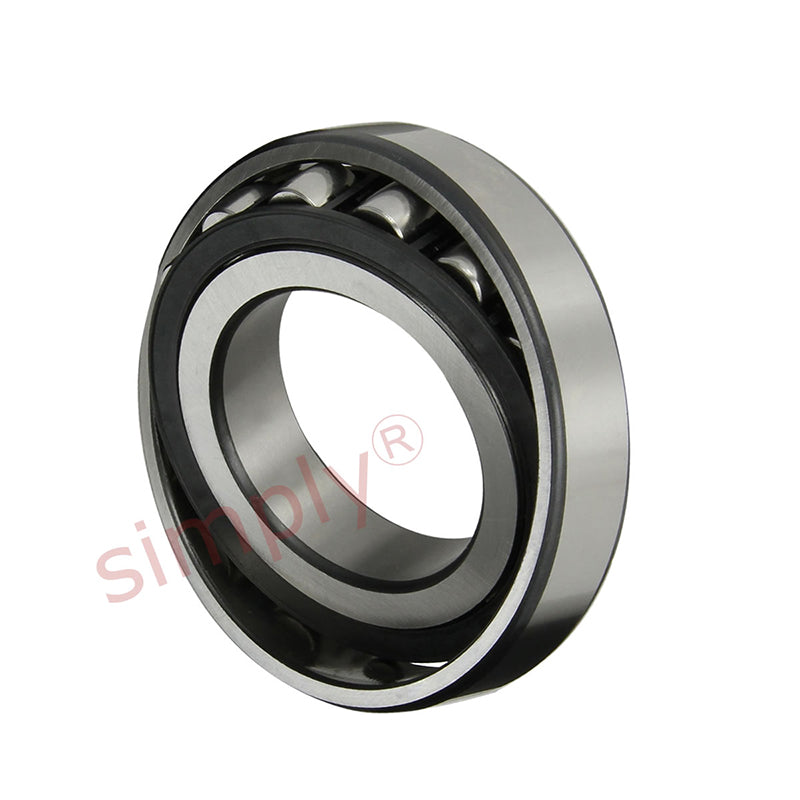

20209KTVPC3 Barrel Roller Bearing with Taper Bore 45x85x19mm - Allow 2-3 Days
20209KTVPC3 Barrel Roller Bearing with Taper Bore 45x85x19mm - Allow 2-3 Days
Regular price
€161,79
ex VAT
Regular price
Sale price
€161,79
ex VAT
In stock
Price Break
3+
€123,22
4+
€116,29
9+
€114,91
19+
€113,53
29+
€112,14
39+
€110,76
49+
€103,83
59+
€102,45
249+
€101,07
499+
€99,68
999+
€96,91
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| r min | 1.1mm |
| D1 | 74.6mm |
| da min | 52mm |
| Da max | 78mm |
| ra max | 1mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 57000 N |
| Fatigue limit load Cur | 5900 N |
| Limiting speed nG | 4000 rpm |
| Weight | 0.433 kg |
