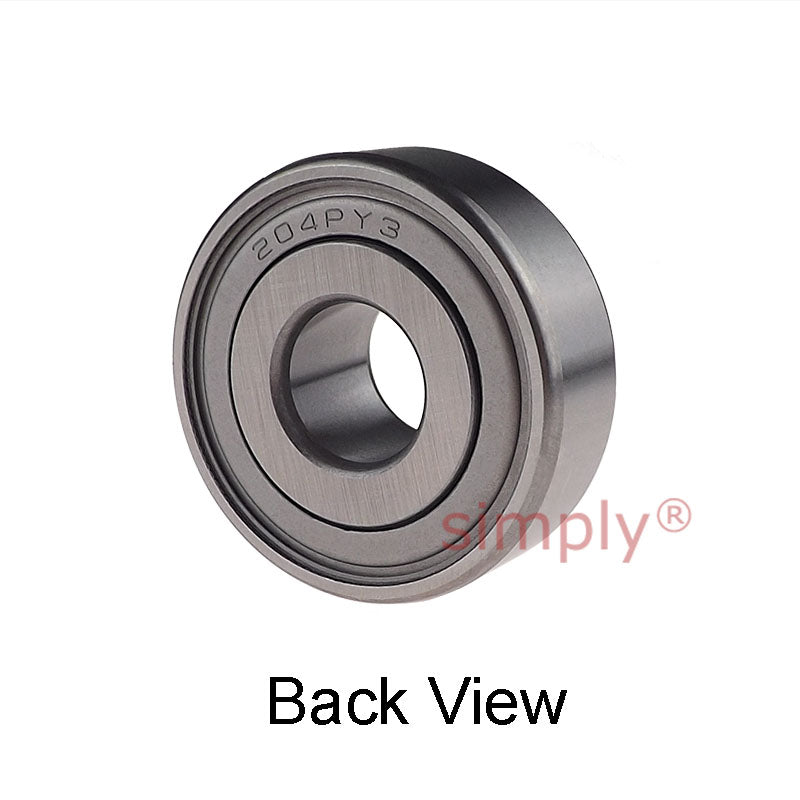

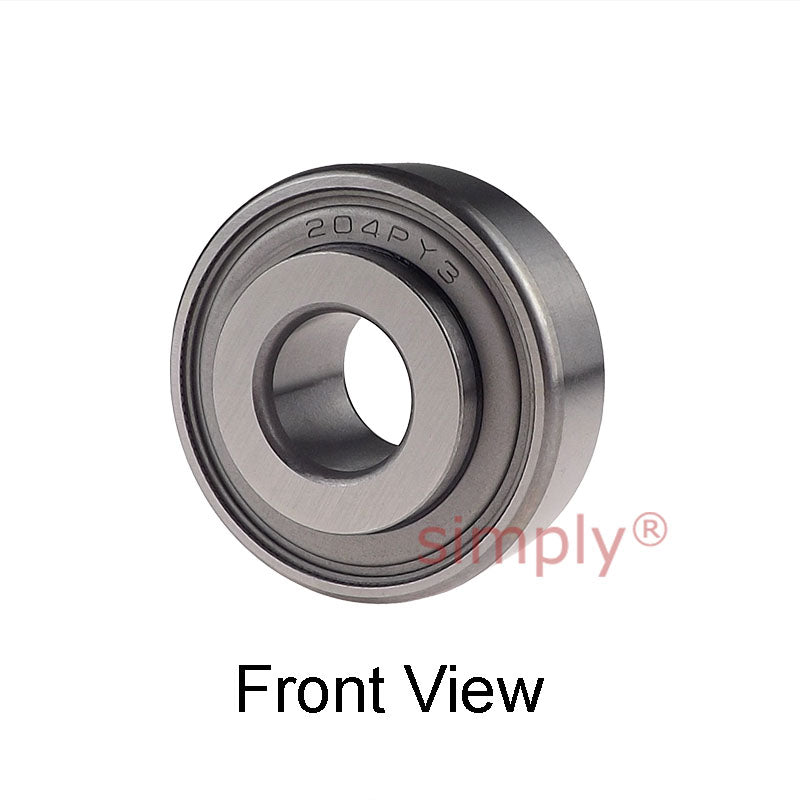

Major Brand 204PY3 Disc Opener Round Bore Bearing 0.632x1.7805x0.735 inch

Disc Opener
Application conditions:

• Single disc or double disc arrangements are used to open the furrow
• Bearings are pressed into the housing which is riveted or screwed to the disc. The disc assembly is bolted to the machine frame
• High loads are encountered in no-till farming and due to angle of pull
• Rigid assembly is required for a precise disc mounting which creates a consistent furrow
• Dusty and sometimes moist environment

• HUB assembly is available for ease of mounting
• Reduced labour cost and eliminate damage due to incorrect assembly

• Optimized internal geometry
• High load capacity
• High contamination feature package with exclusive sealing system

• Rigid disc
• Minimized operating internal clearance

Seal Type: Y, DBL
Typical Application & Speed Limit: Planters: Press Wheel/Gauge Wheel - Basic BRG. Size < 205: 2000 RPM , Basic BRG. Size > 205: 1000 RPM
Typical Environment: Light direct contamination, at one foot distance from ground
Contamination Exclusion: High

Brand / Quality:

Major Brand - High Quality

Inside Diameter:

16.05mm = 0.632 inch

Outside Diameter:

45.22mm = 1.78 inch

Width:

18.66mm = 0.735 inch
