SKU: 205-NPP-B-INA

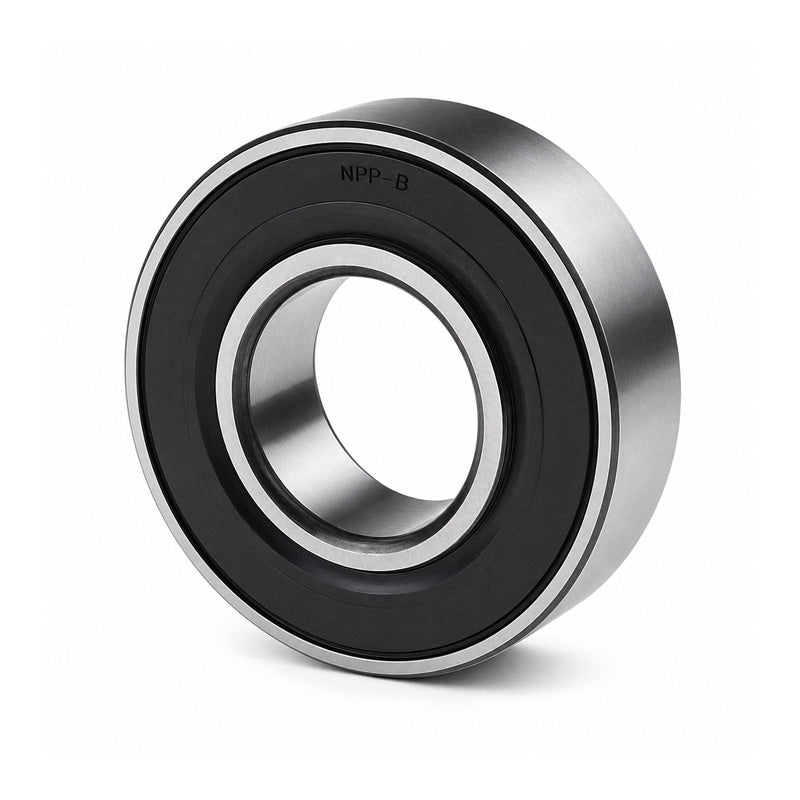

INA 205XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 25x52x15mm
INA 205XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 25x52x15mm
Regular price
€18,95
ex VAT
Regular price
Sale price
€18,95
ex VAT
Equivalent to: 205NPPU CS205 17262052RS
In stock
Price Break
3+
€14,44
5+
€13,62
10+
€13,46
15+
€13,30
20+
€13,14
30+
€12,98
40+
€12,17
50+
€12,00
60+
€11,84
75+
€11,68
100+
€11,35
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 205NPPU CS205 17262052RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B | 15mm |
| d2 | 30.3mm |
| r min | 1mm |
| Limiting speed nG Fett | 8800 rpm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.13 kg |
