SKU: 208-NPP-B-INA

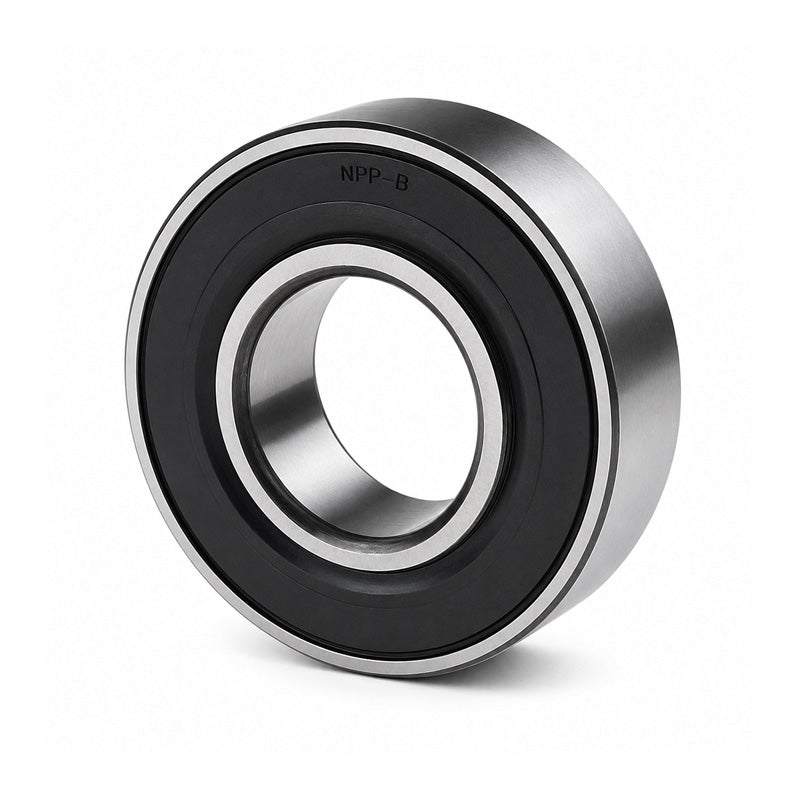

INA 208XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 40x80x18mm
INA 208XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 40x80x18mm
Regular price
€32,52
ex VAT
Regular price
Sale price
€32,52
ex VAT
Equivalent to: 208NPPU CS208 17262082RS
In stock
Price Break
3+
€24,77
5+
€23,38
10+
€23,10
15+
€22,82
20+
€22,54
30+
€22,26
40+
€20,87
50+
€20,59
60+
€20,32
75+
€20,04
100+
€19,48
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 208NPPU CS208 17262082RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B | 18mm |
| d2 | 48.4mm |
| r min | 1.1mm |
| Limiting speed nG Fett | 5500 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.37 kg |
