SKU: 2211K-EU

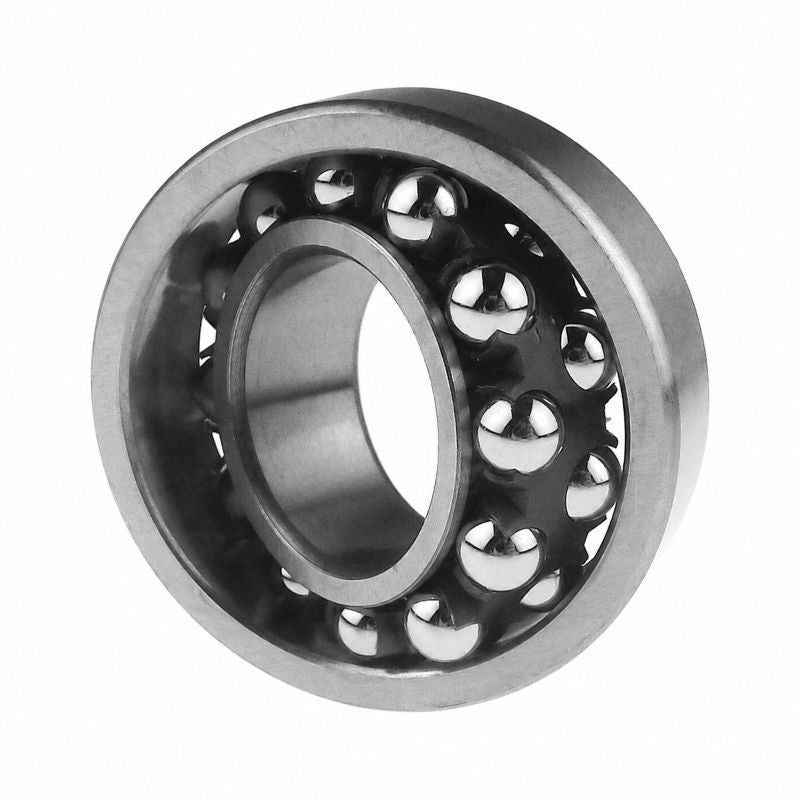

2211K Budget Open Self Aligning Ball Bearing with Taper Bore 55x100x25mm

2211K Budget Open Self Aligning Ball Bearing with Taper Bore 55x100x25mm
Regular price €19,69 ex VAT
Regular price Sale price €19,69 ex VAT
Sale Sold out

Equivalent to: 2211EK

In stock

Price Break
10+ €15,00
19+ €14,15
29+ €13,99
39+ €13,82
49+ €13,65
74+ €13,48
99+ €12,64
199+ €12,47
249+ €12,30
499+ €12,13
999+ €11,80
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 55mm
D 100mm
B 25mm
D1 89.5mm
d1d2 67.7mm
r1r2 1.5mm
da min 64mm
Da max 91mm
ra max 1.5mm
--- Calculation Data
C 39kN
Co 13.410.6
Pu 0.7kN
ref 12000rpm
limit 8500rpm
e 0.23
Y1 2.7
Y2 4.2
Y0 2.8
--- Weights
kg 0.81
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H311+sleeve>H311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS311+sleeve>HS311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA311+sleeve>HA311</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE311B+sleeve>HE311B</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX311+sleeve>AHX311</a>
