SKU: 2212K-EU

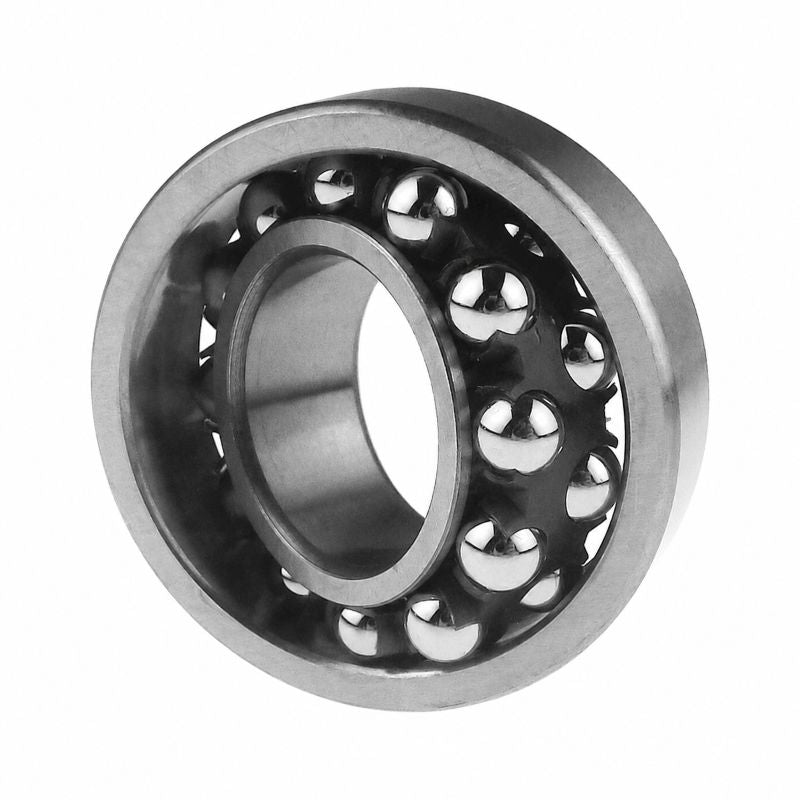

2212K Budget Open Self Aligning Ball Bearing with Taper Bore 60x110x28mm

2212K Budget Open Self Aligning Ball Bearing with Taper Bore 60x110x28mm
Regular price €17,21 ex VAT
Regular price Sale price €17,21 ex VAT
Sale Sold out

Equivalent to: 2212EK

In stock

Price Break
10+ €13,11
19+ €12,37
29+ €12,23
39+ €12,08
49+ €11,93
74+ €11,78
99+ €11,05
199+ €10,90
249+ €10,75
499+ €10,61
999+ €10,31
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 60mm
D 110mm
B 28mm
D1 98.6mm
d1d2 74.5mm
r1r2 1.5mm
da min 69mm
Da max 101mm
ra max 1.5mm
--- Calculation Data
C 48.8kN
Co 1712.2
Pu 0.88kN
ref 11000rpm
limit 8000rpm
e 0.24
Y1 2.6
Y2 4.1
Y0 2.8
--- Weights
kg 1.1
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H312+sleeve>H312</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS212+sleeve>HS212</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX312+sleeve>AHX312</a>
