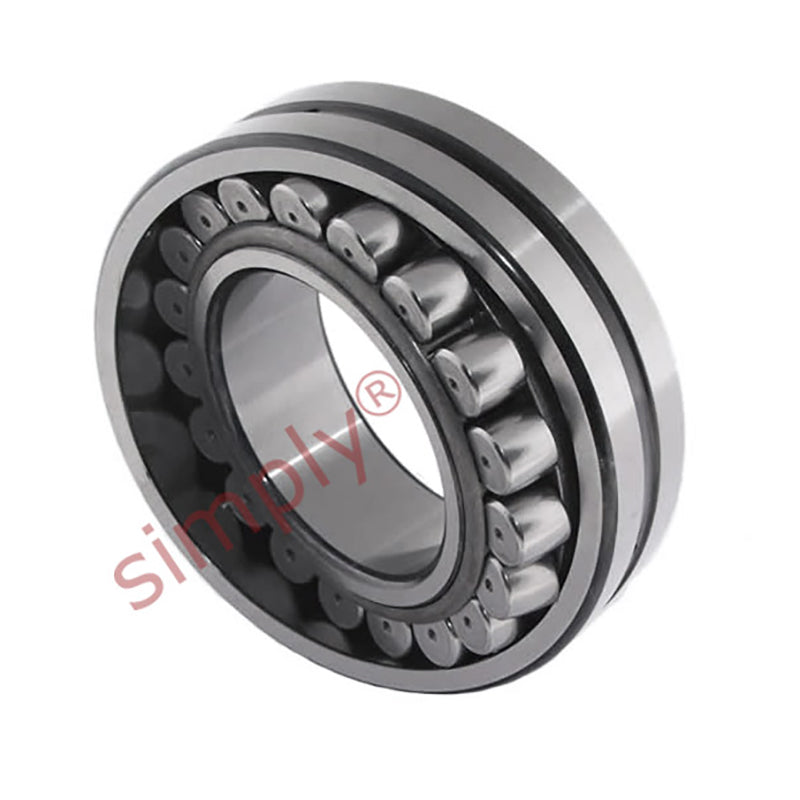

SKF 22207EK Spherical Roller Bearing with Taper Bore 35x72x23mm

SKF 22207EK Spherical Roller Bearing with Taper Bore 35x72x23mm
€77,66 ex VAT
€77,66 ex VAT
Sale Sold out

Equivalent to: 22207K

In stock

Price Break
3+ €59,15
4+ €55,83
9+ €55,16
19+ €54,50
29+ €53,83
39+ €53,17
49+ €49,84
59+ €49,18
249+ €48,52
499+ €47,85
999+ €46,52
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Equivalent: 22207K
Brand / Quality:
SKF - High Quality
Inside Diameter:
35mm
Outside Diameter:
72mm
Width:
23mm
Clearance:
* Standard
Technical
--- Dimensions
d 35mm
D 72mm
B 23mm
D1 61.8mm
d2 44.5mm
r1r2 min 1.1mm
b 3.7mm
K 2mm
da min 42mm
Da max 65mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 86.5 kN
Static load Co 85 kN
Fatigue load limit Pu 9.3 kN
Reference speed 9000 rpm
Limiting speed 12000 rpm
Weight 0.45 kg
--- Factors
Calculation factor e 0.31
Calculation factor Y1 2.2
Calculation factor Y2 3.3
Calculation factor Y0 2.2
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H307+sleeve>H307</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS307+sleeve>HS307</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA307+sleeve>HA307</a>
