SKU: 22x32x8_UIP2_NAK

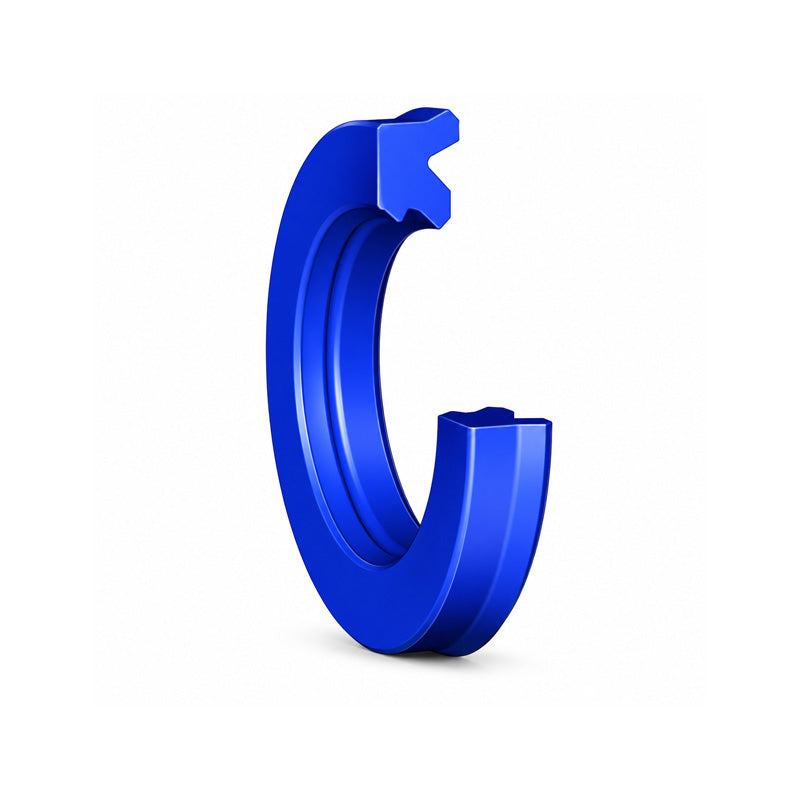

NAK 22x32x8mm UIP2 Polyurethane Rod Seal - Allow 7-10 Days
NAK 22x32x8mm UIP2 Polyurethane Rod Seal - Allow 7-10 Days
Regular price
€1,95
ex VAT
Regular price
Sale price
€1,95
ex VAT
In stock
Price Break
5+
€1,37
10+
€1,17
20+
€1,07
50+
€0,98
100+
€0,78
500+
€0,68
1000+
€0,59
Couldn't load pickup availability
Description
Description
NAK UIP2 Rod Seals: UIP2 rod seals from NAK are high-performance sealing elements featuring an asymmetric dual-lip profile, engineered specifically for hydraulic rod applications. Designed to deliver superior sealing while protecting against contamination. These seals feature a shorter, sturdier inner lip, which enhances stability and contamination control. The outer lip ensures effective dynamic fluid sealing.
Benefits: Enhanced sealing performance, stable groove fit, long service life
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 32mm
- Length:
- 8mm
- Material:
- Polyurethane
- Style:
- UIP2
- Colour:
- Blue
Technical
Technical
| d | 22mm |
|---|---|
| D | 32mm |
| L | 9mm |
| h | 8mm |
| C | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
