SKU: 2316K-EU

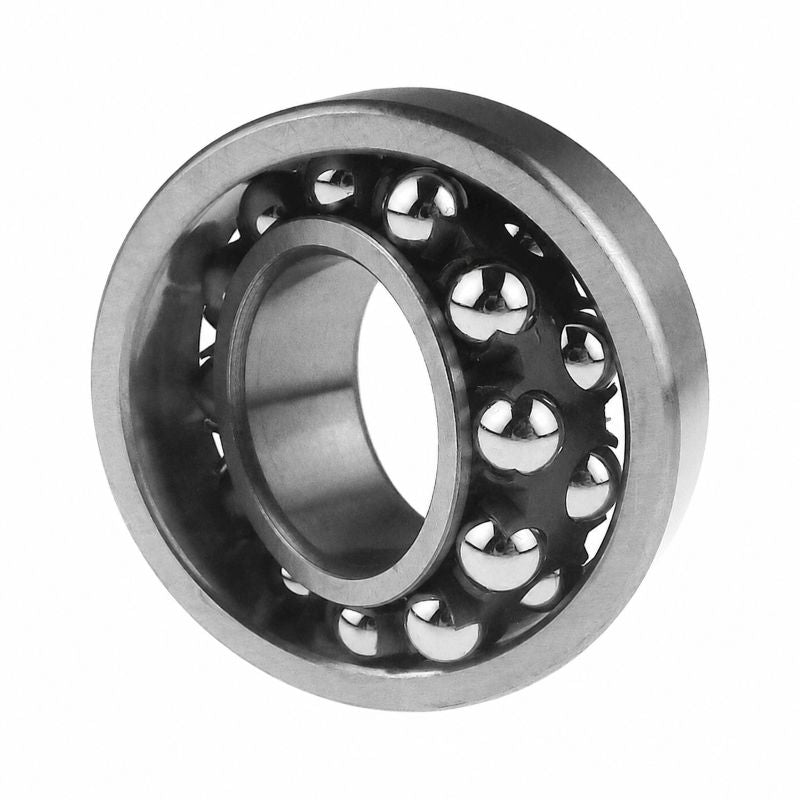

2316K Budget Open Self Aligning Ball Bearing with Taper Bore 80x170x58mm

2316K Budget Open Self Aligning Ball Bearing with Taper Bore 80x170x58mm
Regular price €235,28 ex VAT
Regular price Sale price €235,28 ex VAT
Sale Sold out

Equivalent to: 2316EK

In stock

Price Break
10+ €179,19
19+ €169,12
29+ €167,11
39+ €165,10
49+ €163,08
74+ €161,07
99+ €151,00
199+ €148,99
249+ €146,98
499+ €144,96
999+ €140,94
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 80mm
D 170mm
B 58mm
D1 148mm
d1d2 104mm
r1r2 2.1mm
da min 92mm
Da max 158mm
ra max 2mm
--- Calculation Data
C 135kN
Co 4933.5
Pu 2.24kN
ref 7000rpm
limit 5300rpm
e 0.37
Y1 1.7
Y2 2.6
Y0 1.8
--- Weights
kg 6.1
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2316+sleeve>H2316</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2316+sleeve>HA2316</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2316+sleeve>HE2316</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2316+sleeve>AHX2316</a>
