SKU: 23220CCK/C3W33-SKF

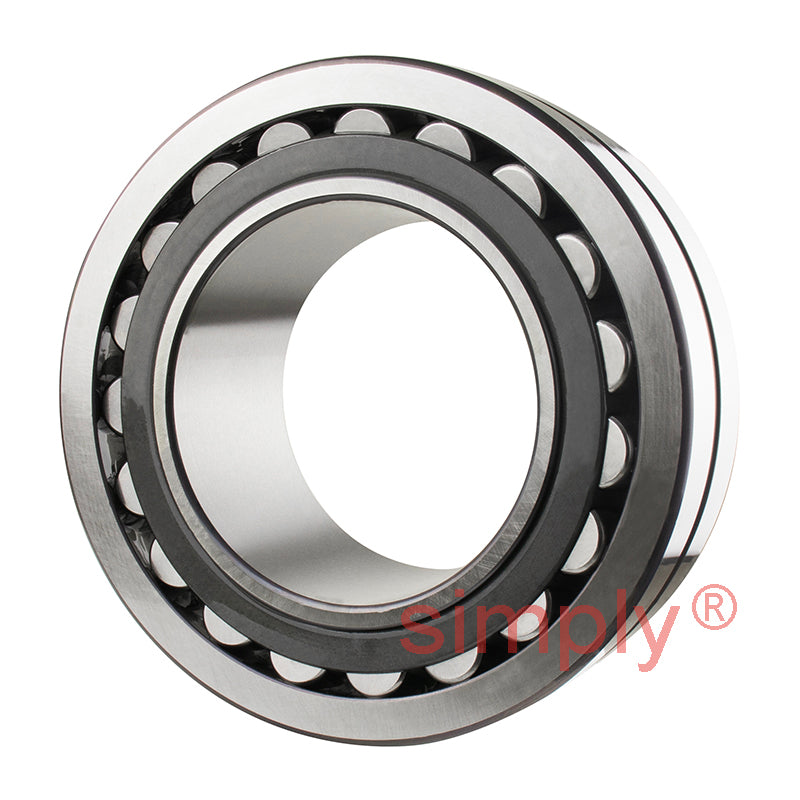

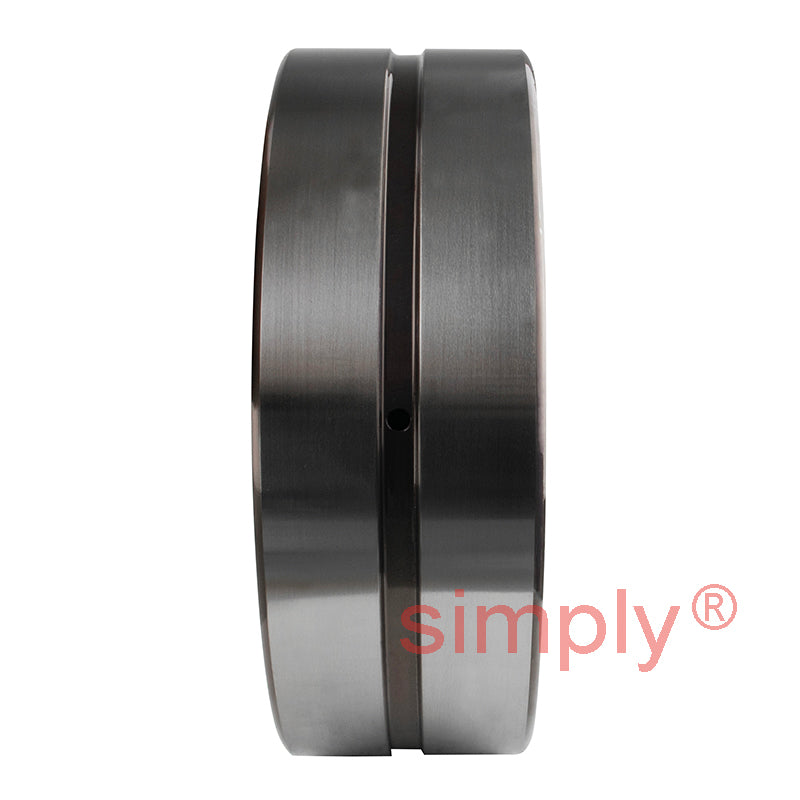

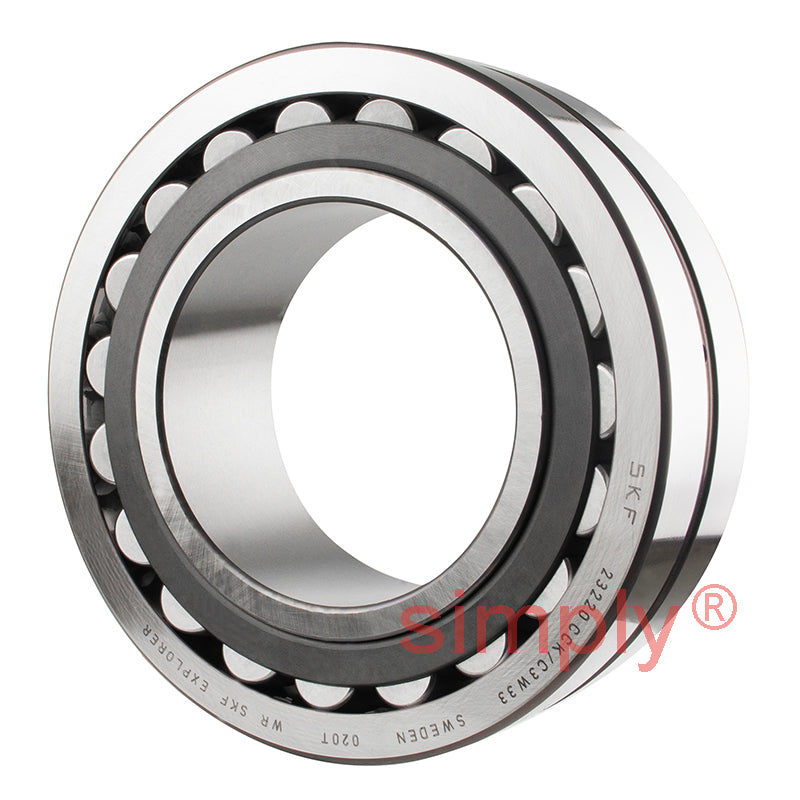

SKF 23220CCKC3W33 Spherical Roller Bearing with Taper Bore with Steel Cage 100x180x60.3mm

Name: SKF 23220CCKC3W33 Spherical Roller Bearing with Taper Bore with Steel Cage 100x180x60.3mm
Brand: SKF
SKU: 23220CCK/C3W33-SKF
Price: 432.62 EUR
Availability: InStock

€432,62 ex VAT

Sale Sold out

Equivalent to: 23220KC3

In stock

Price Break

3+ €329,49

4+ €310,98

9+ €307,27

19+ €303,57

29+ €299,87

39+ €296,17

49+ €277,66

59+ €273,96

249+ €270,25

499+ €266,55

999+ €259,15

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Equivalent: 23220KC3

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 180mm
Width:: 60.3mm
Clearance:: C3

Technical

---	Dimensions
d	100mm
D	180mm
B	60.3mm
D1	153mm
d2	117mm
r1r2 min	2.1mm
b	8.3mm
K	4.5mm
da min	112mm
Da max	168mm
ra max	2mm
---	Speeds, Loads and Weights
Dynamic load C	475 kN
Static load Co	600 kN
Fatigue load limit Pu	63 kN
Reference speed	2400 rpm
Limiting speed	3400 rpm
Weight	6.85 kg
---	Factors
Calculation factor e	0.33
Calculation factor Y1	2
Calculation factor Y2	3
Calculation factor Y0	2
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2320+sleeve>H2320</a>
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3220+sleeve>AHX3220</a>
