SKU: 29230E-SKF

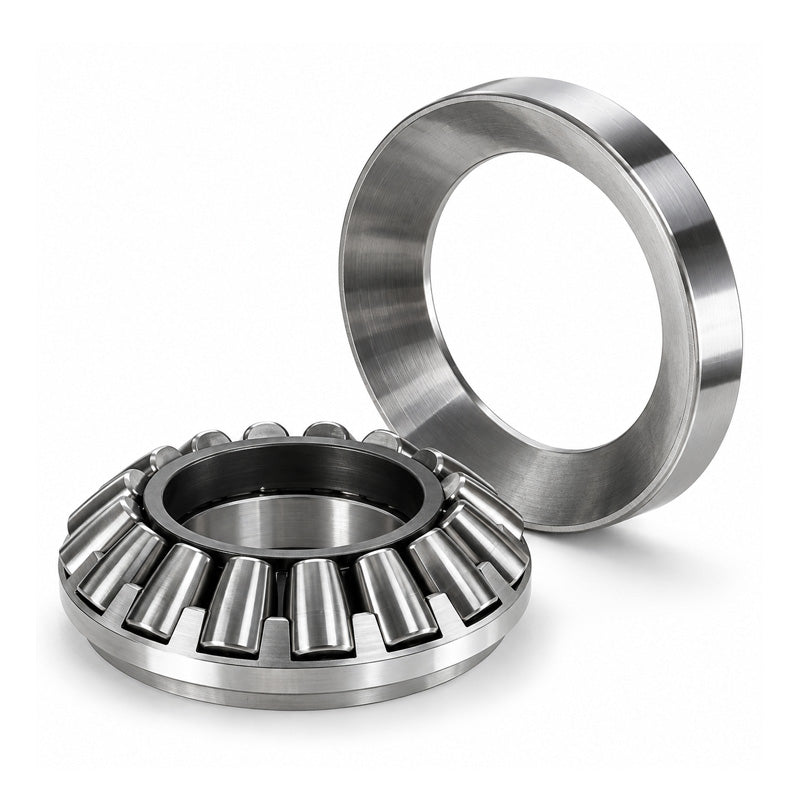

SKF 29230E Spherical Roller Thrust Bearing 150x215x39mm
SKF 29230E Spherical Roller Thrust Bearing 150x215x39mm
Regular price
€2.782,99
ex VAT
Regular price
Sale price
€2.782,99
ex VAT
In stock
Price Break
10+
€2.119,53
19+
€2.000,45
29+
€1.976,64
39+
€1.952,82
49+
€1.929,01
74+
€1.905,19
99+
€1.786,12
199+
€1.762,30
249+
€1.738,49
499+
€1.714,67
999+
€1.667,04
Share this product
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 215mm
- Width:
- 39mm
Technical
Technical
| d | 150mm |
|---|---|
| D | 215mm |
| H | 39mm |
| Dynamic load C | 408 kN |
| Static load Co | 1600 kN |
| Fatigue load limit Pu | 180 kN |
| Minimum load factor A | 0.24 |
| Reference speed | 1800 rpm |
| Limiting speed | 2800 rpm |
| Weight | 4.3 kg |
| d1 | 200.4mm |
| D1 | 176mm |
| B | 24mm |
| B1 | 34.3mm |
| C | 20.5mm |
| s | 82mm |
| r1r2 min | 1.5mm |
| da min | 180mm |
| db1 max | 154mm |
| db2 max | 154mm |
| Ha min | 14mm |
| Da max | 193mm |
| ra max | 1.5mm |
