SKU: 29256-SKF

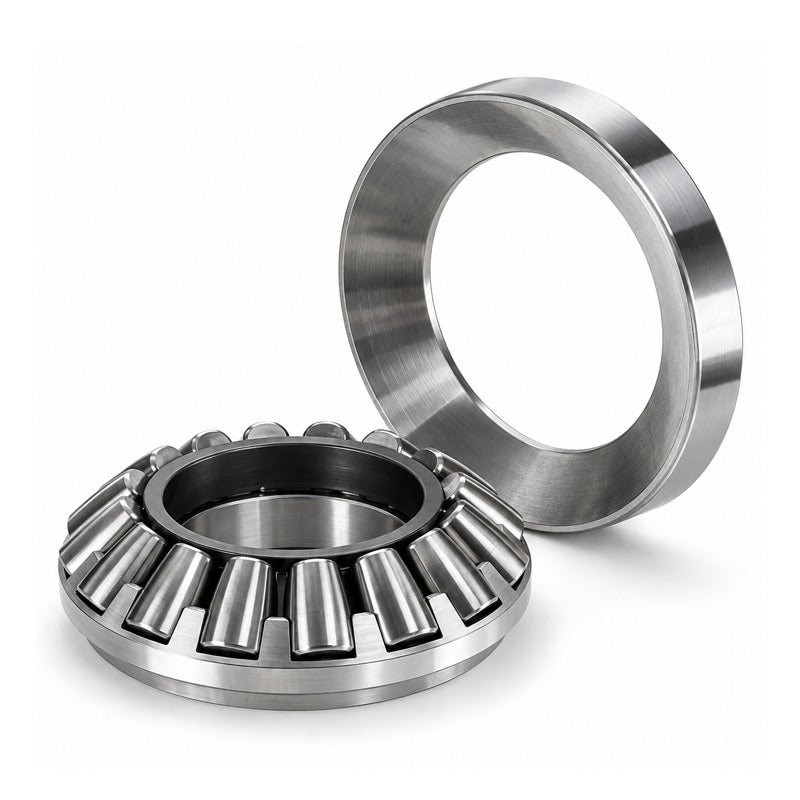

SKF 29256 Spherical Roller Thrust Bearing 280x380x60mm
SKF 29256 Spherical Roller Thrust Bearing 280x380x60mm
Regular price
€4.211,08
ex VAT
Regular price
Sale price
€4.211,08
ex VAT
In stock
Price Break
10+
€3.207,16
19+
€3.026,98
29+
€2.990,95
39+
€2.954,91
49+
€2.918,88
74+
€2.882,84
99+
€2.702,66
199+
€2.666,63
249+
€2.630,59
499+
€2.594,56
999+
€2.522,49
Share this product
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 380mm
- Width:
- 60mm
Technical
Technical
| d | 280mm |
|---|---|
| D | 380mm |
| H | 60mm |
| Dynamic load C | 863 kN |
| Static load Co | 4000 kN |
| Fatigue load limit Pu | 375 kN |
| Minimum load factor A | 1.5 |
| Reference speed | 1000 rpm |
| Limiting speed | 1700 rpm |
| Weight | 19.5 kg |
| d1 | 370mm |
| D1 | 323mm |
| B | 19mm |
| B1 | 57mm |
| C | 30.5mm |
| s | 150mm |
| r1r2 min | 2.1mm |
| da min | 325mm |
| Da max | 347mm |
| ra max | 2mm |
