SKU: 29318E-SKF

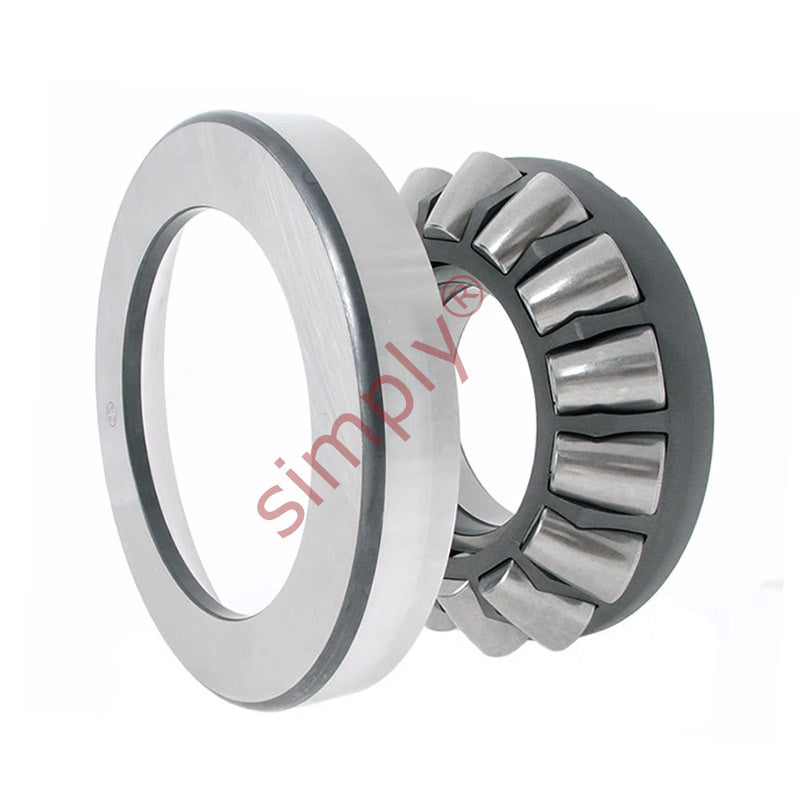

SKF 29318E Spherical Roller Thrust Bearing 90x155x39mm

Name: SKF 29318E Spherical Roller Thrust Bearing 90x155x39mm
Brand: SKF
SKU: 29318E-SKF
Price: 692.19 EUR
Availability: InStock

€692,19 ex VAT

Sale Sold out

In stock

Price Break

10+ €527,17

19+ €497,56

29+ €491,63

39+ €485,71

49+ €479,79

74+ €473,86

99+ €444,25

199+ €438,32

249+ €432,40

499+ €426,48

999+ €414,63

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 90mm
Outside Diameter:: 155mm
Width:: 39mm

Technical

d	90mm
D	155mm
H	39mm
Dynamic load C	400 kN
Static load Co	1080 kN
Fatigue load limit Pu	132 kN
Minimum load factor A	0.11
Reference speed	2400 rpm
Limiting speed	4000 rpm
Weight	2.85 kg
d1	138.6mm
D1	115mm
B	24.5mm
B1	34.5mm
C	19.5mm
s	53mm
r1r2 min	1.5mm
da min	120mm
db1 max	95mm
db2 max	95mm
Da max	134mm
ra max	1.5mm
