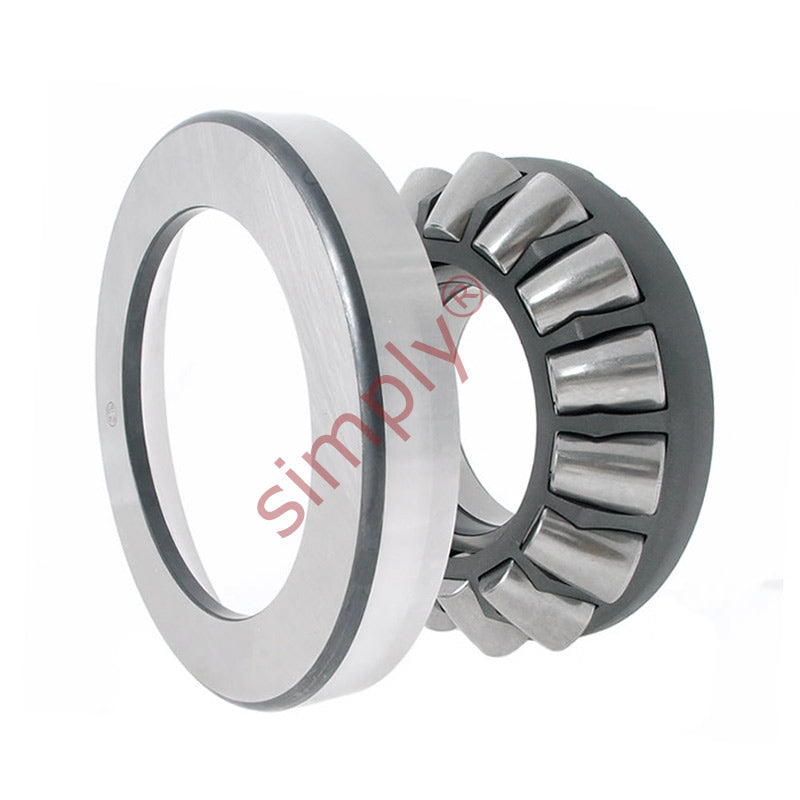

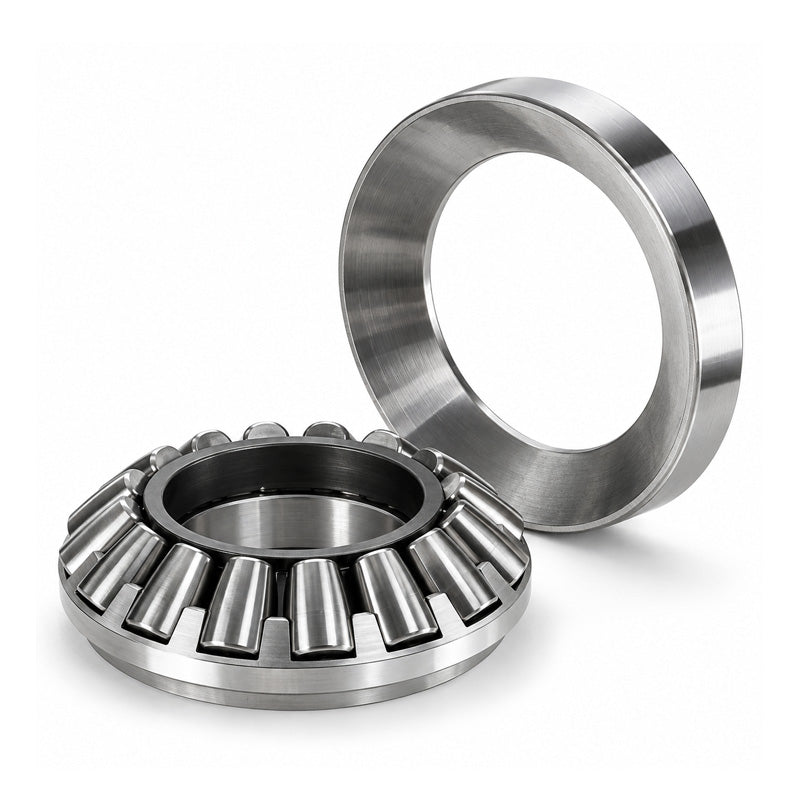

SKF 29332E Spherical Roller Thrust Bearing 160x270x67mm

Name: SKF 29332E Spherical Roller Thrust Bearing 160x270x67mm
Brand: SKF
SKU: 29332E-SKF
Price: 482.97 EUR
Availability: InStock

€482,97 ex VAT

Sale Sold out

In stock

Price Break

10+ €367,83

19+ €347,16

29+ €343,03

39+ €338,90

49+ €334,76

74+ €330,63

99+ €309,97

199+ €305,83

249+ €301,70

499+ €297,57

999+ €289,30

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 160mm
Outside Diameter:: 270mm
Width:: 67mm

Technical

d	160mm
D	270mm
H	67mm
Dynamic load C	1180 kN
Static load Co	3450 kN
Fatigue load limit Pu	375 kN
Minimum load factor A	1.1
Reference speed	1300 rpm
Limiting speed	2200 rpm
Weight	14.5 kg
d1	243.5mm
D1	203mm
B	42mm
B1	60mm
C	33mm
s	92mm
r1r2 min	3mm
da min	210mm
db1 max	169mm
db2 max	176mm
Da max	235mm
ra max	2.5mm
