SKU: 29352E-SKF

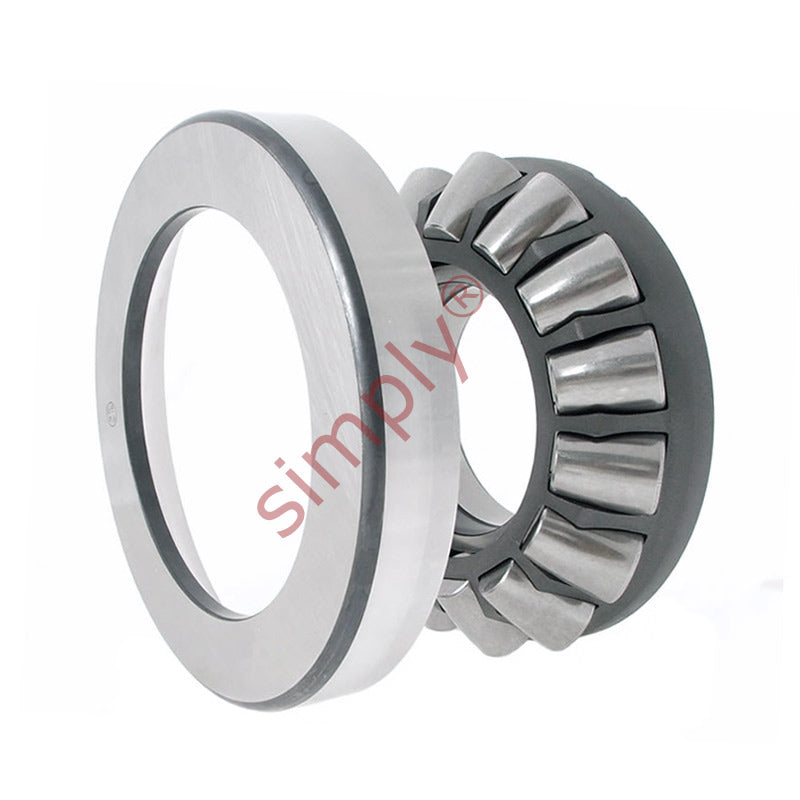

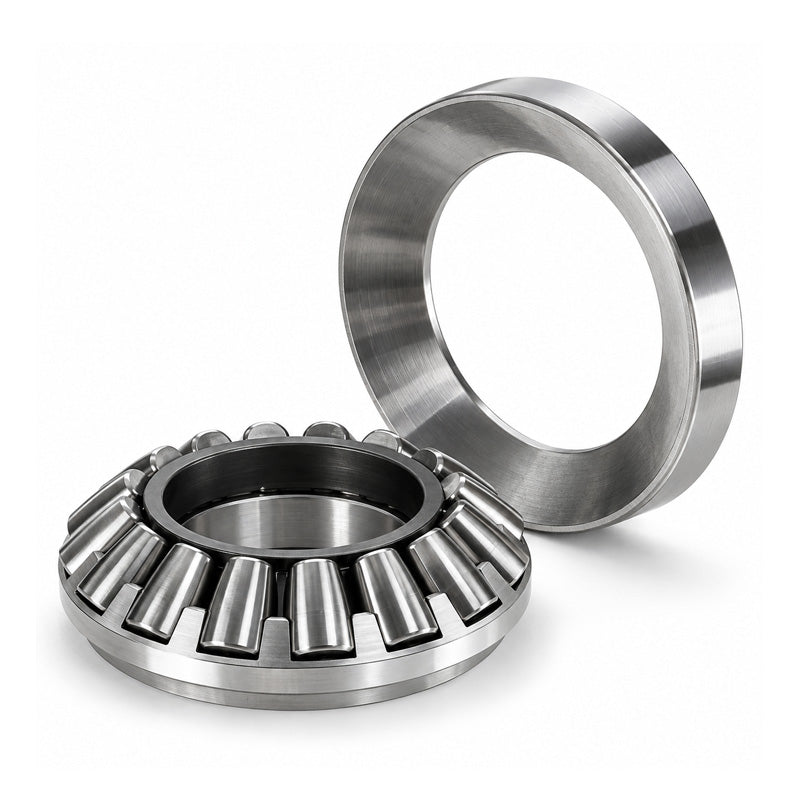

SKF 29352E Spherical Roller Thrust Bearing 260x420x95mm
SKF 29352E Spherical Roller Thrust Bearing 260x420x95mm
Regular price
€5.050,23
ex VAT
Regular price
Sale price
€5.050,23
ex VAT
In stock
Price Break
10+
€4.494,70
19+
€4.242,19
29+
€4.191,69
39+
€4.141,19
49+
€4.090,69
74+
€4.040,18
99+
€3.787,67
199+
€3.737,17
249+
€3.686,67
499+
€3.636,17
999+
€3.535,16
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 260mm
- Outside Diameter:
- 420mm
- Width:
- 95mm
Technical
Technical
| d | 260mm |
|---|---|
| D | 420mm |
| H | 95mm |
| Dynamic load C | 2550 kN |
| Static load Co | 8300 kN |
| Fatigue load limit Pu | 780 kN |
| Minimum load factor A | 6.5 |
| Reference speed | 850 rpm |
| Limiting speed | 1400 rpm |
| Weight | 49 kg |
| d1 | 382.2mm |
| D1 | 324mm |
| B | 61mm |
| B1 | 86.6mm |
| C | 46mm |
| s | 148mm |
| r1r2 min | 5mm |
| da min | 335mm |
| db1 max | 273mm |
| db2 max | 286mm |
| Da max | 370mm |
| ra max | 4mm |
