SKU: 29414E-SKF

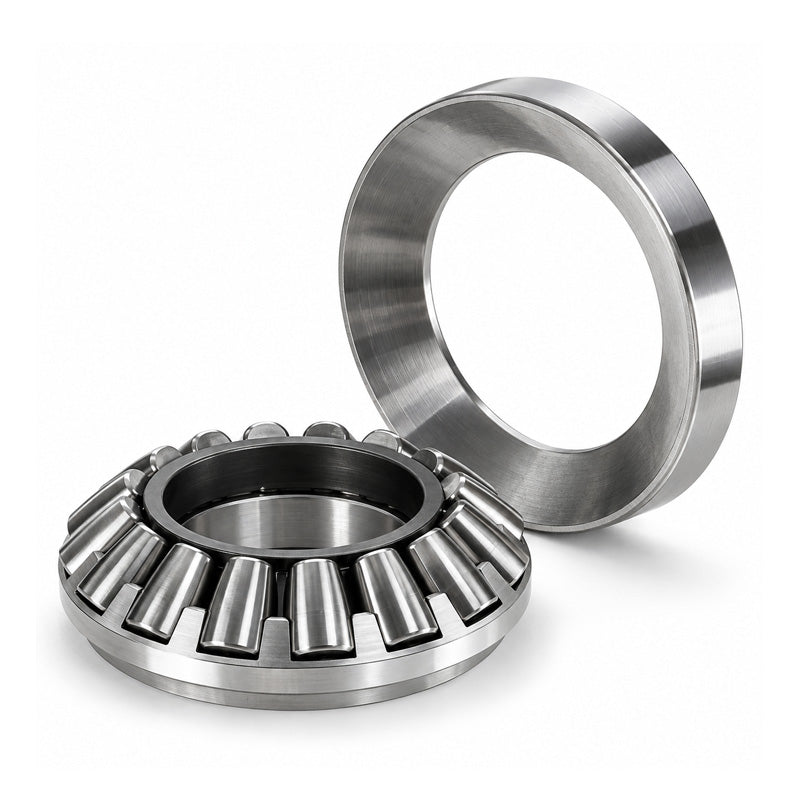

SKF 29414E Spherical Roller Thrust Bearing 70x150x48mm
SKF 29414E Spherical Roller Thrust Bearing 70x150x48mm
Regular price
€650,47
ex VAT
Regular price
Sale price
€650,47
ex VAT
In stock
Price Break
10+
€578,92
19+
€546,39
29+
€539,89
39+
€533,39
49+
€526,88
74+
€520,38
99+
€487,85
199+
€481,35
249+
€474,84
499+
€468,34
999+
€455,33
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 48mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| H | 48mm |
| Dynamic load C | 520 kN |
| Static load Co | 1250 kN |
| Fatigue load limit Pu | 153 kN |
| Minimum load factor A | 0.15 |
| Reference speed | 2400 rpm |
| Limiting speed | 4300 rpm |
| Weight | 3.9 kg |
| d1 | 129.7mm |
| D1 | 99mm |
| B | 31mm |
| B1 | 41mm |
| C | 23.8mm |
| s | 44.8mm |
| r1r2 min | 2mm |
| da min | 105mm |
| db1 max | 77.5mm |
| db2 max | 77.5mm |
| Da max | 125mm |
| ra max | 2mm |
