SKU: 29415E-SKF

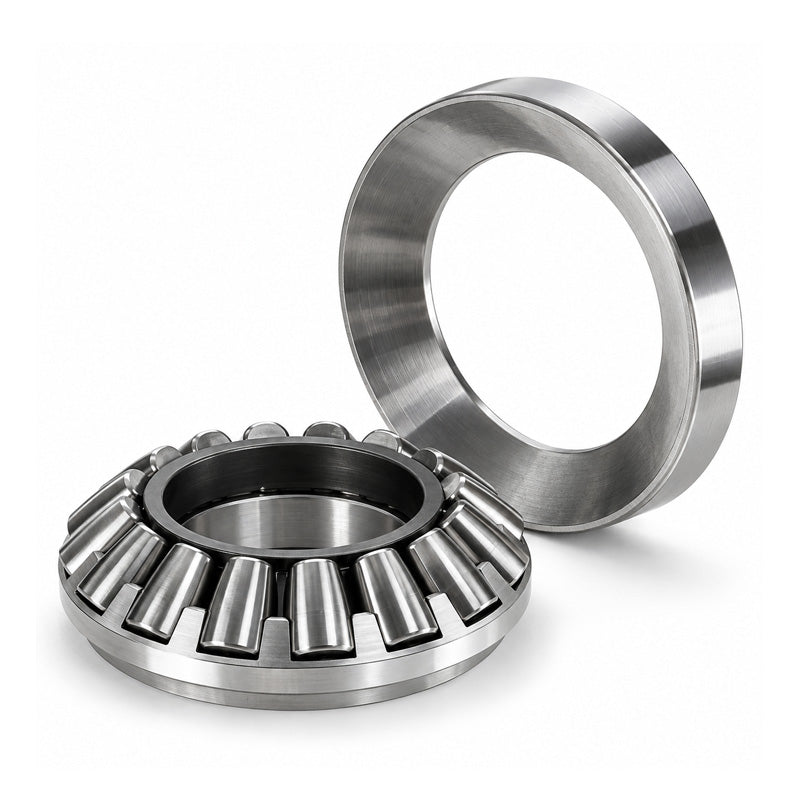

SKF 29415E Spherical Roller Thrust Bearing 75x160x51mm
SKF 29415E Spherical Roller Thrust Bearing 75x160x51mm
Regular price
€683,14
ex VAT
Regular price
Sale price
€683,14
ex VAT
In stock
Price Break
10+
€520,27
19+
€491,05
29+
€485,20
39+
€479,35
49+
€473,51
74+
€467,66
99+
€438,43
199+
€432,59
249+
€426,74
499+
€420,90
999+
€409,20
Share this product
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 51mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| H | 51mm |
| Dynamic load C | 600 kN |
| Static load Co | 1430 kN |
| Fatigue load limit Pu | 173 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2400 rpm |
| Limiting speed | 4000 rpm |
| Weight | 4.7 kg |
| d1 | 138.3mm |
| D1 | 105.5mm |
| B | 33.5mm |
| B1 | 45.7mm |
| C | 24.5mm |
| s | 47mm |
| r1r2 min | 2mm |
| da min | 115mm |
| db1 max | 82.5mm |
| db2 max | 82.5mm |
| Da max | 133mm |
| ra max | 2mm |
