SKU: 29416E-SKF

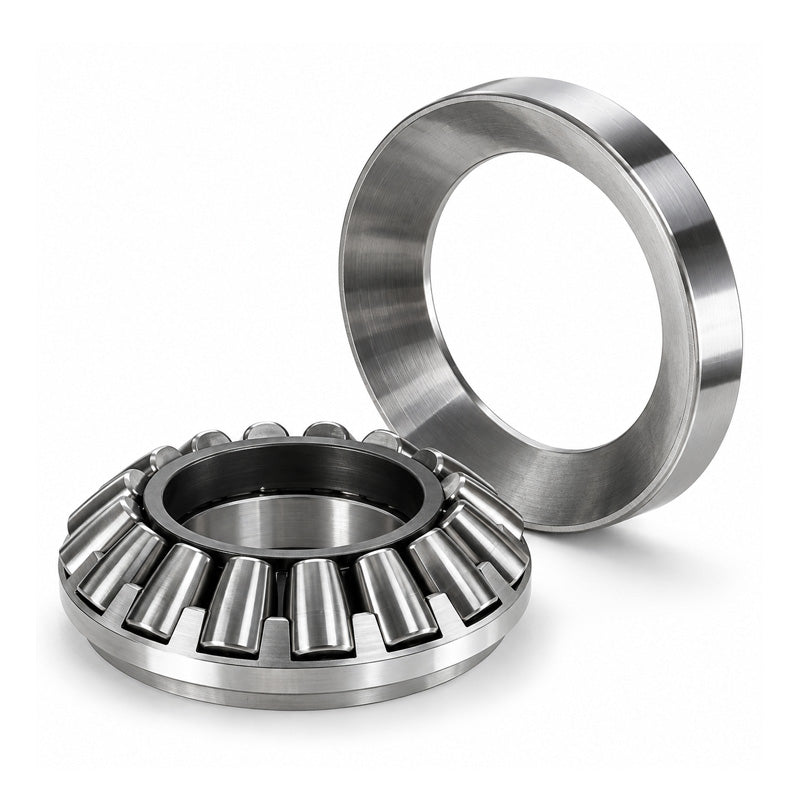

SKF 29416E Spherical Roller Thrust Bearing 80x170x54mm

Name: SKF 29416E Spherical Roller Thrust Bearing 80x170x54mm
Brand: SKF
SKU: 29416E-SKF
Price: 762.87 EUR
Availability: InStock

€762,87 ex VAT

Sale Sold out

In stock

Price Break

10+ €581,00

19+ €548,36

29+ €541,83

39+ €535,30

49+ €528,77

74+ €522,25

99+ €489,61

199+ €483,08

249+ €476,55

499+ €470,02

999+ €456,96

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 54mm

Technical

d	80mm
D	170mm
H	54mm
Dynamic load C	670 kN
Static load Co	1630 kN
Fatigue load limit Pu	193 kN
Minimum load factor A	0.25
Reference speed	2200 rpm
Limiting speed	3800 rpm
Weight	5.6 kg
d1	147.2mm
D1	112.5mm
B	35mm
B1	48.1mm
C	26.5mm
s	50mm
r1r2 min	2.1mm
da min	120mm
db1 max	88mm
db2 max	88mm
Da max	141mm
ra max	2mm
