SKU: 29422E-SKF

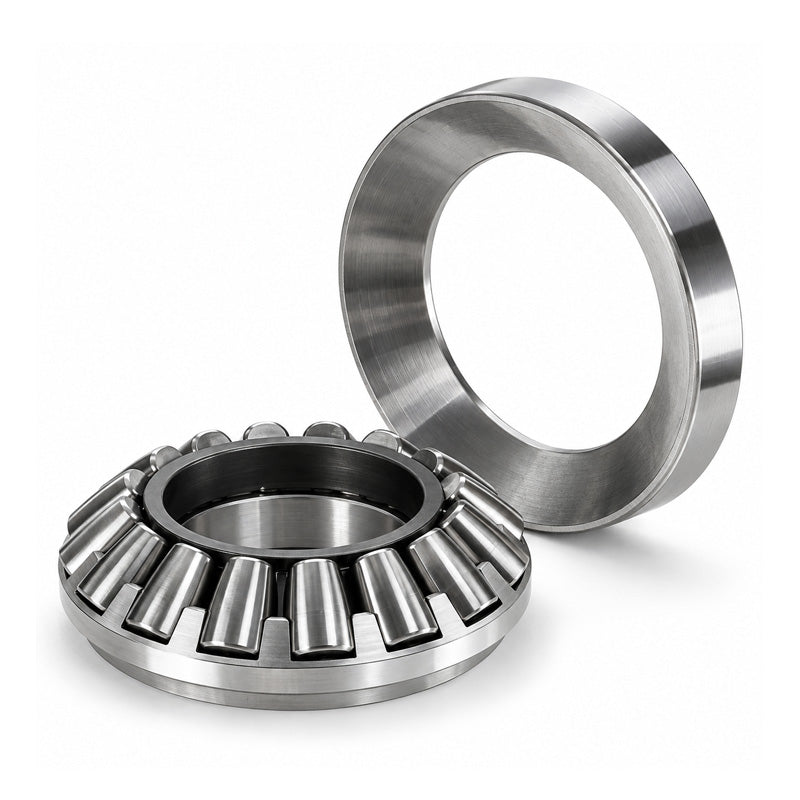

SKF 29422E Spherical Roller Thrust Bearing 110x230x73mm
SKF 29422E Spherical Roller Thrust Bearing 110x230x73mm
Regular price
€1.237,53
ex VAT
Regular price
Sale price
€1.237,53
ex VAT
In stock
Price Break
10+
€942,50
19+
€889,55
29+
€878,96
39+
€868,37
49+
€857,78
74+
€847,19
99+
€794,24
199+
€783,65
249+
€773,06
499+
€762,47
999+
€741,29
Share this product
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 230mm
- Width:
- 73mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 230mm |
| H | 73mm |
| Dynamic load C | 1180 kN |
| Static load Co | 3000 kN |
| Fatigue load limit Pu | 325 kN |
| Minimum load factor A | 0.86 |
| Reference speed | 1600 rpm |
| Limiting speed | 2800 rpm |
| Weight | 13.5 kg |
| d1 | 199.4mm |
| D1 | 155.5mm |
| B | 47mm |
| B1 | 64.7mm |
| C | 34.7mm |
| s | 69mm |
| r1r2 min | 3mm |
| da min | 165mm |
| db1 max | 120.5mm |
| db2 max | 129mm |
| Da max | 193mm |
| ra max | 2.5mm |
