SKU: 29440E-SKF

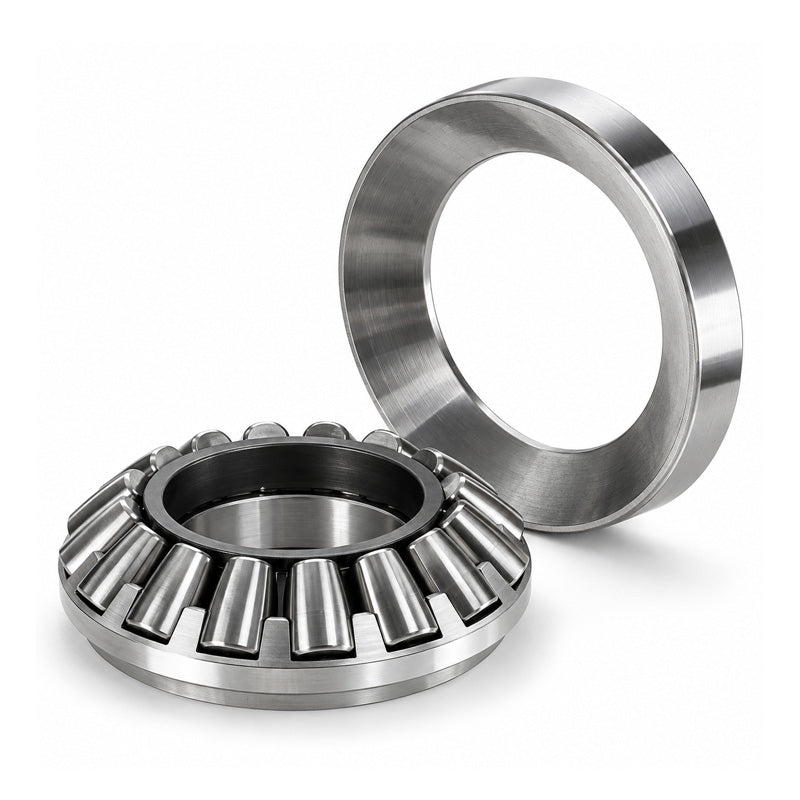

SKF 29440E Spherical Roller Thrust Bearing 200x400x122mm
SKF 29440E Spherical Roller Thrust Bearing 200x400x122mm
Regular price
€5.130,19
ex VAT
Regular price
Sale price
€5.130,19
ex VAT
In stock
Price Break
10+
€4.565,87
19+
€4.309,36
29+
€4.258,06
39+
€4.206,76
49+
€4.155,45
74+
€4.104,15
99+
€3.847,64
199+
€3.796,34
249+
€3.745,04
499+
€3.693,74
999+
€3.591,13
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 400mm
- Width:
- 122mm
Technical
Technical
| d | 200mm |
|---|---|
| D | 400mm |
| H | 122mm |
| Dynamic load C | 3200 kN |
| Static load Co | 9000 kN |
| Fatigue load limit Pu | 850 kN |
| Minimum load factor A | 7.7 |
| Reference speed | 850 rpm |
| Limiting speed | 1600 rpm |
| Weight | 72 kg |
| d1 | 350.7mm |
| D1 | 277.5mm |
| B | 77mm |
| B1 | 107.1mm |
| C | 59.4mm |
| s | 122mm |
| r1r2 min | 5mm |
| da min | 295mm |
| db1 max | 217.5mm |
| db2 max | 234mm |
| Da max | 337mm |
| ra max | 4mm |
