SKU: 29444E-SKF

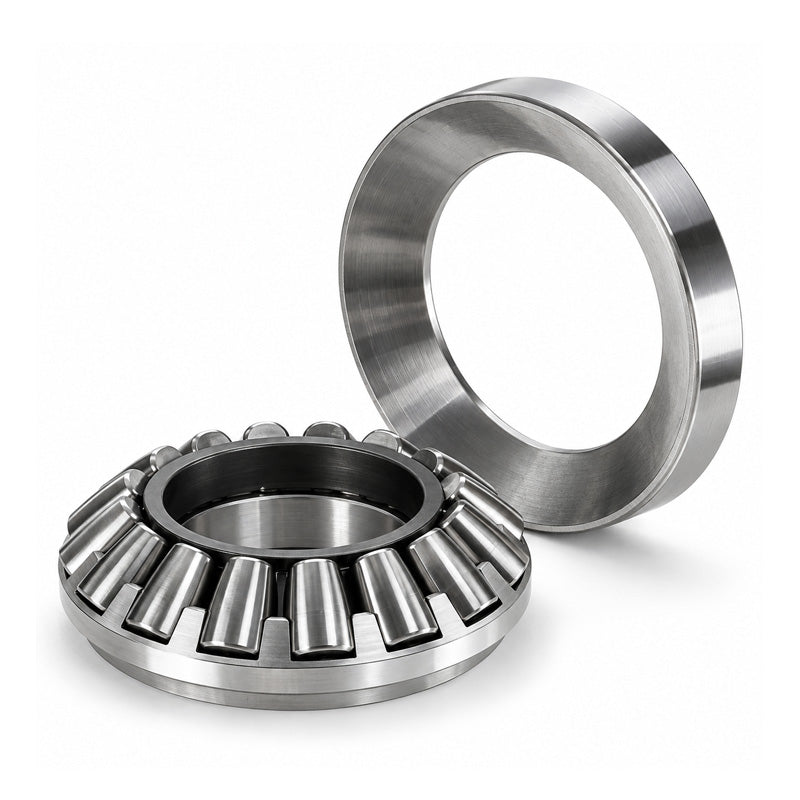

SKF 29444E Spherical Roller Thrust Bearing 220x420x122mm
SKF 29444E Spherical Roller Thrust Bearing 220x420x122mm
Regular price
€5.748,13
ex VAT
Regular price
Sale price
€5.748,13
ex VAT
Low stock
Price Break
10+
€4.377,77
19+
€4.131,83
29+
€4.082,64
39+
€4.033,46
49+
€3.984,27
74+
€3.935,08
99+
€3.689,14
199+
€3.639,95
249+
€3.590,76
499+
€3.541,57
999+
€3.443,19
Share this product
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 420mm
- Width:
- 122mm
Technical
Technical
| d | 220mm |
|---|---|
| D | 420mm |
| H | 122mm |
| Dynamic load C | 3350 kN |
| Static load Co | 9650 kN |
| Fatigue load limit Pu | 900 kN |
| Minimum load factor A | 8.8 |
| Reference speed | 850 rpm |
| Limiting speed | 1500 rpm |
| Weight | 75 kg |
| d1 | 371.6mm |
| D1 | 300mm |
| B | 77mm |
| B1 | 107.4mm |
| C | 58.5mm |
| s | 132mm |
| r1r2 min | 6mm |
| da min | 315mm |
| db1 max | 238mm |
| db2 max | 254mm |
| Da max | 358mm |
| ra max | 5mm |
