Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Regular price
€27,53
ex VAT
Regular price
Sale price
€27,53
ex VAT
In stock
Price Break
10+
€20,97
19+
€19,79
29+
€19,56
39+
€19,32
49+
€19,09
74+
€18,85
99+
€17,67
199+
€17,44
249+
€17,20
499+
€16,96
999+
€16,49
Description
Description
Heavy Duty 800 Series Ball Transfer Units: The body and outer ring are manufactured from Zinc Plated Carbon Steel. On the base of the unit there is a dirt hole which aims to reduce potential contaminents which improves efficiency and allows smoother running. These ball transfer units have a maximum dynamic load capactiy of upto 350kg (ball up) and 175kg (ball down). The maximum operating temperature is 70 deg C (continuous) or 100 deg C (intermittent).
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 30mm
- Width:
- 36.8mm
Technical
Technical

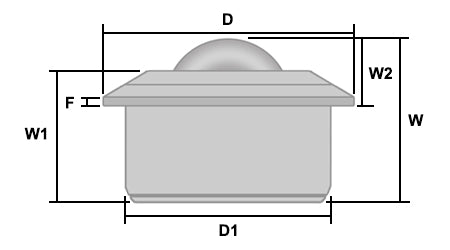

| Ball Diameter | 30mm |
|---|---|
| Dirt Hole Diameter | 2mm |
| Amount of Exposed Ball | 5.5mm |
| D | 54.5mm |
| D1 | 45mm |
| W | 36.8mm |
| W1 | 31.3mm |
| W2 | 13.8mm |
| F | 3.4mm |
| Weight | 0.362 kg |
