SKU: 31309J2/QCL7CDF-SKF

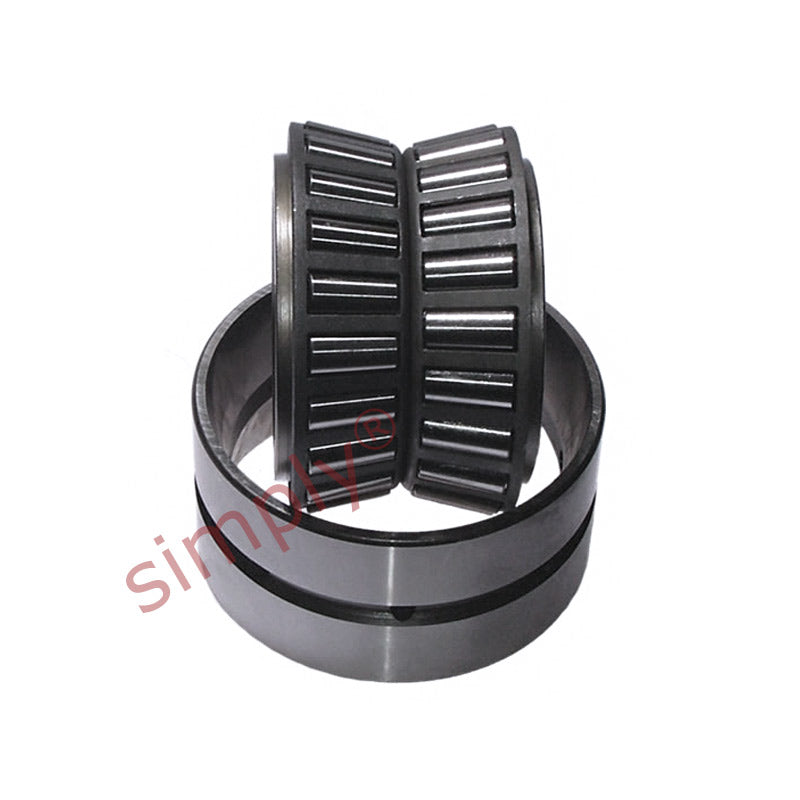

SKF 31309J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 45x100x54.5mm
SKF 31309J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 45x100x54.5mm
Regular price
€445,88
ex VAT
Regular price
Sale price
€445,88
ex VAT
In stock
Price Break
10+
€339,58
19+
€320,50
29+
€316,69
39+
€312,87
49+
€309,06
74+
€305,24
99+
€286,16
199+
€282,35
249+
€278,53
499+
€274,72
999+
€267,09
Share this product
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 54.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| T | 54.5mm |
| Dynamic load | 180 kN |
| Static load | 204 kN |
| Fatigue load limit Pu | 24.5 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2 kg |
| 2B | 50mm |
| r3r4 | 1.5mm |
| r5 | 0.6mm |
| da max | 57mm |
| da min | 79mm |
| Da max | 91mm |
| Ca min | 4mm |
| ra max | 1.5mm |
| rc max | 0.6mm |
| Calculation Factor e | 0.83 |
| Calculation Factor Y1 | 0.81 |
| Calculation Factor Y2 | 1.2 |
| Calculation Factor Y0 | 0.8 |
