SKU: 3806.B.2RSR.TVH

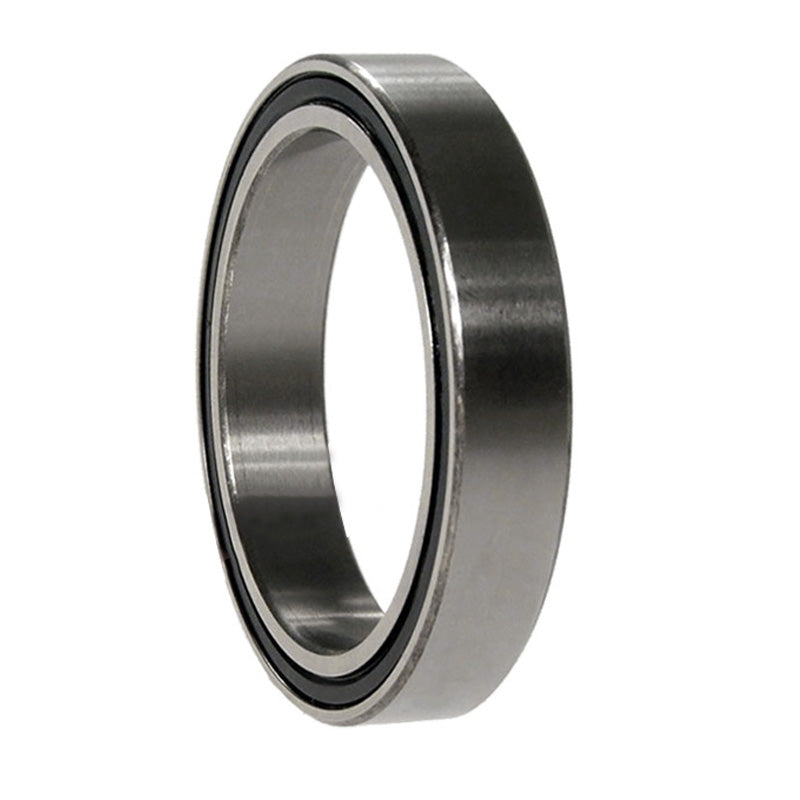

INA 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm
INA 3806B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 30x42x10mm
Regular price
€48,29
ex VAT
Regular price
Sale price
€48,29
ex VAT
Equivalent to: 5806B2RSRTVH
In stock
Price Break
10+
€36,77
19+
€34,71
29+
€34,30
39+
€33,88
49+
€33,47
74+
€33,06
99+
€30,99
199+
€30,58
249+
€30,16
499+
€29,75
999+
€28,92
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5806B2RSRTVH
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 42mm |
| B | 10mm |
| a | 20.2mm |
| d1 max | 39mm |
| Da max | 40mm |
| da min | 32mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.037 kg |
| Dynamic load Cr | 6100 N |
| Static load Cor | 6000 N |
| Fatigue limit load Cur | 315 N |
| Reference speed | 8000 rpm |
| Limiting Speed | 8100 rpm |
