SKU: 46.4MXL-012-58

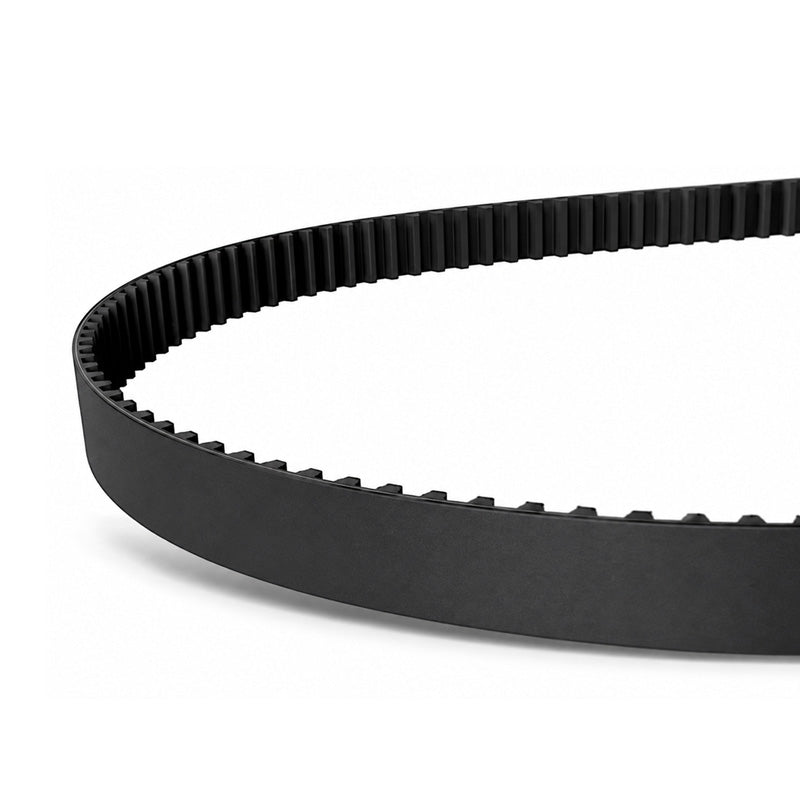

Major Brand 464MXL012 Synchronous Toothed Belt 0.12 inch Wide 4.64 inch Length 58 Teeth
Major Brand 464MXL012 Synchronous Toothed Belt 0.12 inch Wide 4.64 inch Length 58 Teeth
Regular price
€8,06
ex VAT
Regular price
Sale price
€8,06
ex VAT
In stock
Price Break
3+
€6,14
5+
€5,79
10+
€5,72
15+
€5,66
20+
€5,59
30+
€5,52
40+
€5,17
50+
€5,10
60+
€5,04
75+
€4,97
100+
€4,83
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 3.18mm = 1/8 inch
- Belt Depth Approx:
- 1.14mm
- Belt Length Approx:
- 117.86mm = 4.64 inch
- Number of Teeth:
- 58
Technical
Technical
| Belt width | 0.12 inch = 3.18mm |
|---|---|
| Pitch length | 4.64 inch = 117.86mm |
| Number of teeth | 58 |
| Tooth pitch t | 0.08 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.02 inch |
| Pitch zone u | 0.01 inch |
