SKU: 4T-72212C/72487-NTN

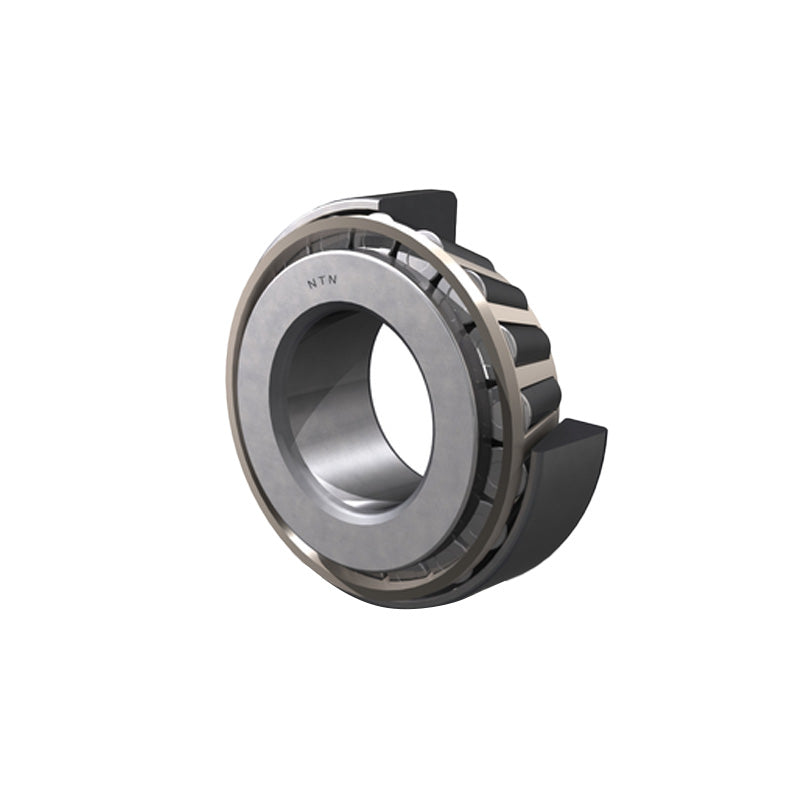

NTN 4T-72212C/72487 Tapered Roller Bearing Cup and Cone Set 2.125x4.875x1.437 inch

NTN 4T-72212C/72487 Tapered Roller Bearing Cup and Cone Set 2.125x4.875x1.437 inch
Regular price €128,73 ex VAT
Regular price Sale price €128,73 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,04
5+ €92,53
10+ €91,43
25+ €90,33
49+ €89,23
74+ €88,13
99+ €82,62
199+ €81,52
249+ €80,42
499+ €79,32
999+ €77,11
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 2.125 inch (53.975mm)
D (inch) 4.875 inch (123.825mm)
T 1.437 inch (36.512mm)
B 1.291 inch (32.791mm)
C 1 inch (25.40mm)
--- Speeds and loads
C<sub>r</sub> 171kN
C<sub>or</sub> 188kN
Speed in grease 2900rpm
Speed in oil 3900rpm
--- Abutment dimensions
d<sub>a</sub> 79mm
d<sub>b</sub> 67mm
D<sub>a</sub> 102mm
D<sub>b</sub> 116mm
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Load center<sup>2</sup> -1.5mm - Indicates a load center at the outside on the end of an inner ring
Constant e 0.74
Axial load factor Y<sub>2</sub> 0.81
Axial load factor Y<sub>0</sub> 0.45
Weight 2.03kg
