SKU: 5/16x2-UNF-SET40

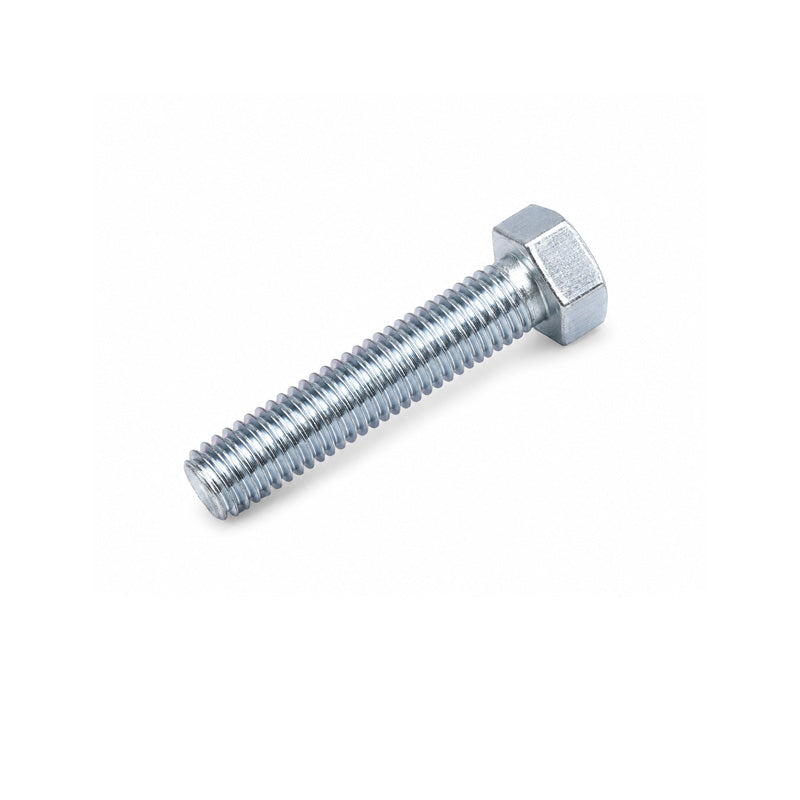

5/16x2 UNF Bright Zinc Plated Set Screw

Name: 5/16x2 UNF Bright Zinc Plated Set Screw
Brand: Gen
SKU: 5/16x2-UNF-SET40
Price: 0.99 EUR
Availability: InStock

€0,99 ex VAT

Sale Sold out

In stock

Price Break

10+ €0,47

20+ €0,36

50+ €0,26

100+ €0,21

500+ €0,17

1000+ €0,13

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Set Screw: A set screw is a type of screw generally used to secure an object within or against another object. The most common examples are securing a pulley or gear to a shaft.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: 5/16x2 UNF
Width of Head:: 12.19mm = 0.48 inch approx.
Depth of Head:: 5.08mm = 0.2 inch approx.
Pitch:: 24 (TPI)

Technical

Width of head (a)	12.19mm = 0.48 inch approx.
Depth of head (d)	5.08mm = 0.2 inch approx.
Head to screw (D)	50.8mm = 2 inch
Overall length (d+D)	Thread diameter (f)
7.93mm = 0.312 (5/16) inch	TPI (Threads Per Inch)
24 TPI	N/A
