SKU: 51105-SKF

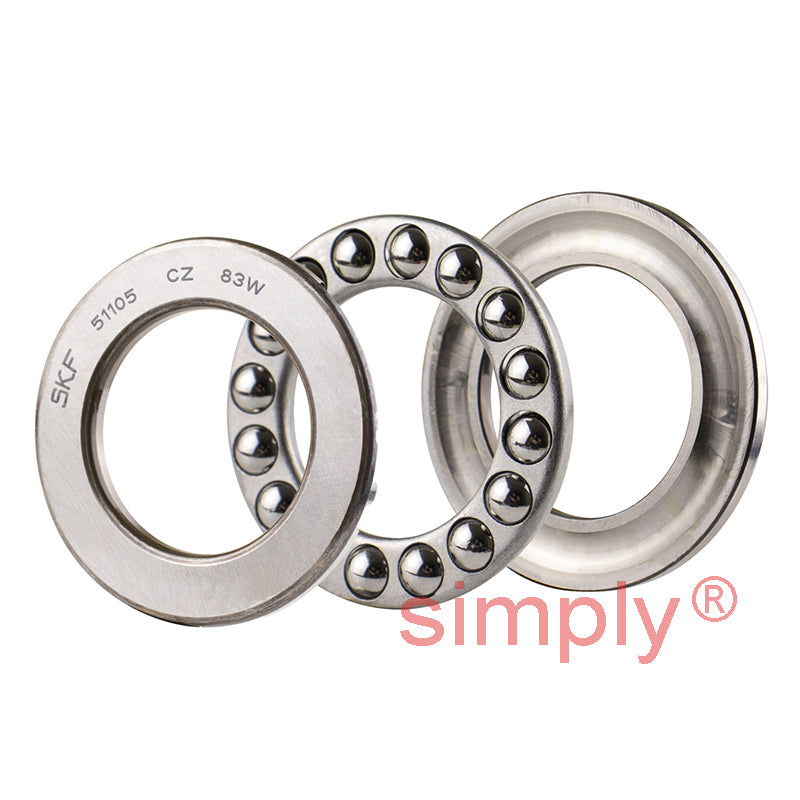

SKF 51105 Single Thrust Ball Bearing 25x42x11mm
SKF 51105 Single Thrust Ball Bearing 25x42x11mm
Regular price
€16,73
ex VAT
Regular price
Sale price
€16,73
ex VAT
In stock
Price Break
10+
€12,74
19+
€12,03
29+
€11,89
39+
€11,74
49+
€11,60
74+
€11,46
99+
€10,74
199+
€10,60
249+
€10,45
499+
€10,31
999+
€10,02
Share this product
Description
Description
|

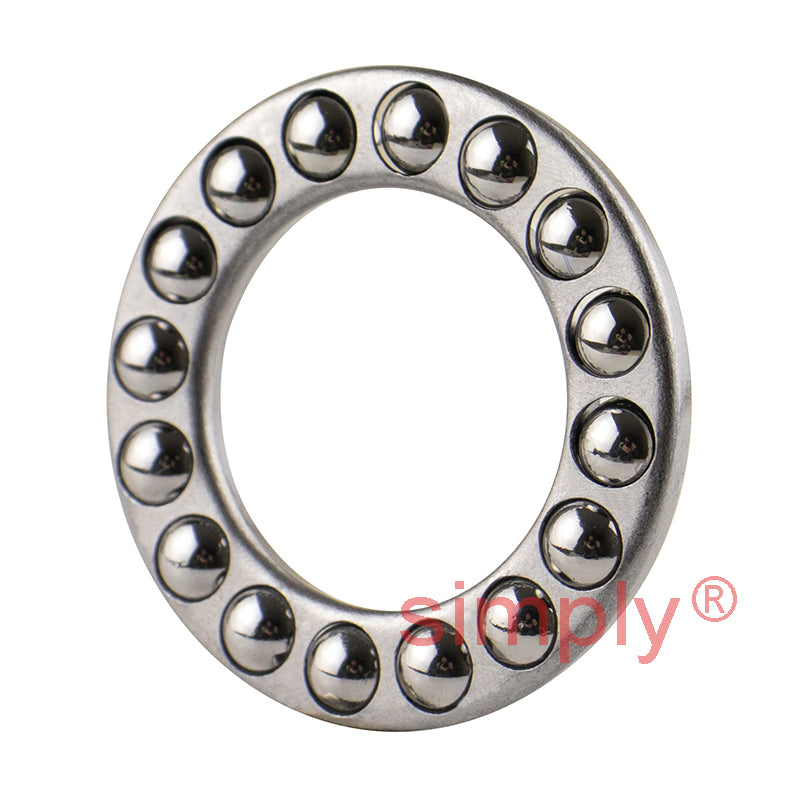

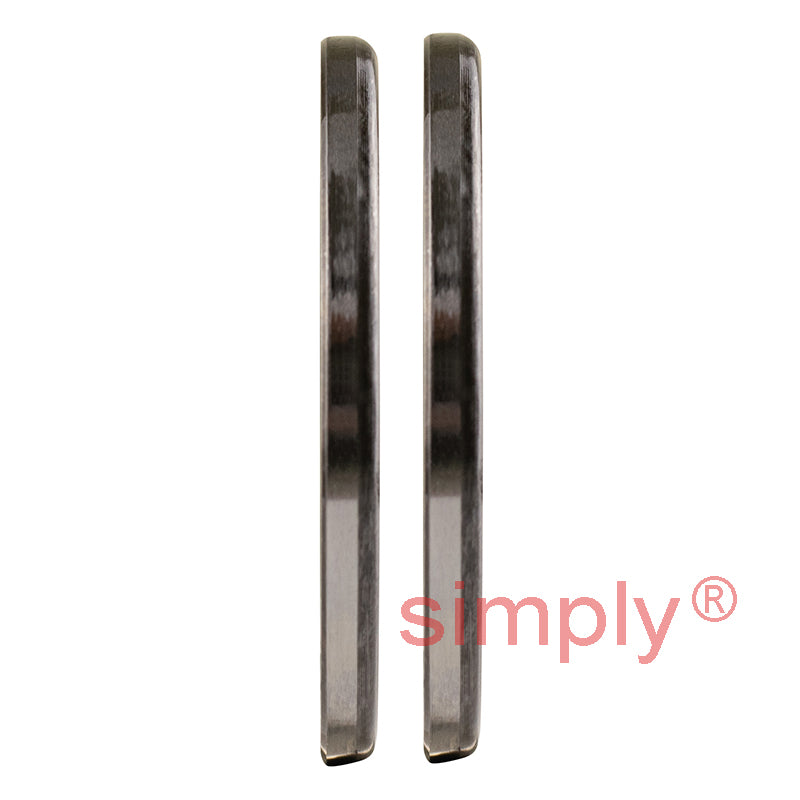

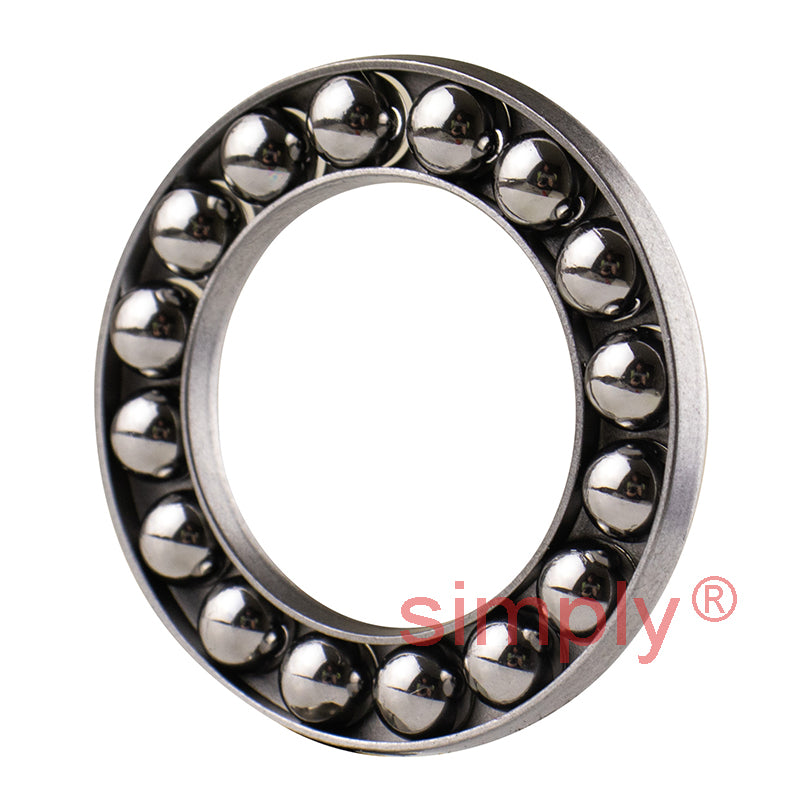

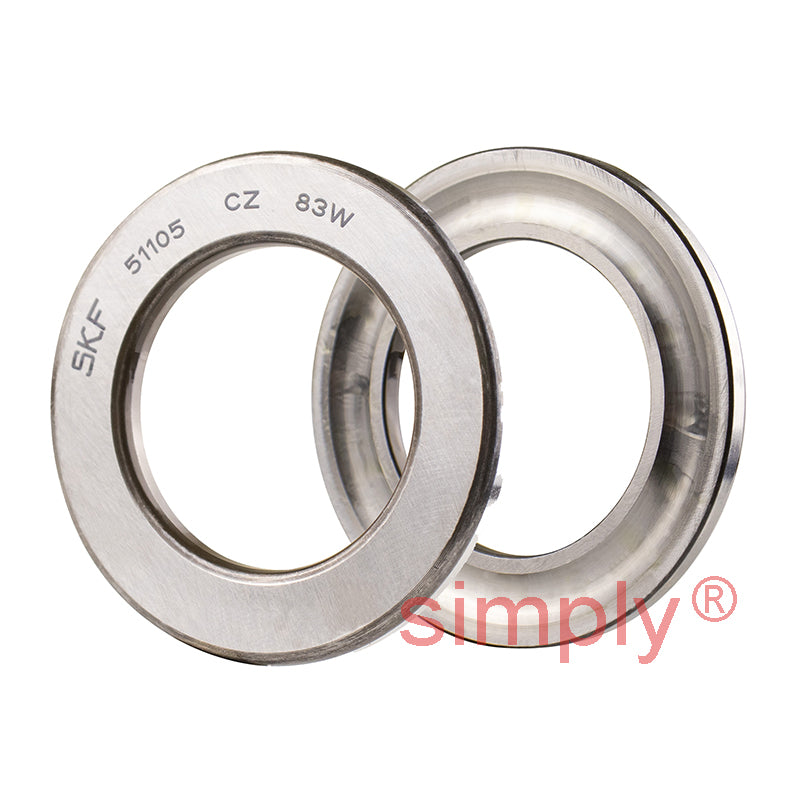

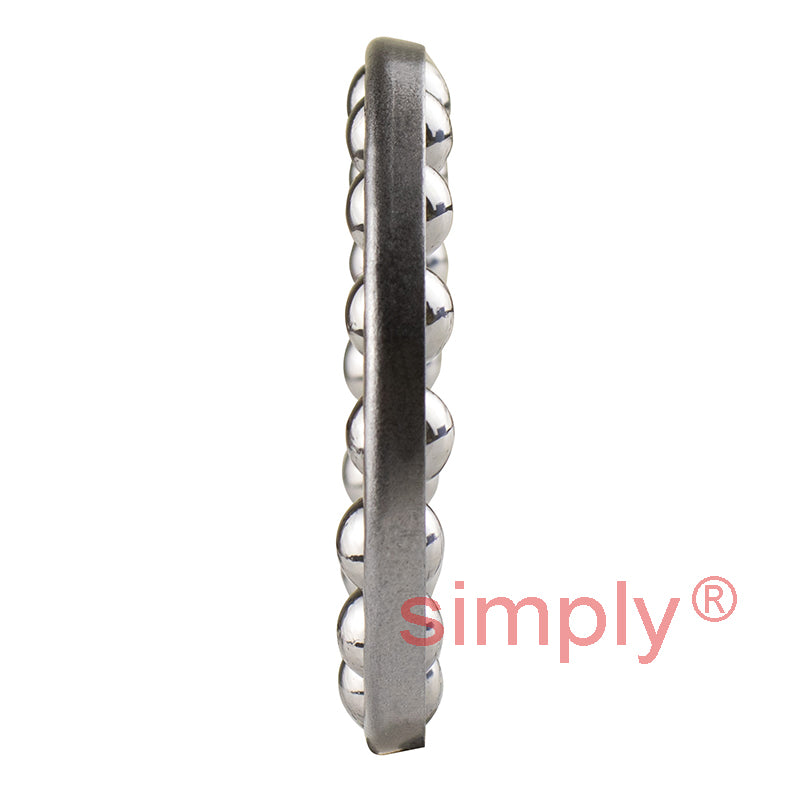

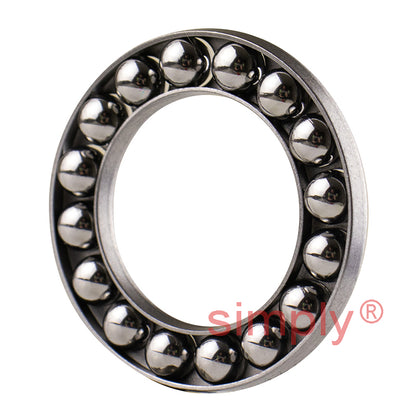

SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 11mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 42mm |
| H | 11mm |
| Dynamic load C | 18.2 kN |
| Static load Co | 39 kN |
| Fatigue load limit Pu | 1.43 kN |
| Minimum load factor A | 0.0079 |
| Reference speed | 6300 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.056 kg |
| d1 | 42mm |
| D1 | 26mm |
| r1r2 min | 0.6mm |
| da min | 35mm |
| Da max | 32mm |
| ra max | 0.6mm |
