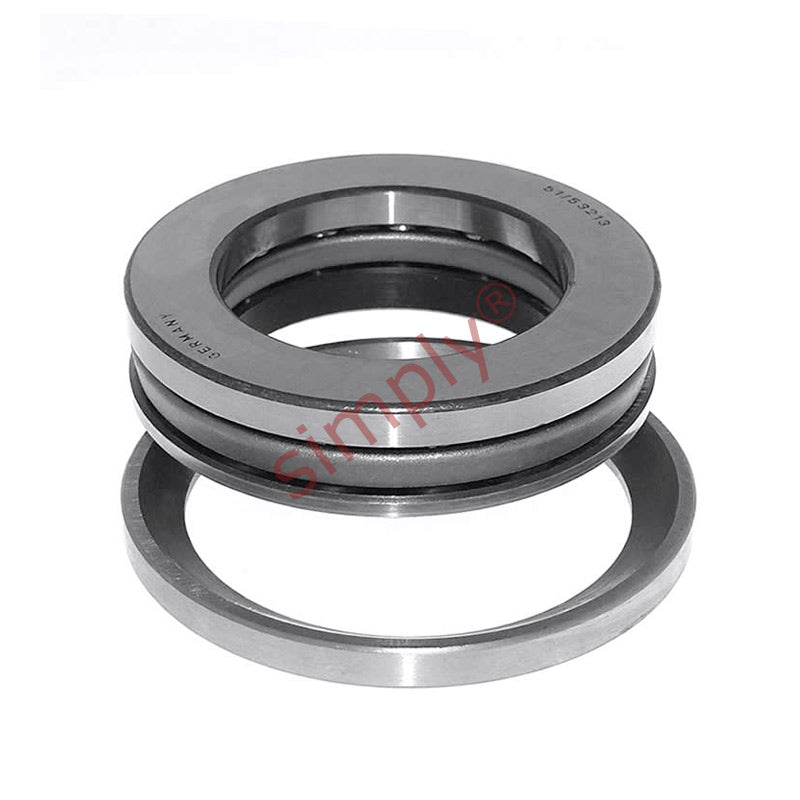

53213 Budget Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
53213 Budget Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
Regular price
€76,03
ex VAT
Regular price
Sale price
€76,03
ex VAT
In stock
Price Break
10+
€57,91
19+
€54,65
29+
€54,00
39+
€53,35
49+
€52,70
74+
€52,05
99+
€48,80
199+
€48,15
249+
€47,50
499+
€46,85
999+
€45,54
Share this product
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 32mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| H1 | 32mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 163 kN |
| Fatigue load limit Pu | 6 kN |
| Minimum load factor A | 0.14 |
| Reference speed | 2600 rpm |
| Limiting Speed | 3600 rpm |
| Weight | 0.91 kg |
| Seating Washer | U213 |
| d1 | 100mm |
| D1 | 67mm |
| D2 | 82mm |
| D3 | 105mm |
| H | 28.7mm |
| C | 9mm |
| R | 80mm |
| s | 40mm |
| r1r2 min | 1mm |
| da max | 86mm |
| Da max | 82mm |
| ra max | 1mm |
