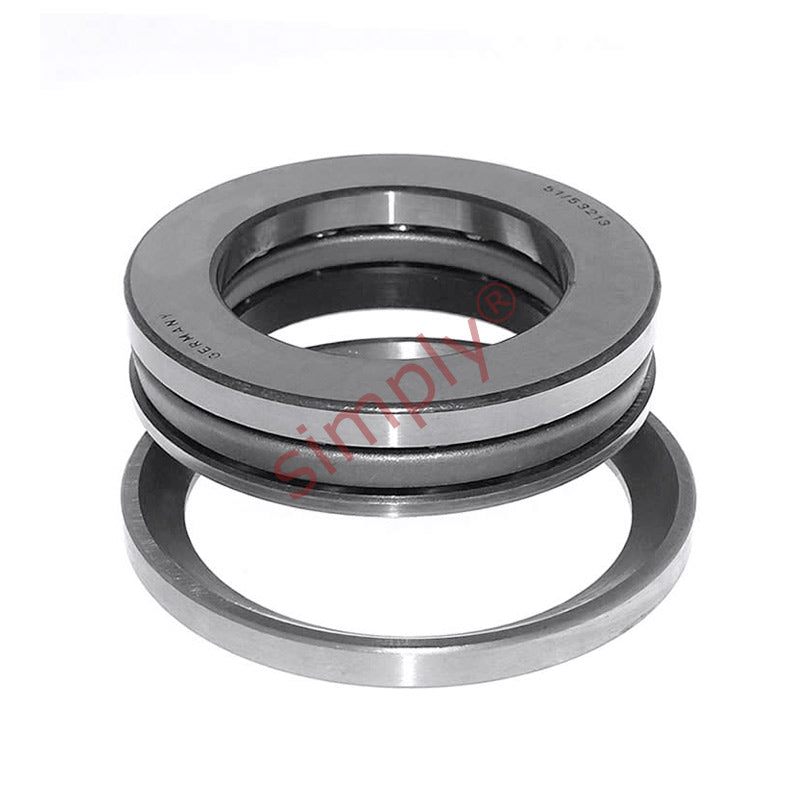

SKF 53216 Single Thrust Ball Bearing with Spherical Housing Seat U216 80x115x33mm
SKF 53216 Single Thrust Ball Bearing with Spherical Housing Seat U216 80x115x33mm
Regular price
€267,16
ex VAT
Regular price
Sale price
€267,16
ex VAT
In stock
Price Break
10+
€203,47
19+
€192,04
29+
€189,75
39+
€187,47
49+
€185,18
74+
€182,89
99+
€171,46
199+
€169,18
249+
€166,89
499+
€164,61
999+
€160,03
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 115mm
- Width:
- 33mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 115mm |
| H1 | 33mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 7.65 kN |
| Minimum load factor A | 0.22 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 1.1 kg |
| Seating washer | U216 |
| d1 | 115mm |
| D1 | 82mm |
| D2 | 98mm |
| D3 | 120mm |
| H | 29.5mm |
| C | 10mm |
| R | 90mm |
| s | 46mm |
| r1r2 min | 1mm |
| da max | 101mm |
| Da max | 98mm |
| ra max | 1mm |
