SKU: 53222?EU

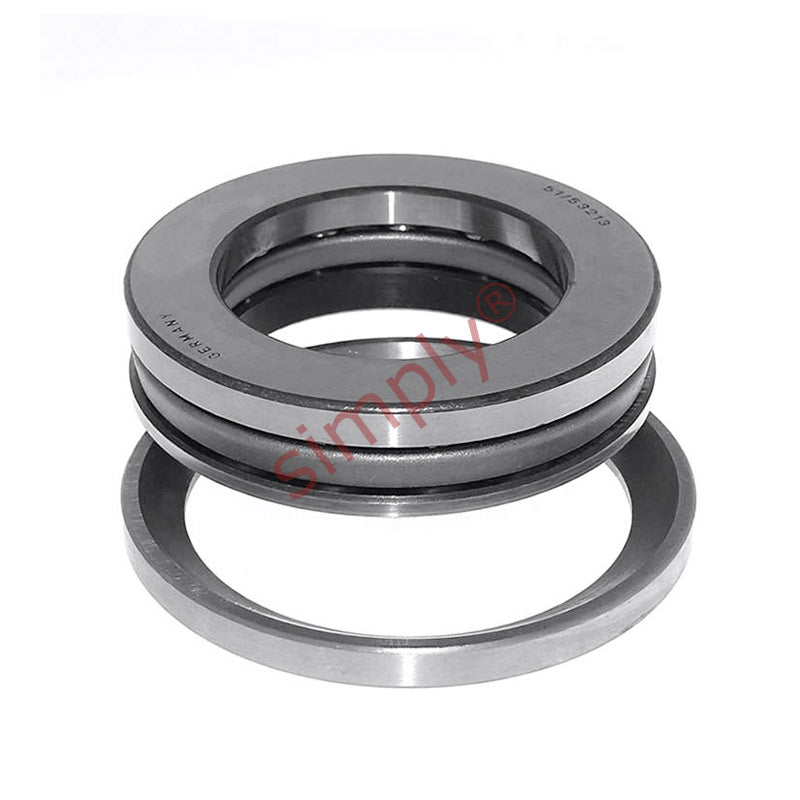

53222 Budget Single Thrust Ball Bearing with Spherical Housing Seat U222 110x160x45mm
53222 Budget Single Thrust Ball Bearing with Spherical Housing Seat U222 110x160x45mm
Regular price
€233,94
ex VAT
Regular price
Sale price
€233,94
ex VAT
In stock
Price Break
10+
€208,21
19+
€196,51
29+
€194,17
39+
€191,83
49+
€189,49
74+
€187,15
99+
€175,46
199+
€173,12
249+
€170,78
499+
€168,44
999+
€163,76
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 160mm
- Width:
- 45mm
Technical
Technical
| d | 110mm |
|---|---|
| D | 160mm |
| H1 | 45mm |
| Dynamic load C | 130 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 12.5 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1700 rpm |
| Limiting Speed | 2400 rpm |
| Weight | 2.91 kg |
| Seating Washer | U222 |
| d1 | 160mm |
| D1 | 113mm |
| D2 | 135mm |
| D3 | 165mm |
| H | 40.2mm |
| C | 14mm |
| R | 125mm |
| s | 65mm |
| r1r2 min | 1.1mm |
| da max | 140mm |
| Da max | 135mm |
| ra max | 1mm |
